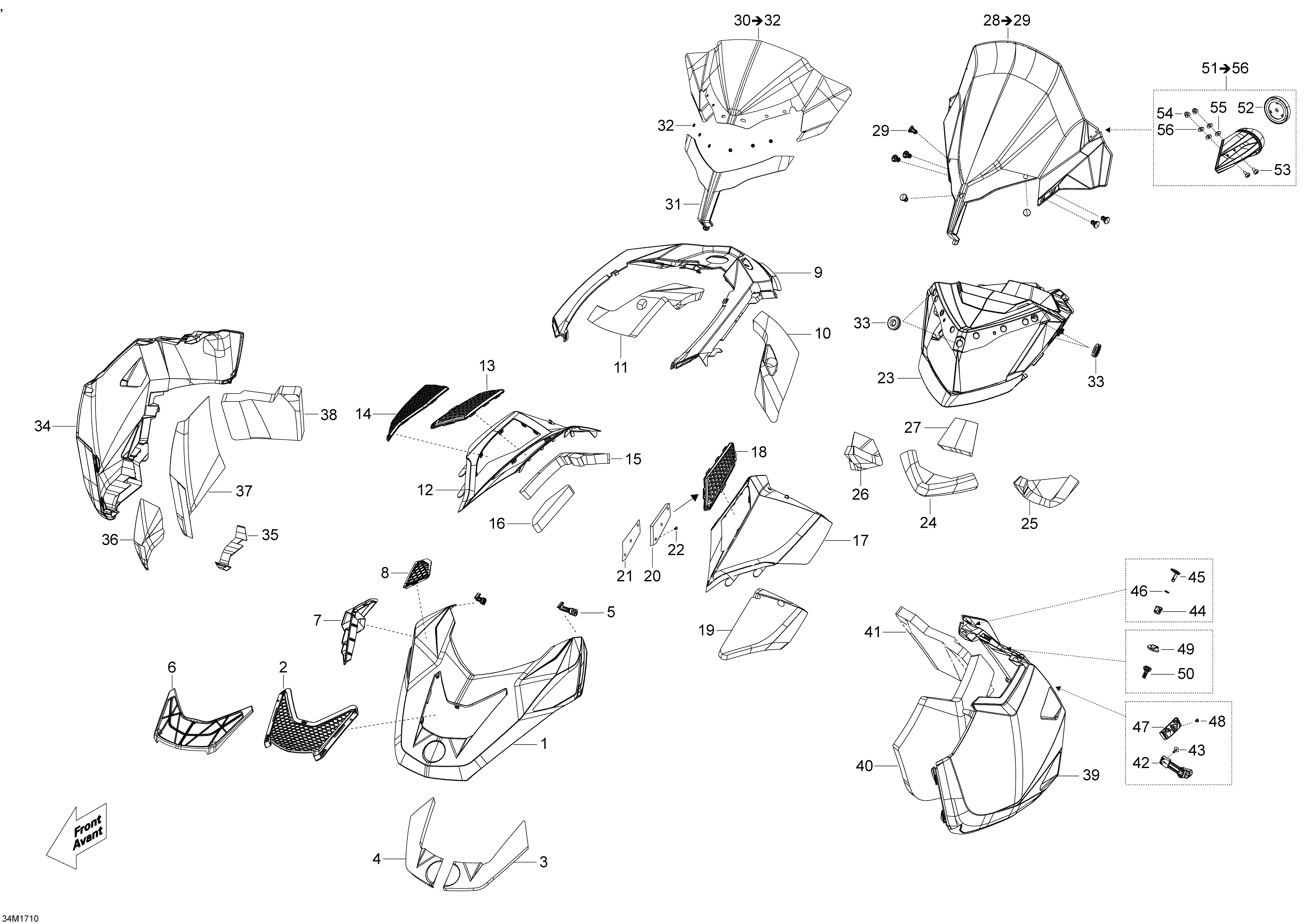

09- Hood для BRP Ski-Doo EXPEDITION - 2-STROKE - LE-SE-XTREME - 2017

  • №
    Артикул
    Название
  • 1
    517304812 Black Hood. Model LE
    Black Hood. Model LE
  • 1
    517305440 Gray Hood. Model SE
    Gray Hood. Model SE
  • 1
    517305818 Black Hood. Model Extreme
    Black Hood. Model Extreme
  • 2
    517304843 Hood Grill
    Hood Grill
  • 3
    517304330 Insulator LH
    Insulator LH
  • 4
    517304214 Insulator RH
    Insulator RH
  • 5
    517304289 Latch Pannel
    Latch Pannel
  • 6
    517305553 Hood Grill With Mesh. Model Extreme
    Hood Grill With Mesh. Model Extreme
  • 7
    517304155 Scoop Grill. Model LE, SE
    Scoop Grill. Model LE, SE
  • 7
    517304855 Intake Grill. Model Extreme
    Intake Grill. Model Extreme
  • 8
    517304584 Intake Grill. Model Extreme
    Intake Grill. Model Extreme
  • 9
    517305220 Black Console. Model LE, SE
    Black Console. Model LE, SE
  • 9
    517304820 Black Console. Model Extreme
    Black Console. Model Extreme
  • 10
    517305644 Insulator
    Insulator
  • 11
    517304318 Insulator
    Insulator
  • 12
    517304829 Black Side Access Panel RH. Model LE, Extreme
    Black Side Access Panel RH. Model LE, Extreme
  • 12
    517305446 Gray RH Side Access Panel. Model SE
    Gray RH Side Access Panel. Model SE
  • 13
    517304015 RH Access Panel Grill
    RH Access Panel Grill
  • 14
    517304016 RH Lower Acces Grill
    RH Lower Acces Grill
  • 15
    517304311 Insulator
    Insulator
  • 16
    517305987 Insulator
    Insulator
  • 17
    517304839 Black Side Access Panel LH. Model LE, Extreme
    Black Side Access Panel LH. Model LE, Extreme
  • 17
    517305450 Gray LH Side Access Panel. Model SE
    Gray LH Side Access Panel. Model SE
  • 18
    517303893 LH Access Panel Grill
    LH Access Panel Grill
  • 19
    517304313 Insulator
    Insulator
  • 20
    517305311 Insulator
    Insulator
  • 21
    502007312 Grill plate
    Grill plate
  • 22
    414644300 Dart
    Dart
  • 23
    517304272 Indicator Support
    Indicator Support
  • 24
    517304314 Insulator
    Insulator
  • 25
    517304315 Insulator
    Insulator
  • 26
    517304316 Insulator
    Insulator
  • 27
    517304319 Insulator
    Insulator
  • 28
    860201000 Windshield Ass'y. Model LE, SE. Includes 28 To 29
    Windshield Ass'y. Model LE, SE. Includes 28 To 29
  • 29
    517304744 Button. Model LE, SE
    Button. Model LE, SE
  • 29
    517304744 Button. Model Extreme
    Button. Model Extreme
  • 30
    517305098 Windshield (355) Ass'y. Model Extreme. Includes 30 To 32
    Windshield (355) Ass'y. Model Extreme. Includes 30 To 32
  • 31
    517304712 Windshield Support
    Windshield Support
  • 32
    732610072 Push Nut
    Push Nut
  • 33
    517303756 Grommet. Model LE, SE
    Grommet. Model LE, SE
  • 33
    517303756 Grommet. Model Extreme
    Grommet. Model Extreme
  • 34
    517304866 Black RH Side Pannel
    Black RH Side Pannel
  • 35
    517304215 Aluminium Foil
    Aluminium Foil
  • 36
    517304216 Aluminium Foil
    Aluminium Foil
  • 37
    517303890 RH Foam
    RH Foam
  • 38
    517304310 RH Rear Foam
    RH Rear Foam
  • 39
    517304869 Black LH Side Panel. Model LE, SE
    Black LH Side Panel. Model LE, SE
  • 39
    517305533 Black LH Side Panel. Model Extreme
    Black LH Side Panel. Model Extreme
  • 40
    517303891 LH Foam
    LH Foam
  • 41
    517304309 LH Rear Foam
    LH Rear Foam
  • 42
    517304572 Latch-Panel
    Latch-Panel
  • 43
    293150108 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 44
    517304297 Handle Fastener Quarter-Turn
    Handle Fastener Quarter-Turn
  • 45
    517304296 Quarter-Turn Handle
    Quarter-Turn Handle
  • 46
    517304538 Locking Plate
    Locking Plate
  • 47
    517304497 Side Panel Support
    Side Panel Support
  • 48
    293150211 Rivet
    Rivet
  • 49
    517304075 End Piece Latch
    End Piece Latch
  • 50
    517306057 Latch-Panel
    Latch-Panel
  • 51
    517305787 RH/LH Mirror Ass'y. Model LE, SE. Includes 51 To 56
    RH/LH Mirror Ass'y. Model LE, SE. Includes 51 To 56
  • 53
    250000721 Torx Screw
    Torx Screw
  • 54
    232361493 Domed Nut M6
    Domed Nut M6
  • 55
    250200024 Rubber Washer 5 mm
    Rubber Washer 5 mm
  • 56
    20117 Washer
    Washer
