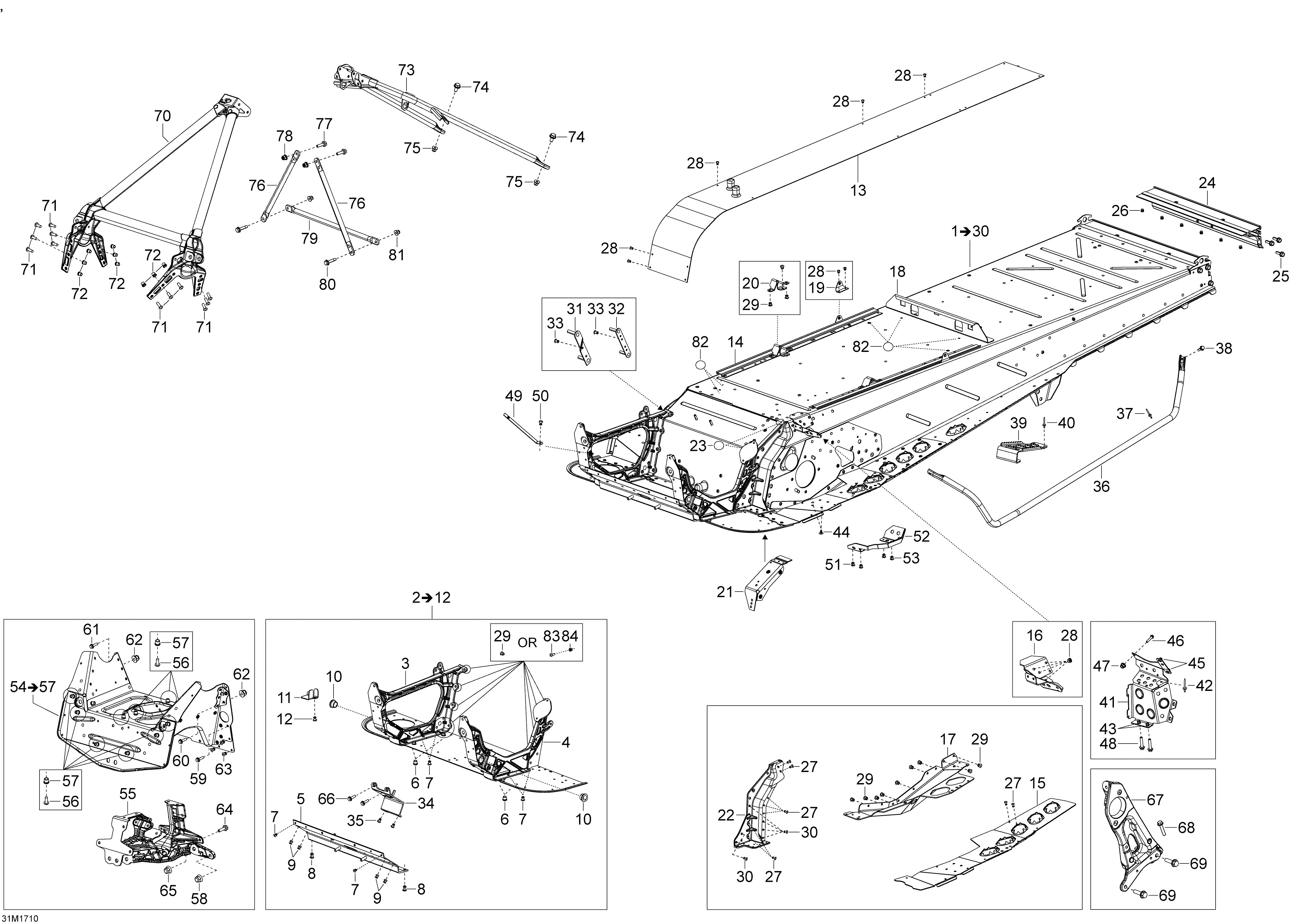

09- Frame для BRP Ski-Doo EXPEDITION - 2-STROKE - LE-SE-XTREME - 2017

№

Артикул

Название
1

518329390 Black Frame. Model LE, SE. Includes 1 To 30

Black Frame. Model LE, SE. Includes 1 To 30
1

518329394 Black Frame. Model Extreme. Includes 1 To 30

Black Frame. Model Extreme. Includes 1 To 30
2

518328813 Module E. Includes 2 To 12

Module E. Includes 2 To 12
3

518326795 RH Member

RH Member
4

518326796 LH Member

LH Member
5

518326198 Front Member

Front Member
6

605636002 Clinch Nut Hexsert M8

Clinch Nut Hexsert M8
7

390909100 Avex Rivet

Avex Rivet
8

293150120 Hemlock Rivet 6.5 mm

Hemlock Rivet 6.5 mm
9

293150119 Hemlock Rivet, 6.5 mm

Hemlock Rivet, 6.5 mm
10

505072690 Leg Bushing

Leg Bushing
11

518328194 Muffler Support

Muffler Support
12

293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GAT

Rivet Hucklok 4,8 mm HKLP-R6-5GAT
13

509000976 Tunnel Radiator

Tunnel Radiator
14

518326107 Fastening rail

Fastening rail
15

518328821 Footrest LH. Model LE, SE

Footrest LH. Model LE, SE
15

518328332 Footrest LH. Model Extreme

Footrest LH. Model Extreme
15

518328822 Footrest RH. Model LE, SE

Footrest RH. Model LE, SE
15

518328333 Footrest RH. Model Extreme

Footrest RH. Model Extreme
16

605355235 Fastening Bracket

Fastening Bracket
17

518328016 LH Drive Axle Cover

LH Drive Axle Cover
17

518328017 RH Drive Axle Cover

RH Drive Axle Cover
18

518325986 Battery support plate

Battery support plate
19

518329164 Seat Box Bracket

Seat Box Bracket
20

518326109 Support Tube Bracket LH

Support Tube Bracket LH
20

518326110 Support Tube Bracket RH

Support Tube Bracket RH
21

518326430 Clinch nut plate

Clinch nut plate
22

518325524 Frame Corner LH

Frame Corner LH
22

518328024 Frame Corner RH

Frame Corner RH
23

518325560 Adhesive Patch

Adhesive Patch
24

518328748 Rear Profile

Rear Profile
25

207582586 Hex. Flanged Screw M8 X 25, Scotch Grip

Hex. Flanged Screw M8 X 25, Scotch Grip
26

293150174 Hemlock Rivet, 6.4 mm

Hemlock Rivet, 6.4 mm
27

390909100 Avex Rivet

Avex Rivet
28

390909200 Avex Rivet

Avex Rivet
29

293150119 Hemlock Rivet, 6.5 mm

Hemlock Rivet, 6.5 mm
30

293150183 Rivet

Rivet
31

518326123 Gearbox Front Plate

Gearbox Front Plate
32

518326124 Gearbox Rear Plate

Gearbox Rear Plate
33

390402200 Pop Rivet 3/16''

Pop Rivet 3/16''
34

518325943 MAG Engine Support

MAG Engine Support
35

293150119 Hemlock Rivet, 6.5 mm

Hemlock Rivet, 6.5 mm
36

518326963 Footboard Support Tube, LH

Footboard Support Tube, LH
36

518326964 Footboard Support Tube, RH

Footboard Support Tube, RH
37

390909100 Avex Rivet

Avex Rivet
38

207662056 Screw Hex. Flange M6 x 20

Screw Hex. Flange M6 x 20
39

520001208 Black Rear Footrest. Model LE, SE

Black Rear Footrest. Model LE, SE
40

293150102 Rivet 3/16''. Model LE, SE

Rivet 3/16''. Model LE, SE
41

518327375 Toe hold L.H.. Model SE

Toe hold L.H.. Model SE
41

518327374 Black LH Toe Hook. Model LE, Extreme

Black LH Toe Hook. Model LE, Extreme
41

518327376 Black RH Toe Hook

Black RH Toe Hook
42

390909200 Avex Rivet

Avex Rivet
43

605636003 Clinch Nut M6 Hexsert

Clinch Nut M6 Hexsert
44

414644300 Dart. Model LE

Dart. Model LE
45

605636003 Clinch Nut M6 Hexsert

Clinch Nut M6 Hexsert
46

207662056 Screw Hex. Flange M6 x 20

Screw Hex. Flange M6 x 20
47

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
48

250000717 Torx Head Screw M6 X 16

Torx Head Screw M6 X 16
49

514054846 Spring Bracket

Spring Bracket
50

390909200 Avex Rivet

Avex Rivet
51

390909200 Avex Rivet. Model North America

Avex Rivet. Model North America
51

390909200 Avex Rivet. Model Europe

Avex Rivet. Model Europe
52

518326566 Pulley Cover Plate. Model North America

Pulley Cover Plate. Model North America
53

293150104 Pop Rivet 3/16''. Model North America

Pop Rivet 3/16''. Model North America
54

518328392 Cross Member. Model LE, Extreme. Includes 54 To 57

Cross Member. Model LE, Extreme. Includes 54 To 57
54

518328396 Cross Member. Model SE. Includes 54 To 57

Cross Member. Model SE. Includes 54 To 57
55

518327487 Front Suspension Support

Front Suspension Support
56

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20
57

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
58

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8
59

210262050 Washer Head Hexagonal Screw

Washer Head Hexagonal Screw
60

207662544 Hex. Flanged Screw M6 X 25

Hex. Flanged Screw M6 X 25
61

207563034 Hex. Flanged Screw M6 X 30, Scotch Grip

Hex. Flanged Screw M6 X 30, Scotch Grip
62

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
63

293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GAT

Rivet Hucklok 4,8 mm HKLP-R6-5GAT
64

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20
65

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
66

207661644 Hex. Flanged Screw M6 X 16

Hex. Flanged Screw M6 X 16
67

518328434 Pulley Support

Pulley Support
68

207582586 Hex. Flanged Screw M8 X 25, Scotch Grip

Hex. Flanged Screw M8 X 25, Scotch Grip
69

207583086 Flanged Hex. Screw M8 X 30, Scotch Grip

Flanged Hex. Screw M8 X 30, Scotch Grip
70

518326970 Front Member

Front Member
71

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20
72

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
73

518329105 Upper Support Tube

Upper Support Tube
74

207182044 Hex. Screw M8 X 20

Hex. Screw M8 X 20
75

232581414 Hex. Elastic Stop Nut M8

Hex. Elastic Stop Nut M8
76

518325114 Upper Column Support

Upper Column Support
77

207662056 Screw Hex. Flange M6 x 20

Screw Hex. Flange M6 x 20
78

233261416 Elastic Flanged Nut M6

Elastic Flanged Nut M6
79

518325115 Center Column Support

Center Column Support
80

207662556 Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 25
81

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
82

518325560 Adhesive Patch

Adhesive Patch
83

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20
84

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
