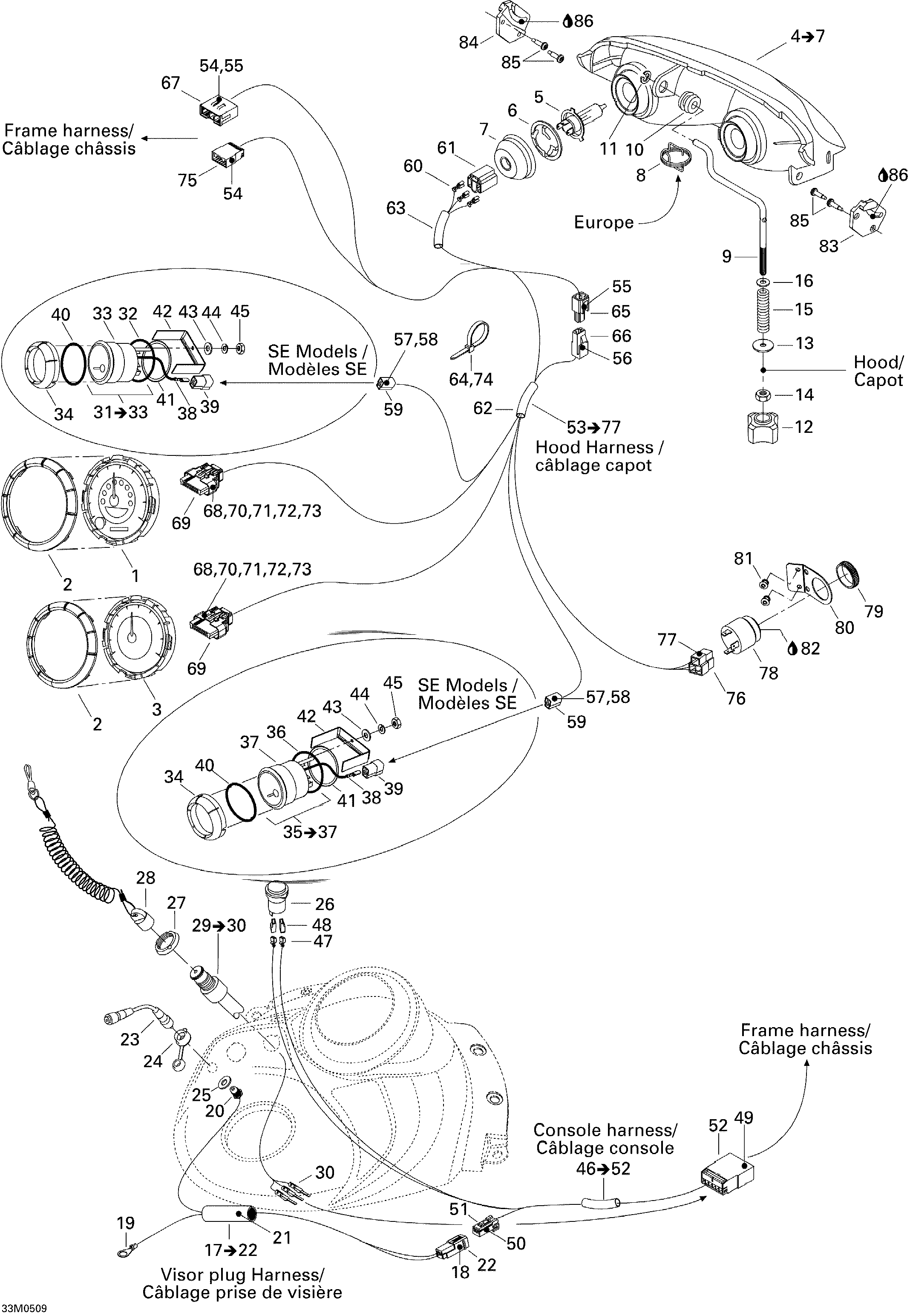

10- Electrical System для BRP Ski-Doo Legend V-1000 - 2005

  • №
    Артикул
    Название
  • 1
    515176244 Speedometer
    Speedometer
  • 2
    515176242 Gauge Ring
    Gauge Ring
  • 3
    515176275 Tachometer
    Tachometer
  • 4
    515176273 Halogen Headlamp. Includes 4 to 7
    Halogen Headlamp. Includes 4 to 7
  • 5
    515176274 Halogen Bulb (60/55 W, 12 V)
    Halogen Bulb (60/55 W, 12 V)
  • 6
    515175910 Bulb Holder
    Bulb Holder
  • 7
    515175911 Cover
    Cover
  • 8
    515175324 Spring. Europe
    Spring. Europe
  • 9
    515175920 Adjuster Rod
    Adjuster Rod
  • 10
    415100800 Grommet
    Grommet
  • 11
    732610072 Push Nut
    Push Nut
  • 12
    515175548 Handle
    Handle
  • 13
    224060251 Washer
    Washer
  • 14
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 15
    415100600 Spring
    Spring
  • 16
    234061410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 17
    515175964 Visor Plug Harness. Includes items 17 to 22
    Visor Plug Harness. Includes items 17 to 22
  • 18
    515175232 Male Terminal
    Male Terminal
  • 19
    515175172 Open Barrel
    Open Barrel
  • 20
    415096100 Visor Plug
    Visor Plug
  • 21
    293740005 Vinyl Tape 3/4''
    Vinyl Tape 3/4''
  • 22
    515175654 Male Terminal Housing (2 Circuits)
    Male Terminal Housing (2 Circuits)
  • 23
    515175971 Extension
    Extension
  • 24
    572103300 Cap
    Cap
  • 25
    503175800 Washer
    Washer
  • 26
    861507200 Power Outlet Kit (12 Volts). SE Models
    Power Outlet Kit (12 Volts). SE Models
  • 27
    278000508 Nut
    Nut
  • 28
    515166900 Dess Cap
    Dess Cap
  • 29
    515175913 Dess Switch. Includes items 29 to 30
    Dess Switch. Includes items 29 to 30
  • 30
    515175232 Male Terminal
    Male Terminal
  • 31
    515175601 Temperature Gauge. SE Models / Includes 31 to 33
    Temperature Gauge. SE Models / Includes 31 to 33
  • 32
    414807200 O-Ring. SE Models
    O-Ring. SE Models
  • 33
    414806600 Case Holder. SE Models
    Case Holder. SE Models
  • 34
    515175711 Ring Gauge. SE Models
    Ring Gauge. SE Models
  • 35
    515175529 Fuel Gauge. SE Models / Includes 35 to 37
    Fuel Gauge. SE Models / Includes 35 to 37
  • 36
    414807200 O-Ring. SE Models
    O-Ring. SE Models
  • 37
    414806600 Case Holder. SE Models
    Case Holder. SE Models
  • 38
    409210000 Male Terminal. SE Models
    Male Terminal. SE Models
  • 39
    409204200 Male Terminal Housing (3 Circuits). SE Models
    Male Terminal Housing (3 Circuits). SE Models
  • 40
    414807200 O-Ring. SE Models
    O-Ring. SE Models
  • 41
    517258600 Washer. SE Models
    Washer. SE Models
  • 42
    414806600 Case Holder. SE Models
    Case Holder. SE Models
  • 43
    391301700 Flat Washer. SE Models
    Flat Washer. SE Models
  • 44
    414833700 Lock Washer. SE Models
    Lock Washer. SE Models
  • 45
    414833600 Nut. SE Models
    Nut. SE Models
  • 46
    515176028 Console Harness. Includes 46 to 52
    Console Harness. Includes 46 to 52
  • 47
    409010600 Female Terminal
    Female Terminal
  • 48
    409010400 Female Terminal Housing (1 Circuit)
    Female Terminal Housing (1 Circuit)
  • 49
    515175232 Male Terminal
    Male Terminal
  • 50
    515175231 Female Terminal
    Female Terminal
  • 51
    515175658 Female Terminal Housing (2 Circuits)
    Female Terminal Housing (2 Circuits)
  • 52
    515175662 Male Terminal Housing (6 Circuits)
    Male Terminal Housing (6 Circuits)
  • 53
    515175984 Cab Wiring Harness. Includes 53 to 77
    Cab Wiring Harness. Includes 53 to 77
  • 54
    515175232 Male Terminal
    Male Terminal
  • 55
    515175273 Male Terminal
    Male Terminal
  • 56
    515175282 Female Terminal
    Female Terminal
  • 57
    561503100 Female Terminal
    Female Terminal
  • 58
    561503100 Female Terminal
    Female Terminal
  • 59
    409204300 Female Terminal Housing (3 Circuits)
    Female Terminal Housing (3 Circuits)
  • 60
    515175321 Female Terminal
    Female Terminal
  • 61
    409202700 Female Terminal Housing (3 Circuits)
    Female Terminal Housing (3 Circuits)
  • 62
    415080000 Tubing 16 mm
    Tubing 16 mm
  • 63
    415079900 Tubing 10 mm
    Tubing 10 mm
  • 64
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 65
    515175509 Male Terminal Housing (1 Circuit)
    Male Terminal Housing (1 Circuit)
  • 66
    515175510 Female Terminal Housing (1 Circuit)
    Female Terminal Housing (1 Circuit)
  • 67
    515175720 Male Terminal Housing (11 Circuits)
    Male Terminal Housing (11 Circuits)
  • 68
    515175812 Plug
    Plug
  • 69
    515175801 Female Terminal Housing (24 Circuits)
    Female Terminal Housing (24 Circuits)
  • 70
    515175802 Retainer
    Retainer
  • 71
    515175803 Wire Seal
    Wire Seal
  • 72
    515175804 Block
    Block
  • 73
    515175806 Female Terminal
    Female Terminal
  • 74
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 75
    415128526 Male Terminal Housing (10 Circuits)
    Male Terminal Housing (10 Circuits)
  • 76
    515176069 Male Terminal Housing (3 Circuits)
    Male Terminal Housing (3 Circuits)
  • 77
    515176071 Female Terminal
    Female Terminal
  • 78
    515176035 Horn
    Horn
  • 79
    414805101 Plastic Nut
    Plastic Nut
  • 80
    515175688 Plate
    Plate
  • 81
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 82
    296000309 Sealant Silicone, Clear
    Sealant Silicone, Clear
  • 83
    517289300 RH Support
    RH Support
  • 84
    517289400 LH Support
    LH Support
  • 85
    732601315 Headlamp Screw
    Headlamp Screw
  • 86
    413707500 Grease Tube Lmz, 400 G
    Grease Tube Lmz, 400 G
