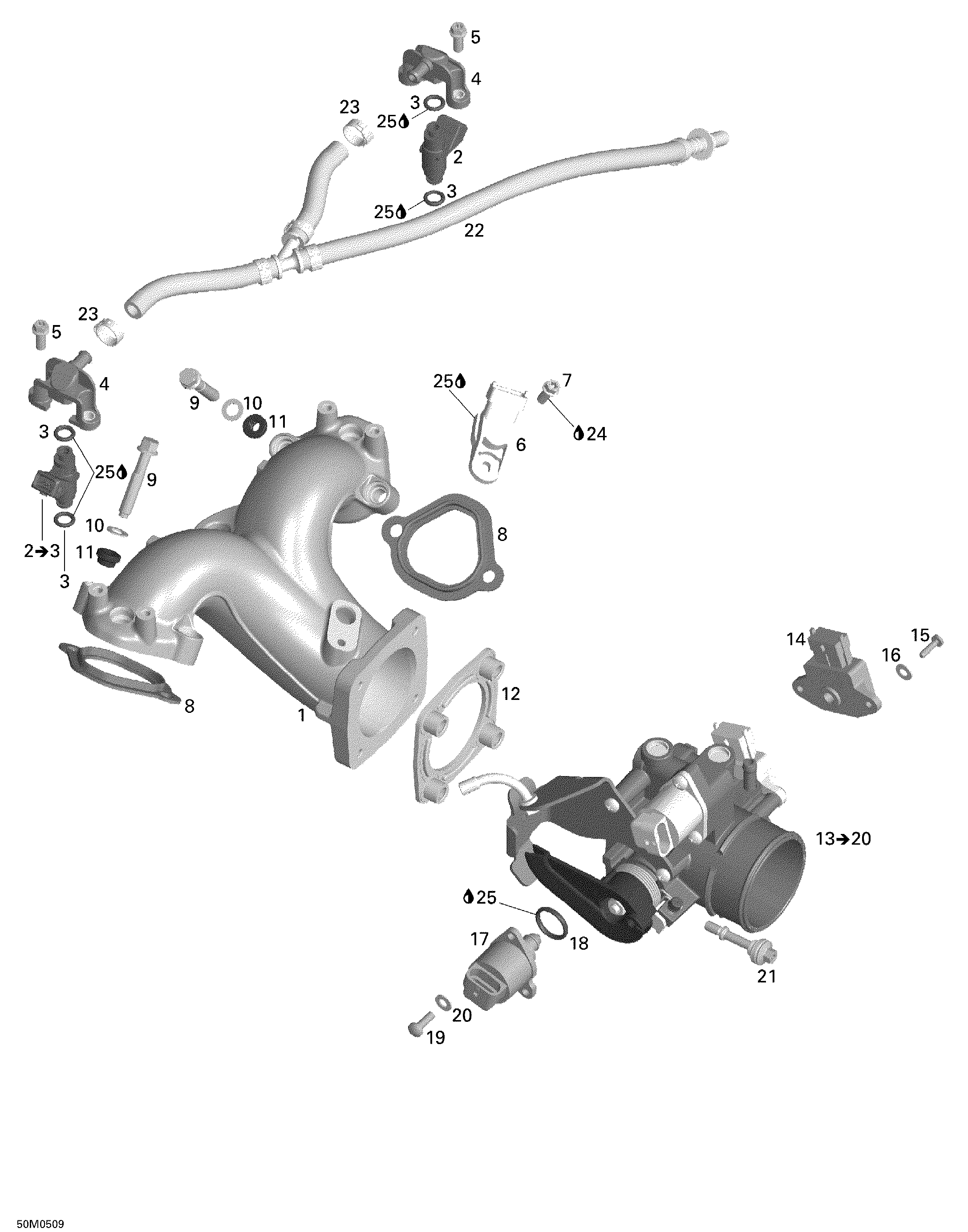

02- Air Inlet Manifold and Throttle Body для BRP Ski-Doo Legend V-1000 - 2005

№

Артикул

Название
1

420867940 Air Inlet Manifold

Air Inlet Manifold
2

420874402 Injection Valve. Includes 2 to 3

Injection Valve. Includes 2 to 3
3

420631220 O-Ring

O-Ring
4

420874410 Fuel Rail

Fuel Rail
5

420440162 Hex Flanged Screw M6 X 16

Hex Flanged Screw M6 X 16
6

420274055 Temperature Sensor

Temperature Sensor
7

420440162 Hex Flanged Screw M6 X 16

Hex Flanged Screw M6 X 16
8

420950690 Gasket

Gasket
9

420440472 Screw M8 X 45

Screw M8 X 45
10

420944038 Washer

Washer
11

420660190 Rubber Sleeve

Rubber Sleeve
12

420950792 Rubber Gasket

Rubber Gasket
13

420888901 Throttle Body Ass'Y. Includes 13 to 20

Throttle Body Ass'Y. Includes 13 to 20
14

270000251 Position Sensor

Position Sensor
15

208641660 Screw

Screw
16

234042600 Washer

Washer
17

420963055 Idle Bypass Valve

Idle Bypass Valve
18

420631780 O-Ring

O-Ring
19

420440911 Binding Head Screw M5 X 16

Binding Head Screw M5 X 16
20

420845710 Snap Ring

Snap Ring
21

420440307 Hex Flanged Screw M6 X 30

Hex Flanged Screw M6 X 30
22

420874562 Fuel Hose

Fuel Hose
23

420851458 Clamp

Clamp
24

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml
25

293550030 Grease, Super Lube

Grease, Super Lube
