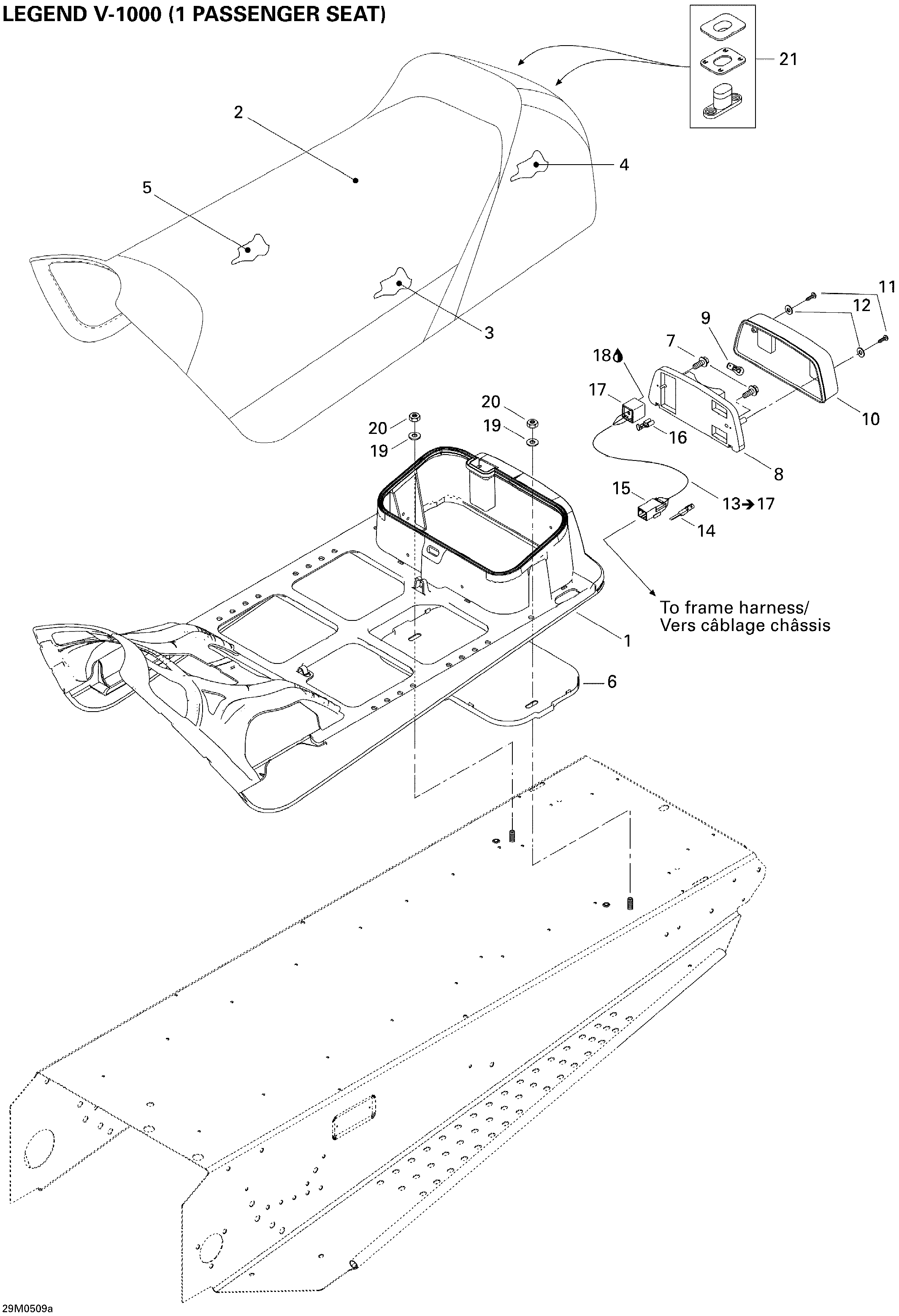

09- Seat для BRP Ski-Doo Legend V-1000 - 2005
-
№АртикулНазвание
-
1510003983 Seat BaseSeat Base
-
2510004151 Seat Cover. Sport / SE (B-160)Seat Cover. Sport / SE (B-160)
-
2510004264 Seat Cover. SE (M-549)Seat Cover. SE (M-549)
-
3510003944 Seat FoamSeat Foam
-
4510003945 Rear Seat FoamRear Seat Foam
-
5510004255 Seat FoamSeat Foam
-
6572107601 Under ChestUnder Chest
-
7732603006 Hex Screw #10 X 1''Hex Screw #10 X 1''
-
8510004061 Light HousingLight Housing
-
9410504100 Tail Lamp BulbTail Lamp Bulb
-
10414513700 LensLens
-
11209632540 Phillips Screw M3.9 X 25Phillips Screw M3.9 X 25
-
12414516400 WasherWasher
-
14515175232 Male TerminalMale Terminal
-
15515175494 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
16409205300 Female TerminalFemale Terminal
-
17515175250 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
18293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
19234082410 Flat Washer M8Flat Washer M8
-
20232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
21414728000 Seat BuckleSeat Buckle
