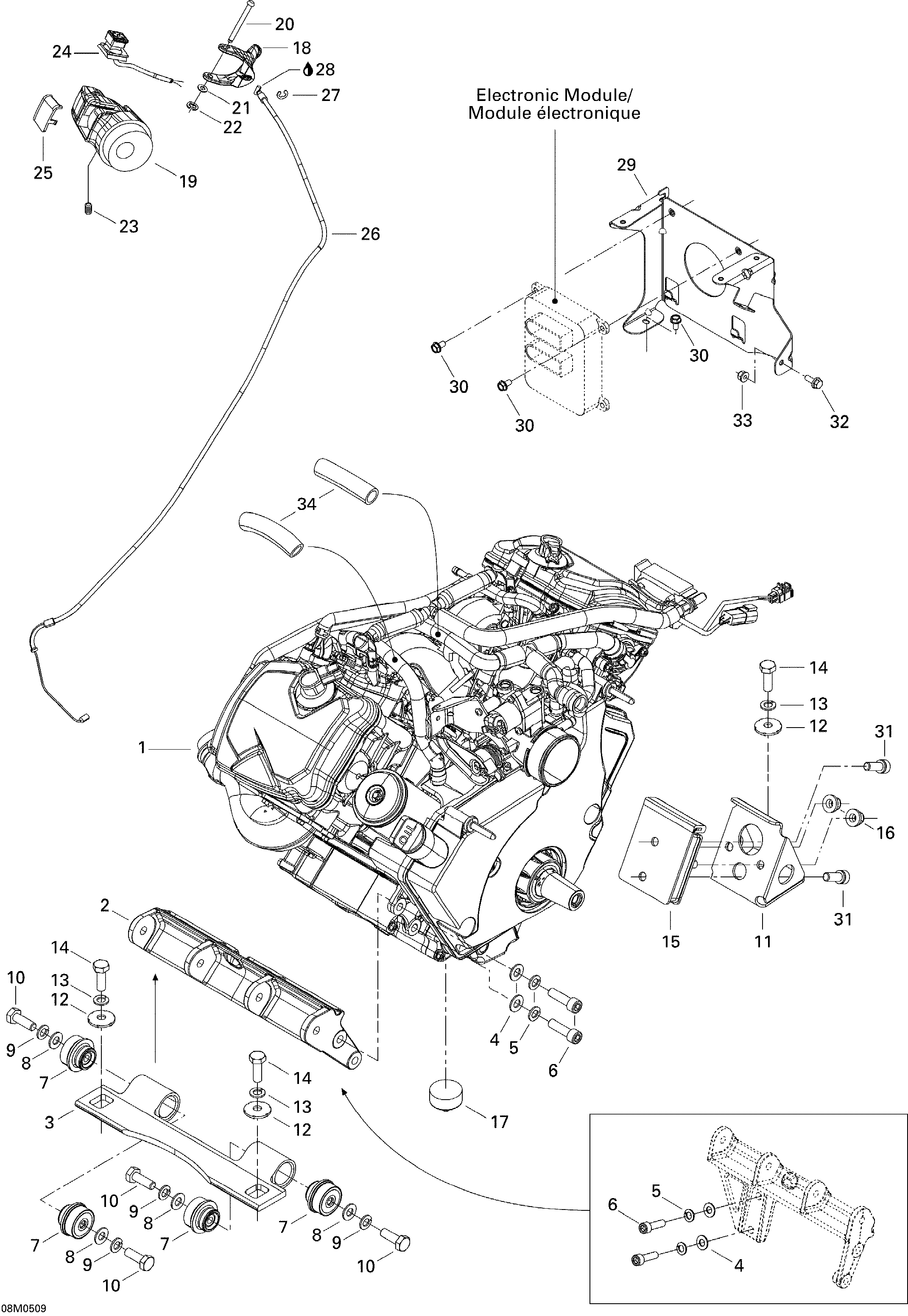

01- Engine для BRP Ski-Doo Legend V-1000 - 2005

  • №
    Артикул
    Название
  • 1
    400101115 Engine V-1004
    Engine V-1004
  • 2
    512059422 Front Engine Mount
    Front Engine Mount
  • 3
    512059425 Front Engine Support
    Front Engine Support
  • 4
    234001410 Flat Washer 10 mm
    Flat Washer 10 mm
  • 5
    234100602 Lock Spring Washer M10
    Lock Spring Washer M10
  • 6
    205003544 Socket Head Screw M10 X 35
    Socket Head Screw M10 X 35
  • 7
    512059691 Rubber Mount
    Rubber Mount
  • 8
    234001410 Flat Washer 10 mm
    Flat Washer 10 mm
  • 9
    234100602 Lock Spring Washer M10
    Lock Spring Washer M10
  • 10
    207103044 Hex Screw M10 X 30
    Hex Screw M10 X 30
  • 11
    512059315 Rear Engine Support
    Rear Engine Support
  • 12
    512056700 Lock Washer
    Lock Washer
  • 13
    234100602 Lock Spring Washer M10
    Lock Spring Washer M10
  • 14
    207103044 Hex Screw M10 X 30
    Hex Screw M10 X 30
  • 15
    512059316 Rubber Mount
    Rubber Mount
  • 16
    233201414 Elastic Flanged Nut M10
    Elastic Flanged Nut M10
  • 17
    512059710 Stopper
    Stopper
  • 18
    512059624 Handle Ass'Y
    Handle Ass'Y
  • 19
    512059489 Throttle Housing
    Throttle Housing
  • 20
    414438700 Lever Pin
    Lever Pin
  • 21
    414438900 Washer
    Washer
  • 22
    414439000 Circlip
    Circlip
  • 23
    414440800 Set Screw M8 X 10
    Set Screw M8 X 10
  • 24
    512059751 Kill Switch
    Kill Switch
  • 25
    572100901 Switch Cover
    Switch Cover
  • 26
    512059349 Throttle Cable. Sport / Sport GT
    Throttle Cable. Sport / Sport GT
  • 26
    512059876 Throttle Cable. SE / SE GT
    Throttle Cable. SE / SE GT
  • 27
    414274500 Circlip
    Circlip
  • 28
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 29
    512059921 Electronic Module Support
    Electronic Module Support
  • 30
    210261280 Hex Forming Screw M6 X 12
    Hex Forming Screw M6 X 12
  • 31
    205002544 Socket Head Screw M10 X 25
    Socket Head Screw M10 X 25
  • 32
    207661644 Hex Flanged Screw M6 X 16
    Hex Flanged Screw M6 X 16
  • 33
    233261414 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 34
    415080000 Tubing 16 mm
    Tubing 16 mm
