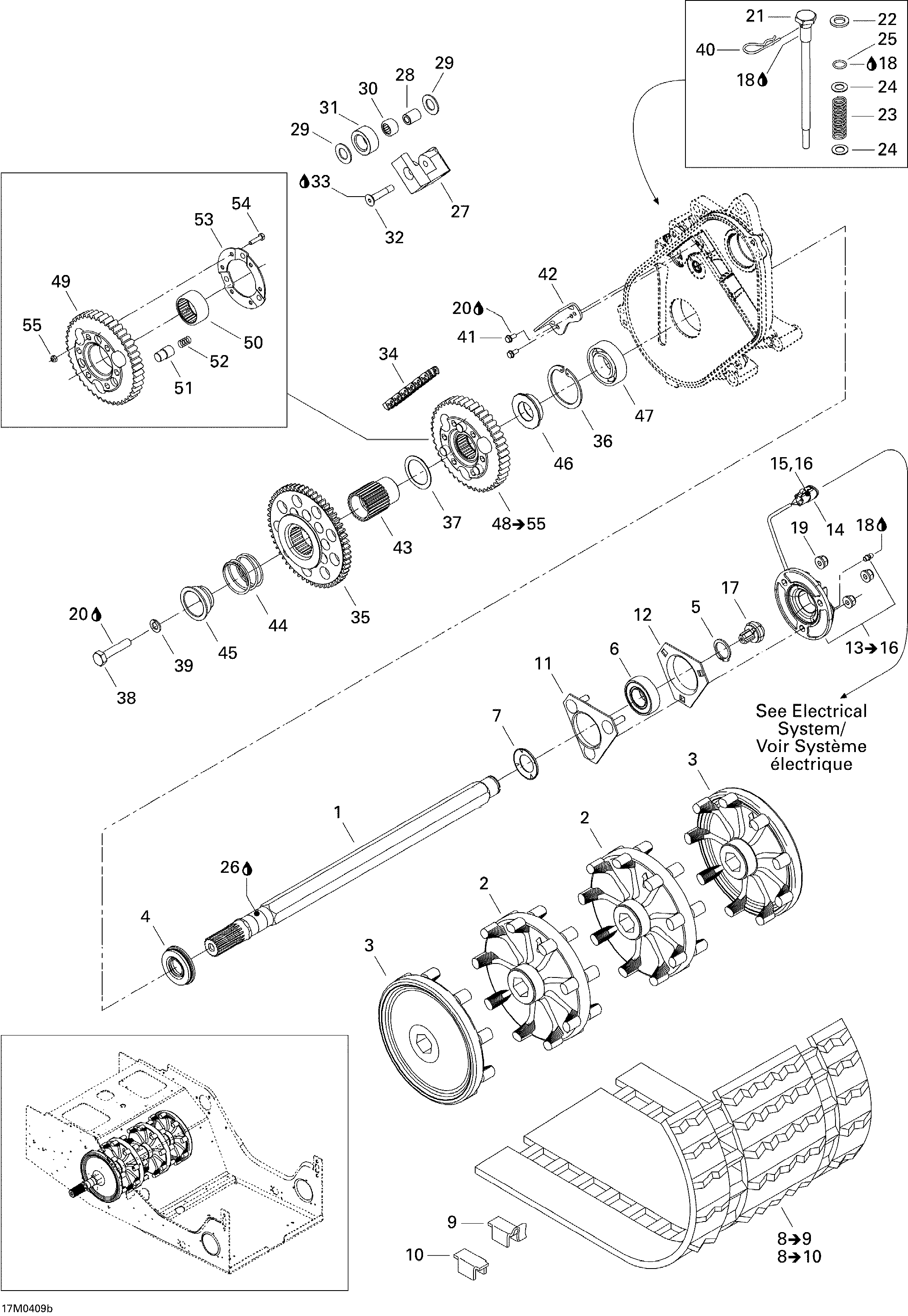

05- Drive System 2 для BRP Ski-Doo Legend V-1000 - 2005

№

Артикул

Название
1

501027400 Drive Axle

Drive Axle

27 720 ₽
2

504151781 Sprocket (9 Teeth)

Sprocket (9 Teeth)

4 600 ₽
3

504151782 Half Sprocket (9 Teeth)

Half Sprocket (9 Teeth)

3 950 ₽
4

504151918 Oil Seal Ass'Y

Oil Seal Ass'Y

7 740 ₽
5

371910200 Circlip

Circlip

1 090 ₽
6

504152009 Ball Bearing

Ball Bearing

0 ₽
7

501017400 Bearing Protector

Bearing Protector

2 230 ₽
8

504152455 Track Ass'y (15'' X 136'' X 0.88). Includes 8 to 10 / SE G.T. & Sport G.T.

Track Ass'y (15'' X 136'' X 0.88). Includes 8 to 10 / SE G.T. & Sport G.T.

71 530 ₽
8

504152485 Track Ass'y (15'' X 121'' X 0.88). Includes 8 to 9 / SE & Sport

Track Ass'y (15'' X 121'' X 0.88). Includes 8 to 9 / SE & Sport

61 760 ₽
8

504152488 Track Ass'y (15'' X 136'' X 1.250). Includes 8 to 10 / SE G.T. Europe

Track Ass'y (15'' X 136'' X 1.250). Includes 8 to 10 / SE G.T. Europe

0 ₽
9

504152410 Guide Cleat. SE G.T. & Sport G.T.

Guide Cleat. SE G.T. & Sport G.T.

0 ₽
9

504152410 Guide Cleat. SE & Sport

Guide Cleat. SE & Sport

0 ₽
9

504152410 Guide Cleat. SE G.T. Europe

Guide Cleat. SE G.T. Europe

0 ₽
10

500003300 Cleat. SE G.T. & Sport G.T.

Cleat. SE G.T. & Sport G.T.

0 ₽
10

500003300 Cleat. SE G.T. Europe

Cleat. SE G.T. Europe

0 ₽
11

504151860 Bearing Housing

Bearing Housing

1 040 ₽
12

501025000 Flange

Flange

1 190 ₽
13

504152173 Flange (Speedo). Includes 13 to 16

Flange (Speedo). Includes 13 to 16

24 750 ₽
14

515175671 Female Terminal Housing (3 Circuits)

Female Terminal Housing (3 Circuits)

1 120 ₽
15

278000632 Female Terminal

Female Terminal

200 ₽
16

515175676 Female Lock (3 Circuits)

Female Lock (3 Circuits)

520 ₽
17

504152040 Magnetic Adaptor

Magnetic Adaptor

15 790 ₽
18

219700417 Synthetic Grease, 400g

Synthetic Grease, 400g

0 ₽
19

233281414 Elastic Flanged Nut M8

Elastic Flanged Nut M8

490 ₽
20

293800005 Loctite 271, 10 ml

Loctite 271, 10 ml

2 300 ₽
21

504151946 Screw Adjusting

Screw Adjusting

9 310 ₽
22

503189148 Washer

Washer

980 ₽
23

504151945 Spring

Spring

920 ₽
24

503125900 Hard Washer

Hard Washer

250 ₽
25

504151954 O-Ring

O-Ring

330 ₽
26

219700417 Synthetic Grease, 400g

Synthetic Grease, 400g

0 ₽
27

504151940 Tension chaine

Tension chaine

2 820 ₽
28

504080200 Spacer

Spacer

1 660 ₽
29

504080300 Washer

Washer

910 ₽
30

405403000 Needle Bearing

Needle Bearing

2 390 ₽
31

414531300 Roller

Roller

4 600 ₽
32

732601144 Screw

Screw

3 020 ₽
33

293800005 Loctite 271, 10 ml

Loctite 271, 10 ml

2 300 ₽
34

504151857 Drive Chain (74 Links )

Drive Chain (74 Links )

19 620 ₽
35

504096800 Sliding Gear (56 Teeth)

Sliding Gear (56 Teeth)

32 200 ₽
36

415064300 Circlip (Interior)

Circlip (Interior)

570 ₽
37

504094300 Washer

Washer

410 ₽
38

207005044 Hex Screw M10 X 50

Hex Screw M10 X 50

1 230 ₽
39

234100602 Lock Spring Washer M10

Lock Spring Washer M10

130 ₽
40

414575600 Hair Pin

Hair Pin

720 ₽
41

210251180 Hex. Forming Screw M5 x 11

Hex. Forming Screw M5 x 11

210 ₽
42

504152036 Slider Chain

Slider Chain

2 930 ₽
43

504097700 Coupling

Coupling

13 550 ₽
44

504096600 Release Spring

Release Spring

840 ₽
45

504151964 Cap

Cap

3 600 ₽
46

504076300 Retaining Ring

Retaining Ring

2 400 ₽
47

504152005 Ball Bearing

Ball Bearing

14 840 ₽
48

581096800 Sprock Assy (44 Teeth). Includes 48 to 55

Sprock Assy (44 Teeth). Includes 48 to 55

32 660 ₽
49

504084400 Sprocket (44 Teeth)

Sprocket (44 Teeth)

0 ₽
50

414772600 Needle Bearing

Needle Bearing

1 970 ₽
51

504076800 Drive Pin

Drive Pin

9 280 ₽
52

414772700 Spring

Spring

410 ₽
53

504076100 Retainer Ring

Retainer Ring

800 ₽
54

207152044 Hex Screw M5 X 20

Hex Screw M5 X 20

90 ₽
55

233551416 Lock Spring Washer M5

Lock Spring Washer M5

330 ₽
