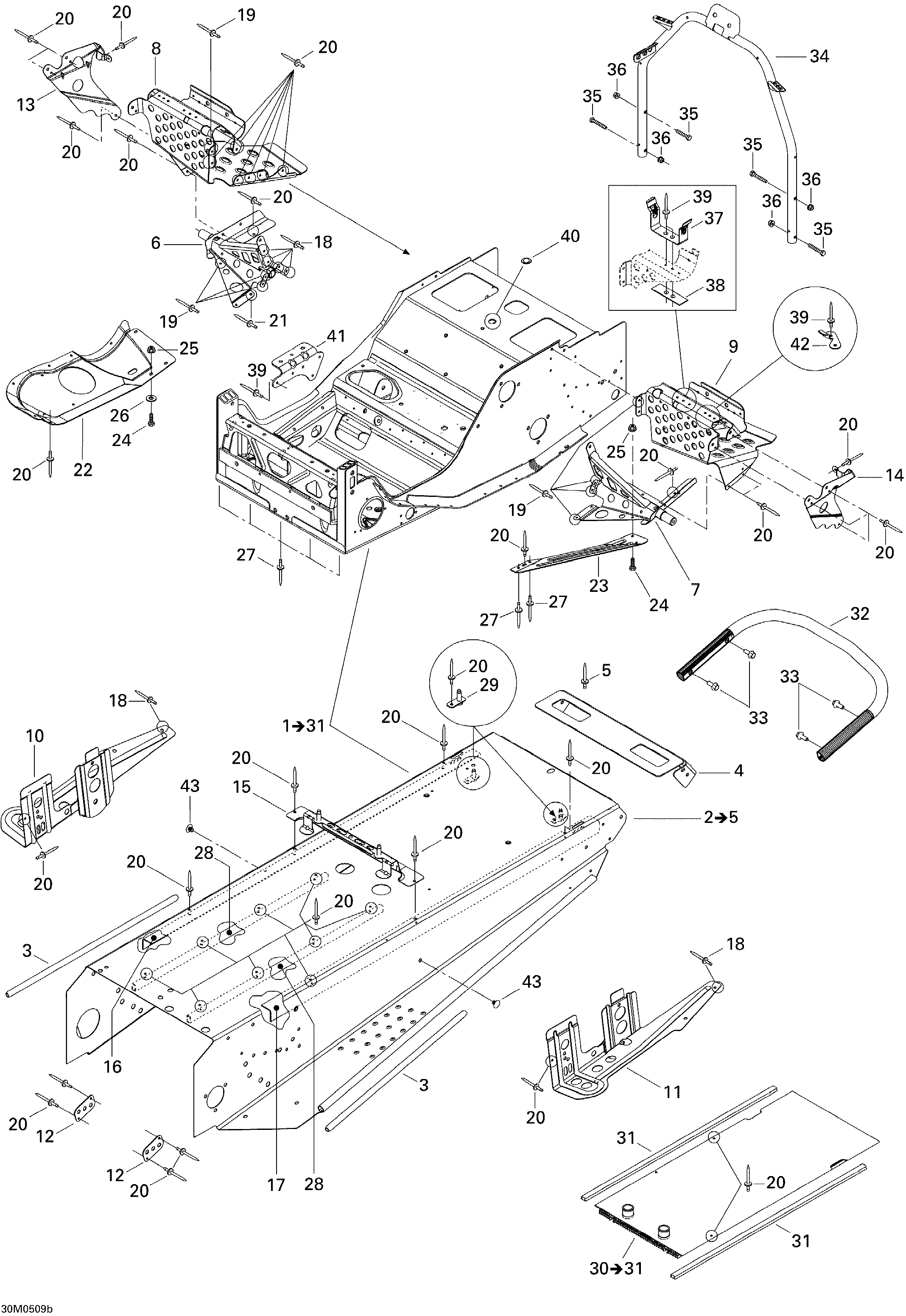

09- Frame, 1 Passenger Seat для BRP Ski-Doo Legend V-1000 - 2005
-
№АртикулНазвание
-
1415128760 Frame. Includes 1 to 31Frame. Includes 1 to 31
-
2415128763 Forming Frame. Includes 2 to 5Forming Frame. Includes 2 to 5
-
3518304746 Footrest ReinforcementFootrest Reinforcement
-
4518321303 Rear CapRear Cap
-
5390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
6518320506 RH Footrest SupportRH Footrest Support
-
7518320507 LH Sootrest SupportLH Sootrest Support
-
8518323563 RH FootrestRH Footrest
-
9518323564 LH FootrestLH Footrest
-
10518323315 RH Slide BracketRH Slide Bracket
-
11518323318 LH Slide BracketLH Slide Bracket
-
12518201321 Reinforcement PlateReinforcement Plate
-
13518321305 RH Footrest ReinforcementRH Footrest Reinforcement
-
14518321307 LH Footrest ReinforcementLH Footrest Reinforcement
-
15518321510 Fuel Tank BracketFuel Tank Bracket
-
16518323193 RH Frame ReinforcementRH Frame Reinforcement
-
17518323195 LH Frame ReinforcementLH Frame Reinforcement
-
18390909200 Rivet AvexRivet Avex
-
19390909100 Rivet AvexRivet Avex
-
20390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
21390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
22518322636 RH Bottom Pan PlateRH Bottom Pan Plate
-
23518322119 LH Reinforcement PlateLH Reinforcement Plate
-
24207152044 Hex Screw M5 X 20Hex Screw M5 X 20
-
25233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
26391301700 Flat WasherFlat Washer
-
27390910300 Rivet HenrobRivet Henrob
-
28518321543 Frame ProtectorFrame Protector
-
29518323321 Seat BracketSeat Bracket
-
30518323130 Rear Radiator. Includes 30 to 31Rear Radiator. Includes 30 to 31
-
31415012300 Radiator ProtectorRadiator Protector
-
32518322708 Rear BumperRear Bumper
-
33207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
34518322755 Handle SupportHandle Support
-
35207663544 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
36233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
37518202100 Belt Guard BracketBelt Guard Bracket
-
38518207500 ReinforcementReinforcement
-
39390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
40414859400 CapCap
-
41518322635 Muffler SupportMuffler Support
-
42518322031 Tool Kit BracketTool Kit Bracket
-
43518321954 Fastener PanelFastener Panel
