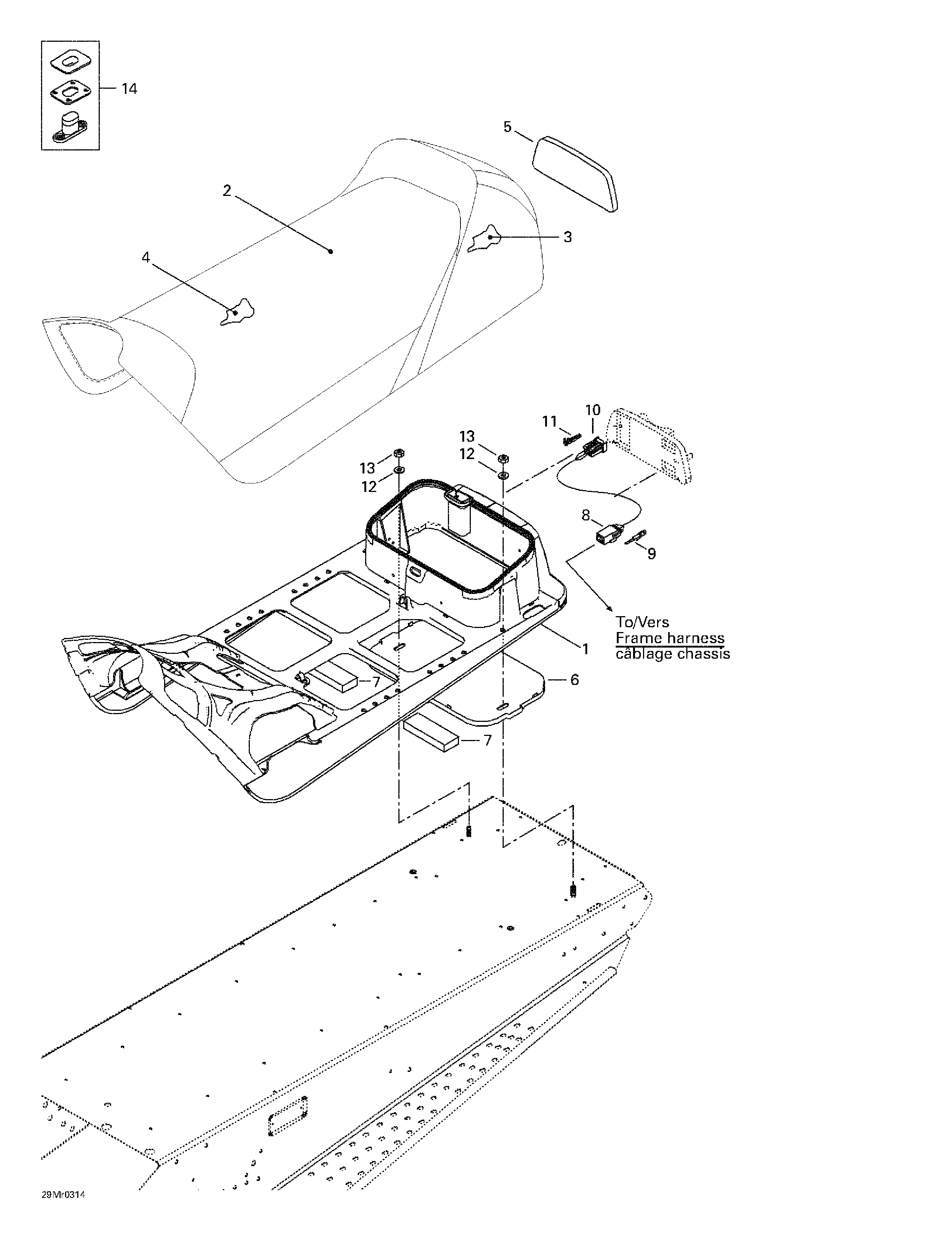

09- Seat для BRP Ski-Doo Summit 600 HO/700/800 HO - 2003
-
№АртикулНазвание
-
1510004125 Seat baseSeat base
-
2510004067 Seat coverSeat cover
-
3510003945 Rear seat foamRear seat foam
-
4510004115 Seat foamSeat foam
-
5510003989 Tail lamp foamTail lamp foam
-
7572107601 Under chestUnder chest
-
7510004157 FoamFoam
-
8515175494 Male terminal housing (3 circuits)Male terminal housing (3 circuits)
-
9515175232 Male terminalMale terminal
-
10515175495 Female terminal housing (3 circuits)Female terminal housing (3 circuits)
-
11515175231 Female terminalFemale terminal
-
12234082410 Flat washer M8Flat washer M8
-
13232581414 Hex elastic nut M8Hex elastic nut M8
-
14414728000 Seat buckleSeat buckle
