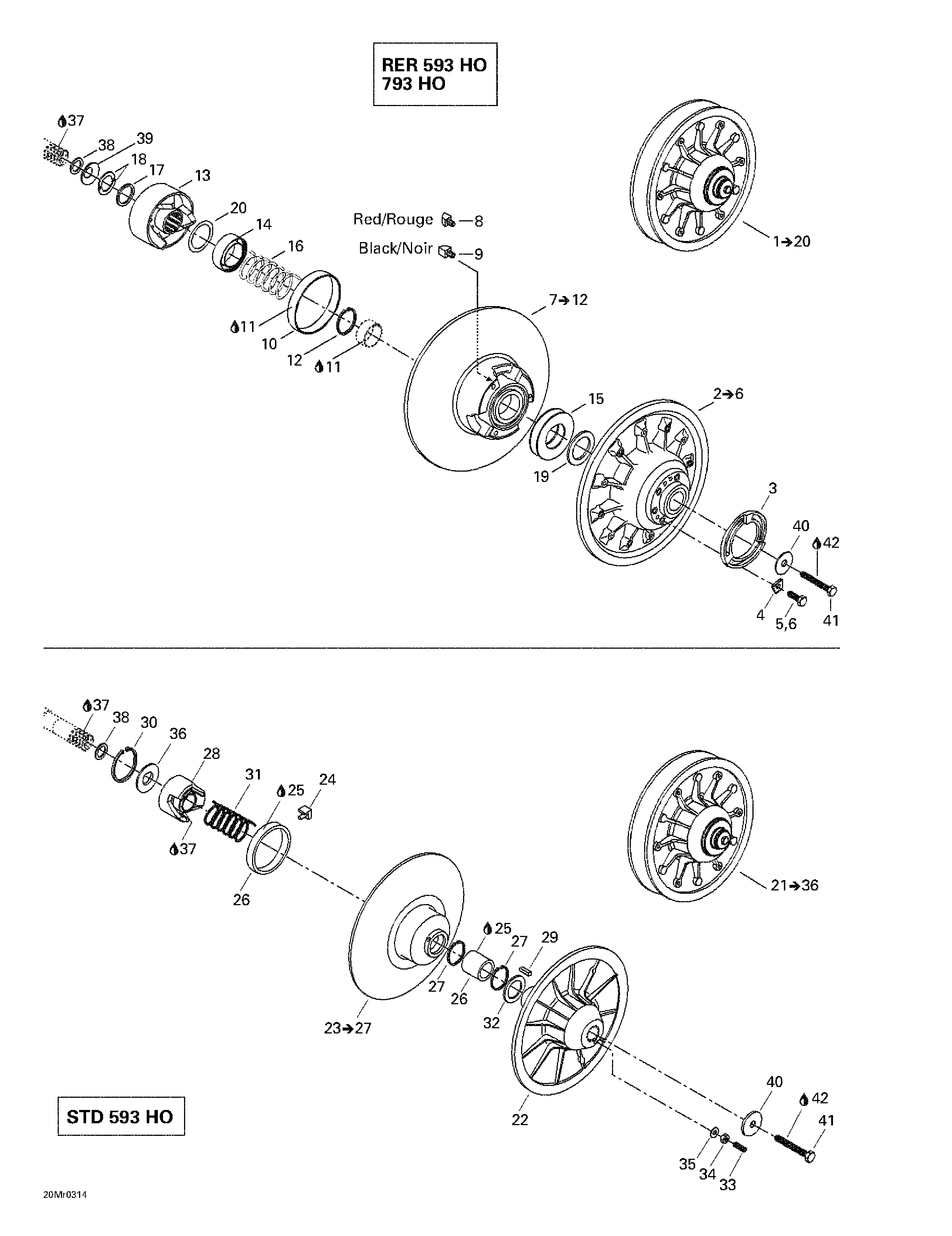

05- Driven Pulley (593 HO, 793 HO) для BRP Ski-Doo Summit 600 HO/700/800 HO - 2003
-
№АртикулНазвание
-
2417126603 Fixed flange. Includes 2 - 6. RER 600 HO / 800 HO Summit 600 HO. Summit 800 HO.Fixed flange. Includes 2 - 6. RER 600 HO / 800 HO Summit 600 HO. Summit 800 HO.
-
3415005800 Adjustment ring. Summit 600 HO. Summit 800 HO.Adjustment ring. Summit 600 HO. Summit 800 HO.
-
4415005900 Adjustment shim. Summit 600 HO. Summit 800 HO.Adjustment shim. Summit 600 HO. Summit 800 HO.
-
5207162544 Screw M6 x 25. Summit 600 HO. Summit 800 HO.Screw M6 x 25. Summit 600 HO. Summit 800 HO.
-
6207162244 Screw M6 x 22. Summit 600 HO. Summit 800 HO.Screw M6 x 22. Summit 600 HO. Summit 800 HO.
-
7417126605 Sliding flange ass'y. Includes 7 - 12. Summit 600 HO. Summit 800 HO.Sliding flange ass'y. Includes 7 - 12. Summit 600 HO. Summit 800 HO.
-
8417126373 Rear cam slider shoe. Summit 600 HO. Summit 800 HO.Rear cam slider shoe. Summit 600 HO. Summit 800 HO.
-
9417126374 Front cam slider shoe. Summit 600 HO. Summit 800 HO.Front cam slider shoe. Summit 600 HO. Summit 800 HO.
-
10414978100 Bushing. Summit 600 HO. Summit 800 HO.Bushing. Summit 600 HO. Summit 800 HO.
-
11413703100 Loctite 609, 10 ml. Summit 600 HO. Summit 800 HO.Loctite 609, 10 ml. Summit 600 HO. Summit 800 HO.
-
12371911200 Circlip. Summit 600 HO. Summit 800 HO.Circlip. Summit 600 HO. Summit 800 HO.
-
13417126445 Cam ass'y. RER 600 HO ADRENALINE (EUROPE) Summit 600 HO. 800 HO HIGHMARK. 800 HO HIGHMARK X. 800 HO HIGHMARK X EXTREME Summit 800 HO.Cam ass'y. RER 600 HO ADRENALINE (EUROPE) Summit 600 HO. 800 HO HIGHMARK. 800 HO HIGHMARK X. 800 HO HIGHMARK X EXTREME Summit 800 HO.
-
417126559 Cam ass'y. RER 600 HO ADRENALINE Summit 600 HO.Cam ass'y. RER 600 HO ADRENALINE Summit 600 HO.
-
417126385 Cam ass'y. 800 HO ADRENALINE. 800 HO X Summit 800 HO.Cam ass'y. 800 HO ADRENALINE. 800 HO X Summit 800 HO.
-
14417126381 Guard. Summit 600 HO. Summit 800 HO.Guard. Summit 600 HO. Summit 800 HO.
-
15504099600 Stopper washer. Summit 600 HO. Summit 800 HO.Stopper washer. Summit 600 HO. Summit 800 HO.
-
16417126687 Release Spring (black). Summit 600 HO. Summit 800 HO.Release Spring (black). Summit 600 HO. Summit 800 HO.
-
17417126375 Spacer. Summit 600 HO. Summit 800 HO.Spacer. Summit 600 HO. Summit 800 HO.
-
18371911000 Half key. Summit 600 HO. Summit 800 HO.Half key. Summit 600 HO. Summit 800 HO.
-
19504112300 Shim. Summit 600 HO. Summit 800 HO.Shim. Summit 600 HO. Summit 800 HO.
-
20417126322 Abutment swivel. Summit 600 HO. Summit 800 HO.Abutment swivel. Summit 600 HO. Summit 800 HO.
-
21417126706 Driven pulley ass'y. Includes 21 - 36. STD 600 HO ADRENALINE Summit 600 HO.Driven pulley ass'y. Includes 21 - 36. STD 600 HO ADRENALINE Summit 600 HO.
-
22417126499 Fixed flange. Summit 600 HO.Fixed flange. Summit 600 HO.
-
23417126501 Sliding flange ass'y. Includes 23 - 27. Summit 600 HO.Sliding flange ass'y. Includes 23 - 27. Summit 600 HO.
-
24414918000 Cam slider shoe. Summit 600 HO.Cam slider shoe. Summit 600 HO.
-
25413703100 Loctite 609, 10 ml. Summit 600 HO.Loctite 609, 10 ml. Summit 600 HO.
-
26417126514 Cushion. Summit 600 HO.Cushion. Summit 600 HO.
-
27371911200 Circlip. Summit 600 HO.Circlip. Summit 600 HO.
-
28417126704 Came. Summit 600 HO.Came. Summit 600 HO.
-
29414820800 Key. Summit 600 HO.Key. Summit 600 HO.
-
30371903100 Circlip. Summit 600 HO.Circlip. Summit 600 HO.
-
31414558900 Release spring (beige). Summit 600 HO.Release spring (beige). Summit 600 HO.
-
32504141900 Thrust washer. Summit 600 HO.Thrust washer. Summit 600 HO.
-
33206263044 Pressure screw M6 x 30. Summit 600 HO.Pressure screw M6 x 30. Summit 600 HO.
-
34232061414 Hex nut M6. Summit 600 HO.Hex nut M6. Summit 600 HO.
-
35420245370 Washer. Summit 600 HO.Washer. Summit 600 HO.
-
36417126555 Washer. Summit 600 HO.Washer. Summit 600 HO.
-
37293800070 Loctite 767, antiseize lubricant, 8 oz. Summit 600 HO. Summit 800 HO.Loctite 767, antiseize lubricant, 8 oz. Summit 600 HO. Summit 800 HO.
-
38417300054 Spacer. RER 800 HO Summit 800 HO.Spacer. RER 800 HO Summit 800 HO.
-
504149100 Spacer. STD 600 HO Summit 600 HO.Spacer. STD 600 HO Summit 600 HO.
-
39417300055 Protector. RER 800 HO Summit 800 HO.Protector. RER 800 HO Summit 800 HO.
-
40517302322 Washer-strength. Summit 600 HO. Summit 800 HO.Washer-strength. Summit 600 HO. Summit 800 HO.
-
41207087544 Hex screw M8 x 75. Summit 600 HO. Summit 800 HO.Hex screw M8 x 75. Summit 600 HO. Summit 800 HO.
-
42293800060 Loctite 243, 10 ml. Summit 600 HO. Summit 800 HO.Loctite 243, 10 ml. Summit 600 HO. Summit 800 HO.
