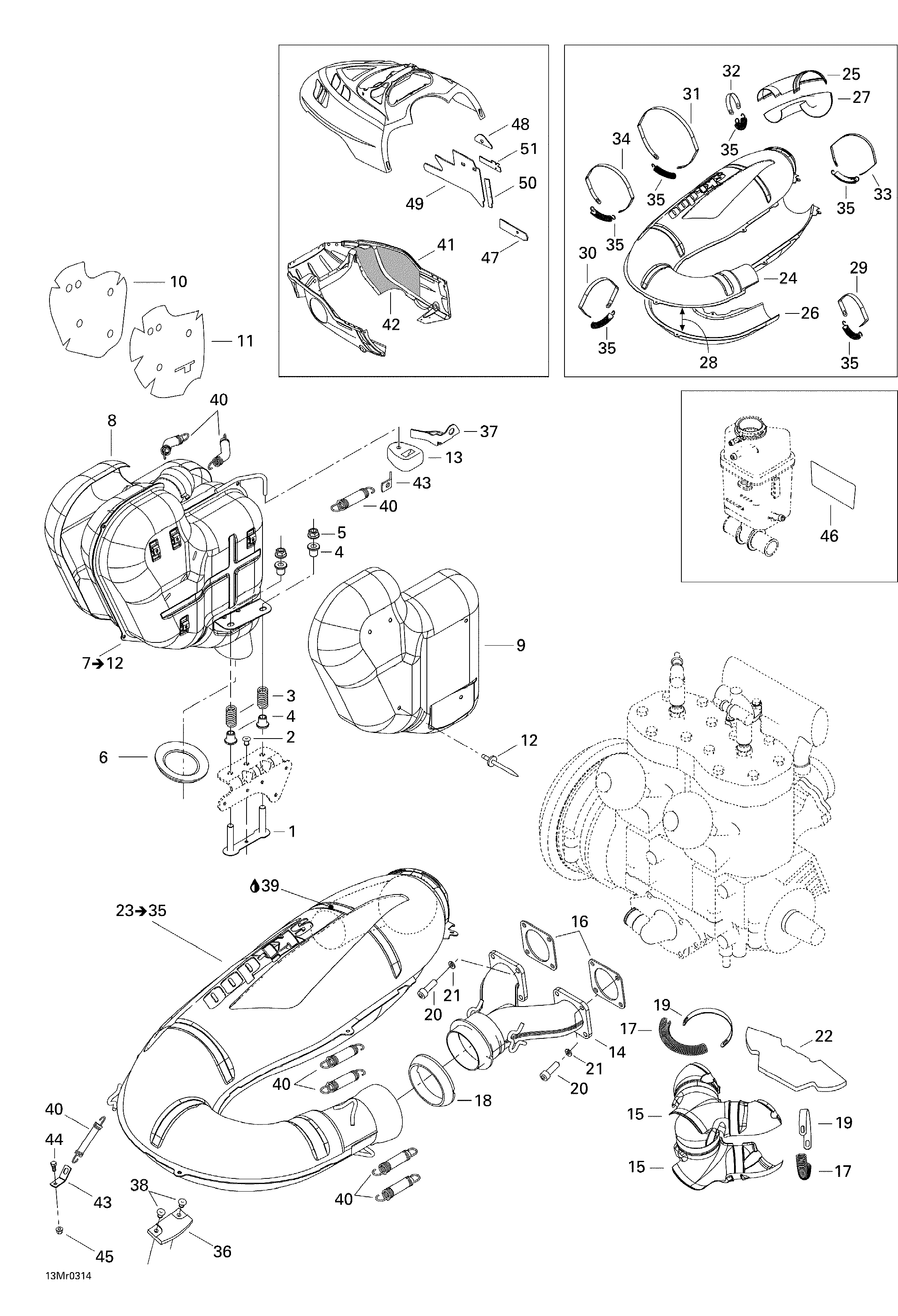

01- Muffler для BRP Ski-Doo Summit 600 HO/700/800 HO - 2003
-
№АртикулНазвание
-
1514053263 Muffler bracketMuffler bracket
-
2390402200 Pop rivet 3/16''Pop rivet 3/16''
-
3414913700 SpringSpring
-
4514053343 GuideGuide
-
5233481413 Hex self stop nut M8Hex self stop nut M8
-
6514053064 Exhaust grommetExhaust grommet
-
7514053483 Muffler. Includes 7 - 12. 600 HO Summit 600 HO.Muffler. Includes 7 - 12. 600 HO Summit 600 HO.
-
514053537 Muffler. 700 Summit 700.Muffler. 700 Summit 700.
-
514053513 Muffler. 800 HO Summit 800 HO.Muffler. 800 HO Summit 800 HO.
-
8514053606 R.H. Heat ShieldR.H. Heat Shield
-
9514053516 L.H. Heat ShieldL.H. Heat Shield
-
10514053294 R.h. insulating woolR.h. insulating wool
-
11514053295 L.h. Insulating woolL.h. Insulating wool
-
12390910000 Pop rivet 3/16''Pop rivet 3/16''
-
13514052704 Rubber bumperRubber bumper
-
14420973593 Exhaust manifold. 600 HO / 700 Summit 600 HO. Summit 700.Exhaust manifold. 600 HO / 700 Summit 600 HO. Summit 700.
-
420973714 Exhaust manifold. 800 HO Summit 800 HO.Exhaust manifold. 800 HO Summit 800 HO.
-
15514053593 Exhaust manifold envelopeExhaust manifold envelope
-
16420850552 Gasket. 600 HO / 700 Summit 600 HO. Summit 700.Gasket. 600 HO / 700 Summit 600 HO. Summit 700.
-
420931850 Gasket. 800 HO Summit 800 HO.Gasket. 800 HO Summit 800 HO.
-
17514053643 SpringSpring
-
18514053487 Exhaust gasketExhaust gasket
-
19514053603 Strap retainingStrap retaining
-
20205062044 Socket screw M6 x 20Socket screw M6 x 20
-
21234161471 Lock washer M6Lock washer M6
-
22514053588 Insulating woolInsulating wool
-
23514053506 Calibration tube ass'y. Includes 23 - 35.Calibration tube ass'y. Includes 23 - 35.
-
24514053192 Upper envelopeUpper envelope
-
25514053313 Rear upper envelopeRear upper envelope
-
26514053367 Lower envelopeLower envelope
-
27514053314 Rear lower envelopeRear lower envelope
-
28514053315 Insulating woolInsulating wool
-
29514053498 Retaining strapRetaining strap
-
30514053501 Retaining strapRetaining strap
-
31514053540 Retaining strapRetaining strap
-
32514053492 Retaining strapRetaining strap
-
33514053500 Retaining strapRetaining strap
-
34514053512 Retaining strapRetaining strap
-
35514053643 SpringSpring
-
36570044100 Rubber padRubber pad
-
37514053442 Engine suportEngine suport
-
38293150103 Pop rivet 3/16''Pop rivet 3/16''
-
39293800090 Sealant, loctite, 80 mlSealant, loctite, 80 ml
-
40415107100 SpringSpring
-
41514052718 Reflective sheetReflective sheet
-
42514053390 Reflective sheetReflective sheet
-
43514053436 Spring brachetSpring brachet
-
44207151244 Hex screw M5 x 12Hex screw M5 x 12
-
45233251414 Hex flanged elastic nut M5Hex flanged elastic nut M5
-
46514053399 Reflective sheetReflective sheet
-
47514053435 Reflective sheet. ONE TONEReflective sheet. ONE TONE
-
48514053446 Reflective sheet. ONE TONEReflective sheet. ONE TONE
-
49514053624 Reflective sheetReflective sheet
-
50514053450 Reflective sheetReflective sheet
-
51514053391 Reflective sheet. TWO TONESReflective sheet. TWO TONES
