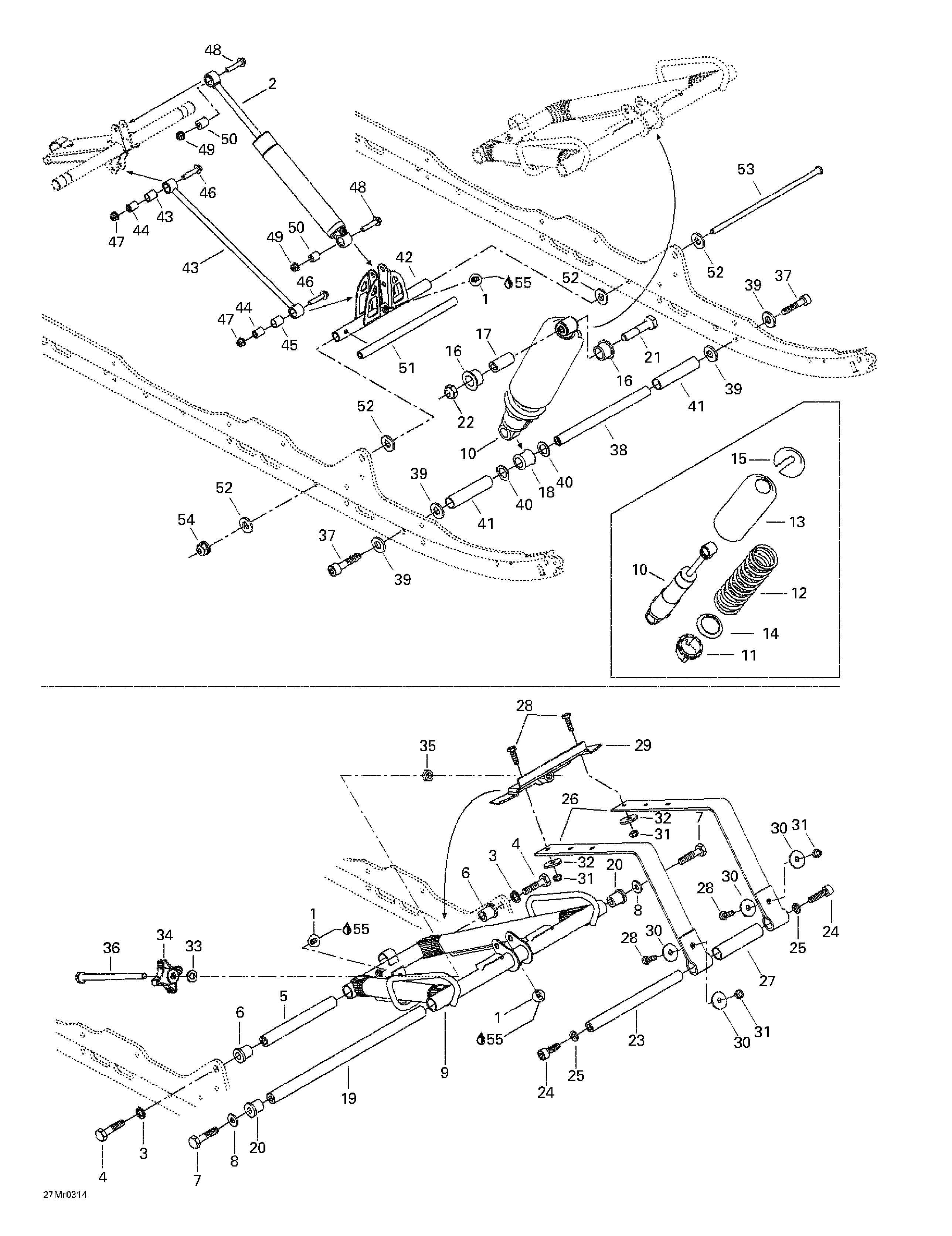

08- Front Arm And Shock для BRP Ski-Doo Summit 600 HO/700/800 HO - 2003
-
№АртикулНазвание
-
1408200700 Grease fitting M6Grease fitting M6
-
2503189897 Rear shock. ADRENALINE & HIGHMARKRear shock. ADRENALINE & HIGHMARK
-
503190024 Rear shock. X & HIGHMARK X Summit 700. Summit 800.Rear shock. X & HIGHMARK X Summit 700. Summit 800.
-
503190020 Rear shock. HIGHMARK X EXTREME Summit 800.Rear shock. HIGHMARK X EXTREME Summit 800.
-
503190236 Rear shock. ADRENALINE (EUROPE) Summit 600.Rear shock. ADRENALINE (EUROPE) Summit 600.
-
503190225 Rear shock. X (EUROPE) Summit 800.Rear shock. X (EUROPE) Summit 800.
-
3503189276 WasherWasher
-
4207226044 Hex screw M12 x 60 (scotch grip)Hex screw M12 x 60 (scotch grip)
-
5503189313 ShaftShaft
-
6503189323 BushingBushing
-
7207205544 Hex screw M10 x 55 (scotch grip)Hex screw M10 x 55 (scotch grip)
-
8732900049 WasherWasher
-
9503189797 Front armFront arm
-
10503189893 Center shock. ADRENALINE & HIGHMARK. ADRENALINE (EUROPE) Summit 600.Center shock. ADRENALINE & HIGHMARK. ADRENALINE (EUROPE) Summit 600.
-
503190017 Center shock. X & HIGHMARK X Summit 700. Summit 800.Center shock. X & HIGHMARK X Summit 700. Summit 800.
-
503190226 Center shock. X (EUROPE) Summit 800.Center shock. X (EUROPE) Summit 800.
-
503190015 Center shock. HIGHMARK X EXTREME Summit 800.Center shock. HIGHMARK X EXTREME Summit 800.
-
11503183700 Cam. ADRENALINE & HIGHMARKCam. ADRENALINE & HIGHMARK
-
505070150 Cam 45 Deg. X & HIGHMARK X Summit 700. X (EUROPE). HIGHMARK X EXTREME Summit 800.Cam 45 Deg. X & HIGHMARK X Summit 700. X (EUROPE). HIGHMARK X EXTREME Summit 800.
-
503183700 Cam. ADRENALINE (EUROPE) Summit 600.Cam. ADRENALINE (EUROPE) Summit 600.
-
12415070500 Spring. ADRENALINE & X. HIGHMARK & HIGHMARK X Summit 700.. HIGHMARK X EXTREME Summit 800.Spring. ADRENALINE & X. HIGHMARK & HIGHMARK X Summit 700.. HIGHMARK X EXTREME Summit 800.
-
503189686 Spring. ADRENALINE (EUROPE) Summit 600. X (EUROPE) Summit 800.Spring. ADRENALINE (EUROPE) Summit 600. X (EUROPE) Summit 800.
-
13503188930 ProtectorProtector
-
14503187500 Spring guide. ADRENALINE & HIGHMARK. ADRENALINE (EUROPE) Summit 600.Spring guide. ADRENALINE & HIGHMARK. ADRENALINE (EUROPE) Summit 600.
-
517184300 Spring guide. X & HIGHMARK X Summit 700. X (EUROPE). HIGHMARK X EXTREME Summit 800.Spring guide. X & HIGHMARK X Summit 700. X (EUROPE). HIGHMARK X EXTREME Summit 800.
-
15503140600 Spring stopperSpring stopper
-
16503189117 Urethane cushionUrethane cushion
-
17503189282 BushingBushing
-
18503189271 Urethane cushionUrethane cushion
-
19503188938 ShaftShaft
-
20503189324 BushingBushing
-
21207005044 Hex screw M10 x 50Hex screw M10 x 50
-
22233601416 Hex locking nut M10Hex locking nut M10
-
23503189562 AxleAxle
-
24205503544 Socket head screw M10 x 35 (scotch grip)Socket head screw M10 x 35 (scotch grip)
-
25503189564 WasherWasher
-
26503189450 Stopper strapStopper strap
-
27503189936 SpacerSpacer
-
28207182544 Hex screw M8 x 25Hex screw M8 x 25
-
29503189806 Belt bracketBelt bracket
-
30224081301 Flat washerFlat washer
-
31232581414 Hex elastic nut M8Hex elastic nut M8
-
32503183100 WasherWasher
-
33503183800 WasherWasher
-
34572034000 Adjuster knobAdjuster knob
-
35232006414 Hex nut M10Hex nut M10
-
36250000062 Long bolt M10Long bolt M10
-
37205523544 Socket head screw M12 x 35 (scotch grip)Socket head screw M12 x 35 (scotch grip)
-
38503189272 Center shock shaftCenter shock shaft
-
39503189276 WasherWasher
-
40503189273 WasherWasher
-
41503189274 SpacerSpacer
-
42503189545 Pivot armPivot arm
-
43503189547 Throttle rodThrottle rod
-
44503189133 Rod axleRod axle
-
45503189625 CushionCushion
-
46207684044 Hex flanged screw M8 x 40Hex flanged screw M8 x 40
-
47250100025 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
48207684044 Hex flanged screw M8 x 40Hex flanged screw M8 x 40
-
49250100025 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
50414936000 CushionCushion
-
51503189156 Pivot axlePivot axle
-
52503189157 WasherWasher
-
53732601198 Long bolt M8Long bolt M8
-
54250100025 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
55219700417 Synthetic Grease, 400gSynthetic Grease, 400g
