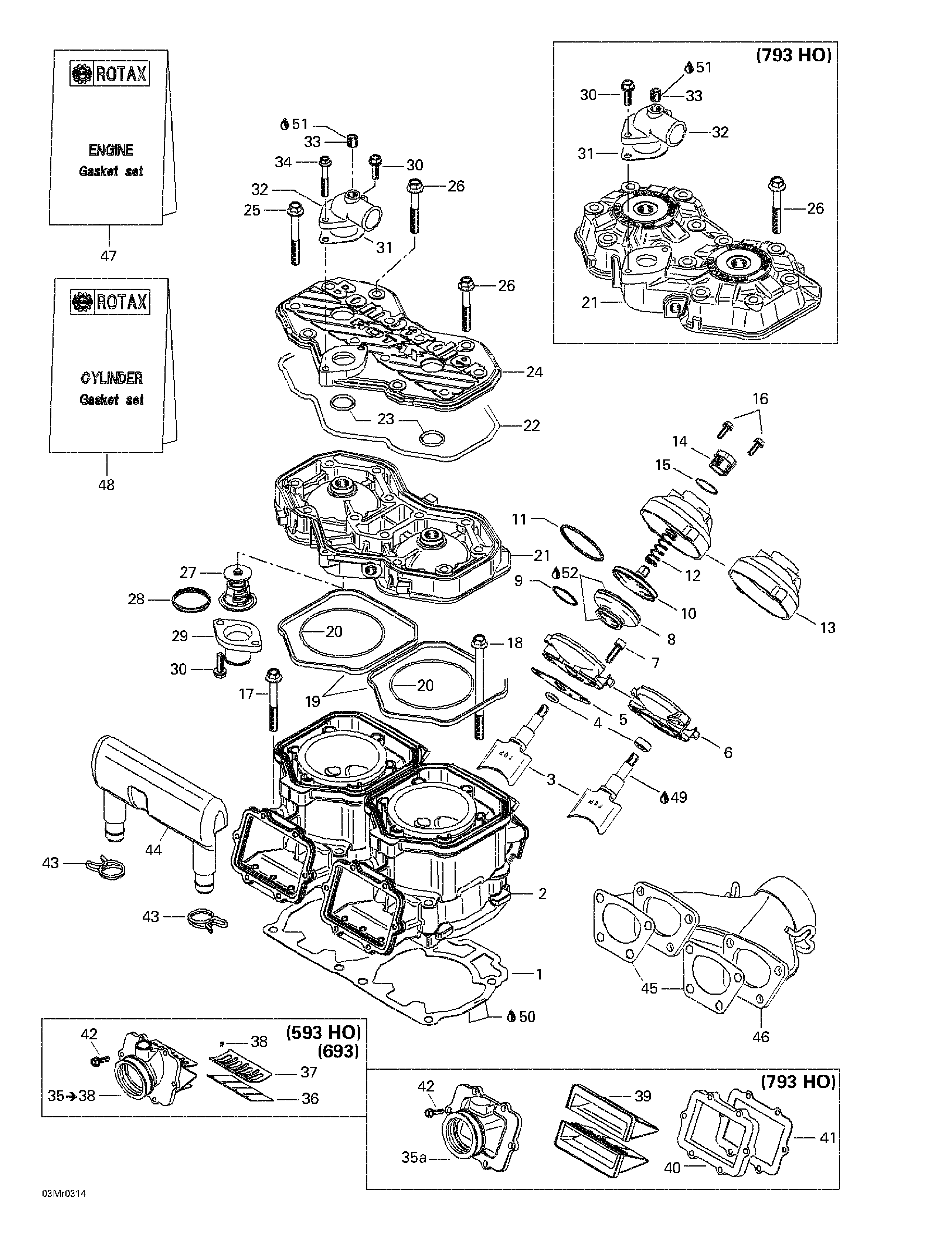

01- Cylinder, Exhaust Manifold, Reed Valve для BRP Ski-Doo Summit 600 HO/700/800 HO - 2003
-
№АртикулНазвание
-
1420931895 Gasket 0.8 mm. Summit 600 HO. Summit 700.Gasket 0.8 mm. Summit 600 HO. Summit 700.
-
420931839 Gasket 0.8 mm. Summit 800 HO.Gasket 0.8 mm. Summit 800 HO.
-
420931894 Gasket 0.7 mm. Summit 600 HO. Summit 700.Gasket 0.7 mm. Summit 600 HO. Summit 700.
-
420931964 Gasket 0.7 mm. Summit 800 HO.Gasket 0.7 mm. Summit 800 HO.
-
420931892 Gasket 0.6 mm. Summit 600 HO. Summit 700.Gasket 0.6 mm. Summit 600 HO. Summit 700.
-
420931837 Gasket 0.6 mm. Summit 800 HO.Gasket 0.6 mm. Summit 800 HO.
-
420931893 Gasket 0.5 mm. Summit 600 HO. Summit 700.Gasket 0.5 mm. Summit 600 HO. Summit 700.
-
420931838 Gasket 0.5 mm. Summit 800 HO.Gasket 0.5 mm. Summit 800 HO.
-
2420613710 Cylinder-nicasil. Summit 600 HO.Cylinder-nicasil. Summit 600 HO.
-
420923695 Cylinder-nicasil. Summit 700.Cylinder-nicasil. Summit 700.
-
420613852 Cylinder-nicasil. Summit 800 HO.Cylinder-nicasil. Summit 800 HO.
-
3420854650 Exhaust valve (HO). Summit 600 HO.Exhaust valve (HO). Summit 600 HO.
-
420854332 Exhaust valve. Summit 700.Exhaust valve. Summit 700.
-
420854465 Exhaust valve. Summit 800 HO.Exhaust valve. Summit 800 HO.
-
4420430110 O-ring. Summit 600 HO. Summit 800 HO.O-ring. Summit 600 HO. Summit 800 HO.
-
420950730 Oil seal. Summit 700.Oil seal. Summit 700.
-
5420250239 Gasket. Summit 700.Gasket. Summit 700.
-
420931542 Gasket. Summit 600 HO. Summit 800 HO.Gasket. Summit 600 HO. Summit 800 HO.
-
6420854266 Valve housing. Summit 700.Valve housing. Summit 700.
-
420854455 Valve housing. Summit 600 HO. Summit 800 HO.Valve housing. Summit 600 HO. Summit 800 HO.
-
7205062044 Socket head screw M6 x 20. Summit 700.Socket head screw M6 x 20. Summit 700.
-
205062544 Socket head screw M6 x 25. Summit 600 HO. Summit 800 HO.Socket head screw M6 x 25. Summit 600 HO. Summit 800 HO.
-
8290260723 Bellows. Summit 700.Bellows. Summit 700.
-
420260729 Bellows. Summit 600 HO. Summit 800 HO.Bellows. Summit 600 HO. Summit 800 HO.
-
9420838253 Spring clampSpring clamp
-
10420854449 Exhaust valveExhaust valve
-
11290239048 Hose springHose spring
-
12420239944 Spring. Summit 600 HO. Summit 700.Spring. Summit 600 HO. Summit 700.
-
420239942 Spring. Summit 800 HO.Spring. Summit 800 HO.
-
13420911552 Valve cover. Summit 700.Valve cover. Summit 700.
-
420911558 Valve cover. Summit 600 HO. Summit 800 HO.Valve cover. Summit 600 HO. Summit 800 HO.
-
14420241221 Adjuster screwAdjuster screw
-
15420430220 O-ring. Summit 600 HO. Summit 800 HO.O-ring. Summit 600 HO. Summit 800 HO.
-
16420841555 Tapping screw M5 x 20. Summit 700.Tapping screw M5 x 20. Summit 700.
-
420241270 Tapping screw M5 x 25. Summit 600 HO. Summit 800 HO.Tapping screw M5 x 25. Summit 600 HO. Summit 800 HO.
-
17420640524 Hex collar screw M10 x 80Hex collar screw M10 x 80
-
18420640534 Hex collar screw M10 x 120Hex collar screw M10 x 120
-
19420931590 Rubber ringRubber ring
-
20293300026 O-ring. Summit 600 HO.O-ring. Summit 600 HO.
-
420931840 O-ring. Summit 700.O-ring. Summit 700.
-
290931410 O-ring. Summit 800 HO.O-ring. Summit 800 HO.
-
21420613700 Cylinder head (silver). Summit 600 HO.Cylinder head (silver). Summit 600 HO.
-
420613840 Cylinder head (silver). Summit 700.Cylinder head (silver). Summit 700.
-
420613920 Cylinder head (silver). Summit 800 HO.Cylinder head (silver). Summit 800 HO.
-
22290950320 O-ring. Summit 600 HO. Summit 700.O-ring. Summit 600 HO. Summit 700.
-
23420430782 O-ring. Summit 600 HO. Summit 700.O-ring. Summit 600 HO. Summit 700.
-
24420923460 Cylinder head cover (silver). Summit 600 HO. Summit 700.Cylinder head cover (silver). Summit 600 HO. Summit 700.
-
25420841306 Hex collar screw M8 x 65. Summit 600 HO. Summit 700.Hex collar screw M8 x 65. Summit 600 HO. Summit 700.
-
26420941621 Hex collar screw M8 x 56.5Hex collar screw M8 x 56.5
-
27420922517 Thermostat (42 Deg.)Thermostat (42 Deg.)
-
28420931272 Sealing ringSealing ring
-
29420922025 Bent outlet socketBent outlet socket
-
30420941250 Screw M6 x 20Screw M6 x 20
-
31420850338 GasketGasket
-
32420922062 Bent outlet socketBent outlet socket
-
33420240480 Plug screw 1/8-27 NPTPlug screw 1/8-27 NPT
-
34420941451 Hex collar screw M6 x 40. Summit 600 HO. Summit 700.Hex collar screw M6 x 40. Summit 600 HO. Summit 700.
-
35a420667102 Intake Socket. Summit 800 HO.Intake Socket. Summit 800 HO.
-
35420867873 Carburetor socket. Includes 35 to 38. Summit 700.Carburetor socket. Includes 35 to 38. Summit 700.
-
35420867874 Carburetor socket. Includes 35 to 38. Summit 600 HO.Carburetor socket. Includes 35 to 38. Summit 600 HO.
-
36420924680 Pedal reed. Summit 600 HO. Summit 700.Pedal reed. Summit 600 HO. Summit 700.
-
37420924695 Reed pedal stop. Summit 600 HO. Summit 700.Reed pedal stop. Summit 600 HO. Summit 700.
-
38420941215 Screw M3 x 5Screw M3 x 5
-
39420924790 Reed valve ass'y. Summit 800 HO.Reed valve ass'y. Summit 800 HO.
-
40420924820 Distance flange. Summit 800 HO.Distance flange. Summit 800 HO.
-
41420630815 Gasket. Summit 800 HO.Gasket. Summit 800 HO.
-
42420941925 Screw M5 x 16. Summit 600 HO. Summit 700.Screw M5 x 16. Summit 600 HO. Summit 700.
-
420641840 Screw M5 x 35. Summit 800 HO.Screw M5 x 35. Summit 800 HO.
-
43420851440 Clamp. Summit 700.Clamp. Summit 700.
-
44420867817 Intake resonator. Summit 700.Intake resonator. Summit 700.
-
45420850552 Gasket. Summit 600 HO. Summit 700.Gasket. Summit 600 HO. Summit 700.
-
420931850 Gasket. Summit 800 HO.Gasket. Summit 800 HO.
-
46420973593 Exhaust manifold. Summit 600 HO. Summit 700.Exhaust manifold. Summit 600 HO. Summit 700.
-
420973714 Exhaust manifold. Summit 800 HO.Exhaust manifold. Summit 800 HO.
-
47420889920 Engine gasket set. Summit 600 HO.Engine gasket set. Summit 600 HO.
-
420888604 Engine gasket set. Summit 700.Engine gasket set. Summit 700.
-
420888741 Engine gasket set. Summit 800 HO.Engine gasket set. Summit 800 HO.
-
48420889925 Cylinder gasket set. Summit 600 HO.Cylinder gasket set. Summit 600 HO.
-
420888608 Cylinder gasket set. Summit 700.Cylinder gasket set. Summit 700.
-
420888745 Cylinder gasket set. Summit 800 HO.Cylinder gasket set. Summit 800 HO.
-
49711297433 Molykote G-n Paste, Dow Corning, 50gMolykote G-n Paste, Dow Corning, 50g
-
50293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
51420297906 Sealing compound, 30 mlSealing compound, 30 ml
-
52413707000 Molykote IIIMolykote III
