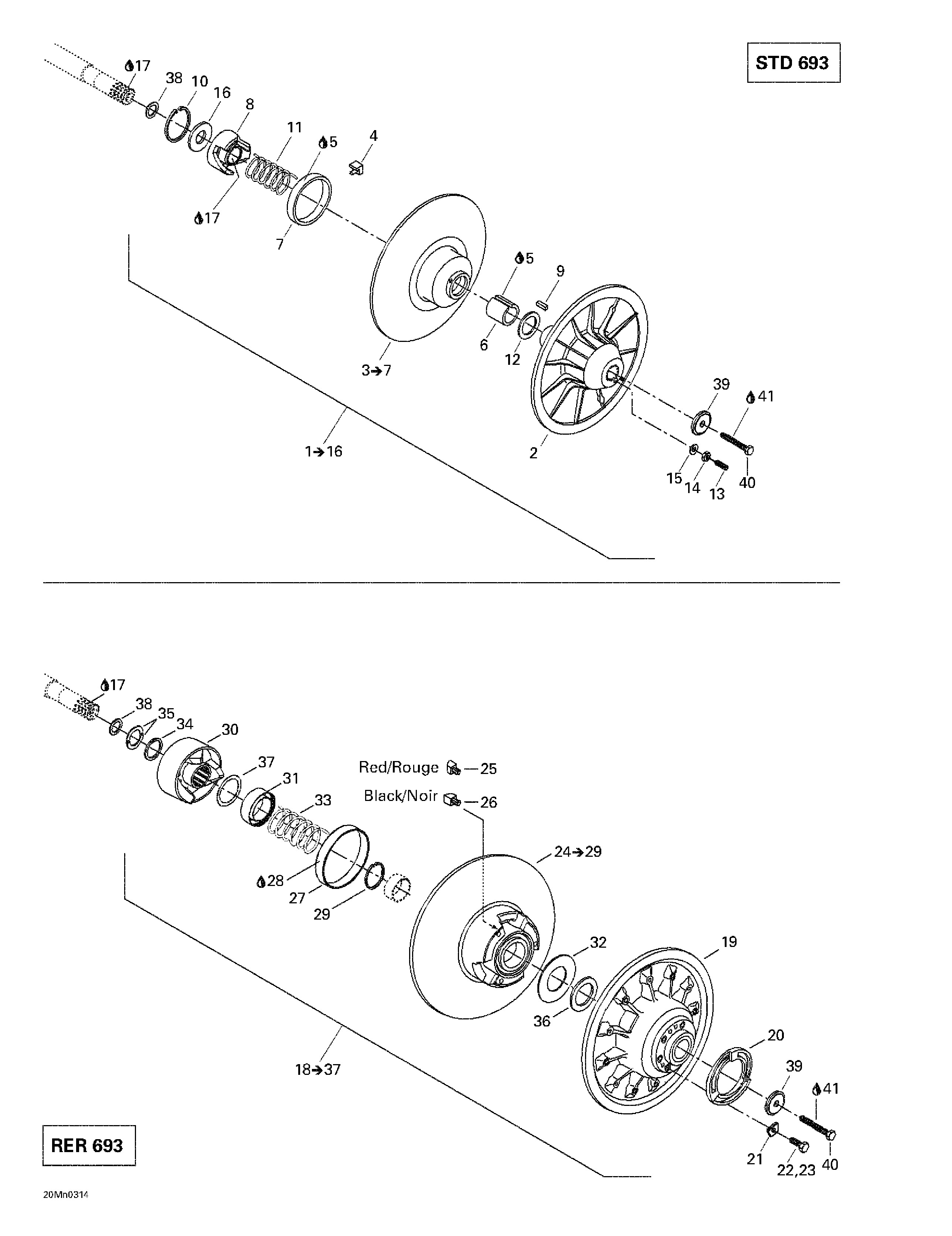

05- Driven Pulley (693) для BRP Ski-Doo Summit 600 HO/700/800 HO - 2003

  • №
    Артикул
    Название
  • 2
    417126663 Fixed flange. Summit 700.
    Fixed flange. Summit 700.
  • 3
    417126486 Sliding flange ass'y. Includes 3 - 7. Summit 700.
    Sliding flange ass'y. Includes 3 - 7. Summit 700.
  • 4
    414918000 Cam slider shoe. Summit 700.
    Cam slider shoe. Summit 700.
  • 5
    413703100 Loctite 609, 10 ml. Summit 700.
    Loctite 609, 10 ml. Summit 700.
  • 6
    415011200 Bushing. Summit 700.
    Bushing. Summit 700.
  • 7
    414876600 Cushion. Summit 700.
    Cushion. Summit 700.
  • 8
    417126337 Came 47 Deg. Summit 700.
    Came 47 Deg. Summit 700.
  • 9
    414820800 Key. Summit 700.
    Key. Summit 700.
  • 10
    371903100 Circlip. Summit 700.
    Circlip. Summit 700.
  • 11
    414558900 Release spring (beige). Summit 700.
    Release spring (beige). Summit 700.
  • 12
    504141900 Thrust washer. Summit 700.
    Thrust washer. Summit 700.
  • 13
    206263044 Pressure screw M6 x 30. Summit 700.
    Pressure screw M6 x 30. Summit 700.
  • 14
    232061414 Hex nut M6. Summit 700.
    Hex nut M6. Summit 700.
  • 15
    420245370 Washer. Summit 700.
    Washer. Summit 700.
  • 16
    504141800 Washer. Summit 700.
    Washer. Summit 700.
  • 17
    293800070 Loctite 767, antiseize lubricant, 8 oz. Summit 700.
    Loctite 767, antiseize lubricant, 8 oz. Summit 700.
  • 18
    417126556 Driven pulley ass'y. Includes 18 - 37. RER 700 ADRENALINE. RER 700 X. RER 700 HIGHMARK Summit 700.
    Driven pulley ass'y. Includes 18 - 37. RER 700 ADRENALINE. RER 700 X. RER 700 HIGHMARK Summit 700.
  • 19
    417126527 Fixed flange. Summit 700.
    Fixed flange. Summit 700.
  • 20
    415005800 Adjustment ring. Summit 700.
    Adjustment ring. Summit 700.
  • 21
    415005900 Adjustment shim. Summit 700.
    Adjustment shim. Summit 700.
  • 22
    207162544 Screw M6 x 25. Summit 700.
    Screw M6 x 25. Summit 700.
  • 23
    207162244 Screw M6 x 22. Summit 700.
    Screw M6 x 22. Summit 700.
  • 24
    417126318 Sliding flange ass'y. Includes 24 - 29. Summit 700.
    Sliding flange ass'y. Includes 24 - 29. Summit 700.
  • 25
    417126373 Rear cam slider shoe. Summit 700.
    Rear cam slider shoe. Summit 700.
  • 26
    417126374 Front cam slider shoe. Summit 700.
    Front cam slider shoe. Summit 700.
  • 27
    414978100 Bushing. Summit 700.
    Bushing. Summit 700.
  • 28
    413703100 Loctite 609, 10 ml. Summit 700.
    Loctite 609, 10 ml. Summit 700.
  • 29
    371911200 Circlip. Summit 700.
    Circlip. Summit 700.
  • 30
    417126445 Cam ass'y. RER 700 ADRENALINE. RER 700 X. RER 700 HIGHMARK Summit 700.
    Cam ass'y. RER 700 ADRENALINE. RER 700 X. RER 700 HIGHMARK Summit 700.
  • 31
    417126381 Guard. Summit 700.
    Guard. Summit 700.
  • 32
    504099600 Stopper washer. Summit 700.
    Stopper washer. Summit 700.
  • 33
    414978300 Release spring (violet). Summit 700.
    Release spring (violet). Summit 700.
  • 34
    417126375 Spacer. Summit 700.
    Spacer. Summit 700.
  • 35
    371911000 Half key. Summit 700.
    Half key. Summit 700.
  • 36
    504112300 Shim. Summit 700.
    Shim. Summit 700.
  • 37
    417126322 Abutment swivel. Summit 700.
    Abutment swivel. Summit 700.
  • 38
    504149100 Spacer. Summit 700.
    Spacer. Summit 700.
  • 39
    517302322 Washer-strength. Summit 700.
    Washer-strength. Summit 700.
  • 40
    207087544 Hex screw M8 x 75. Summit 700.
    Hex screw M8 x 75. Summit 700.
  • 41
    293800060 Loctite 243, 10 ml. Summit 700.
    Loctite 243, 10 ml. Summit 700.
