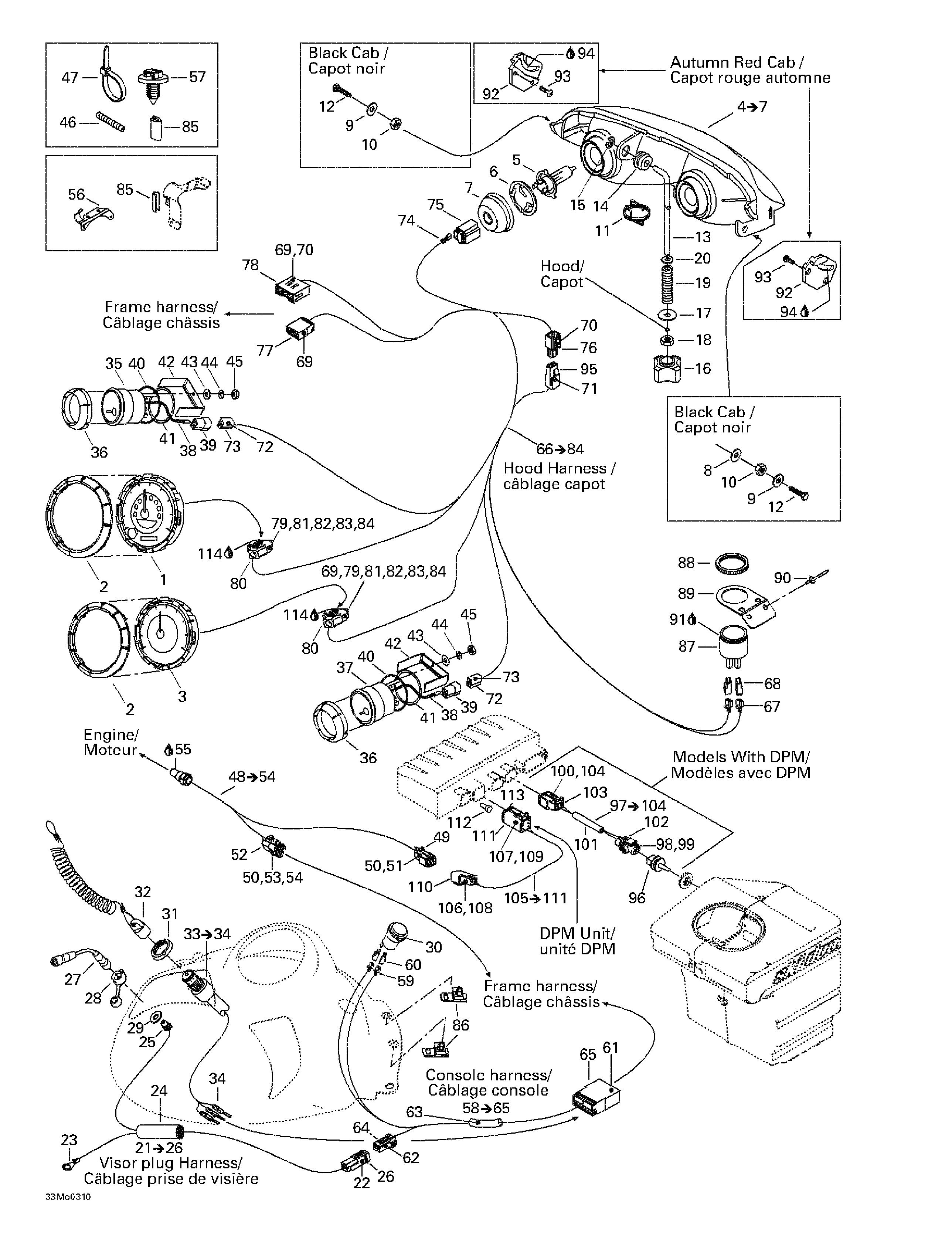

10- Electrical System для BRP Ski-Doo Grand Touring 500/600/700 - 2003

  • №
    Артикул
    Название
  • 1
    515175683 Speedometer (SE-AIR). Grand Touring 600. Grand Touring 700.
    Speedometer (SE-AIR). Grand Touring 600. Grand Touring 700.
  • 1
    515175942 Speedometer (SPORT, SE)
    Speedometer (SPORT, SE)
  • 2
    515175651 Gauge ring
    Gauge ring
  • 3
    515175943 Tachometer
    Tachometer
  • 4
    515175909 Halogen headlamp. Includes 4 - 7.
    Halogen headlamp. Includes 4 - 7.
  • 5
    410504401 Halogen bulb 60/55W 12V
    Halogen bulb 60/55W 12V
  • 6
    515175910 Bulb holder
    Bulb holder
  • 7
    515175911 Cover
    Cover
  • 8
    234001410 Flat washer M10 (Black Cab)
    Flat washer M10 (Black Cab)
  • 9
    234051410 Flat washer M5 (Black Cab)
    Flat washer M5 (Black Cab)
  • 10
    250100018 Cushion nut M5 x 0.8mm (Black Cab)
    Cushion nut M5 x 0.8mm (Black Cab)
  • 11
    515175324 Spring (Autumn Red Cab Europe). Grand Touring 500. Grand Touring 600.
    Spring (Autumn Red Cab Europe). Grand Touring 500. Grand Touring 600.
  • 12
    207053544 Hex screw M5 x 35 (Black Cab)
    Hex screw M5 x 35 (Black Cab)
  • 13
    517295800 Adjuster rod
    Adjuster rod
  • 14
    415100800 Grommet
    Grommet
  • 15
    732610072 Push Nut
    Push Nut
  • 16
    515175548 Handle
    Handle
  • 17
    224060251 Washer
    Washer
  • 18
    232561414 Hex elastic nut M6
    Hex elastic nut M6
  • 19
    415100600 Spring
    Spring
  • 20
    234061410 Flat washer M6
    Flat washer M6
  • 21
    515175799 Visor Plug Harness. Includes 21 - 26.
    Visor Plug Harness. Includes 21 - 26.
  • 22
    515175232 Male Terminal
    Male Terminal
  • 24
    515175332 Tubing 1/4''
    Tubing 1/4''
  • 26
    515175654 Male Housing (2 circuits)
    Male Housing (2 circuits)
  • 27
    515175971 Visor Plug Extension
    Visor Plug Extension
  • 28
    572103300 Cap
    Cap
  • 29
    503175800 Washer
    Washer
  • 30
    710000024 Outlet Plug (SE). Grand Touring 600. Grand Touring 700.
    Outlet Plug (SE). Grand Touring 600. Grand Touring 700.
  • 31
    278000508 Safety nut
    Safety nut
  • 32
    515166900 D.E.S.S. cap
    D.E.S.S. cap
  • 33
    515175145 D.E.S.S. switch. Includes 33 - 34.
    D.E.S.S. switch. Includes 33 - 34.
  • 34
    515175232 Male terminal
    Male terminal
  • 35
    515175601 Temperature Gauge (SE). Grand Touring 600. Grand Touring 700.
    Temperature Gauge (SE). Grand Touring 600. Grand Touring 700.
  • 36
    515175711 Ring Gauge (SE). Grand Touring 600. Grand Touring 700.
    Ring Gauge (SE). Grand Touring 600. Grand Touring 700.
  • 37
    515175529 Fuel Gauge (SE). Grand Touring 600. Grand Touring 700.
    Fuel Gauge (SE). Grand Touring 600. Grand Touring 700.
  • 38
    409210000 Male Terminal (SE). Grand Touring 600. Grand Touring 700.
    Male Terminal (SE). Grand Touring 600. Grand Touring 700.
  • 39
    409204200 Male Terminal Housing (3 Circuits) (SE). Grand Touring 600. Grand Touring 700.
    Male Terminal Housing (3 Circuits) (SE). Grand Touring 600. Grand Touring 700.
  • 40
    414807200 O-Ring (SE). Grand Touring 600. Grand Touring 700.
    O-Ring (SE). Grand Touring 600. Grand Touring 700.
  • 41
    517258600 Formed Washer (SE). Grand Touring 600. Grand Touring 700.
    Formed Washer (SE). Grand Touring 600. Grand Touring 700.
  • 42
    415099800 Case Holder (SE). Grand Touring 600. Grand Touring 700.
    Case Holder (SE). Grand Touring 600. Grand Touring 700.
  • 43
    391301700 Flat Washer (SE). Grand Touring 600. Grand Touring 700.
    Flat Washer (SE). Grand Touring 600. Grand Touring 700.
  • 44
    414833700 Lock Washer (SE). Grand Touring 600. Grand Touring 700.
    Lock Washer (SE). Grand Touring 600. Grand Touring 700.
  • 45
    414833600 Nut (SE). Grand Touring 600. Grand Touring 700.
    Nut (SE). Grand Touring 600. Grand Touring 700.
  • 46
    409901800 Tubing 13 mm
    Tubing 13 mm
  • 415079900 Tubing 10 mm
    Tubing 10 mm
  • 415080000 Tubing 16 mm
    Tubing 16 mm
  • 515175332 Low Temp Tubing 1/4''
    Low Temp Tubing 1/4''
  • 515175314 Low Temp Housing 5/8''
    Low Temp Housing 5/8''
  • 47
    293750001 Tie-rap 94 mm
    Tie-rap 94 mm
  • 293750002 Tie-rap 130 mm
    Tie-rap 130 mm
  • 293750009 Tie-rap 160 mm
    Tie-rap 160 mm
  • 414115200 Tie-rap 180 mm
    Tie-rap 180 mm
  • 293750008 Tie-rap 350 mm
    Tie-rap 350 mm
  • 48
    515175930 Temperature sensor (SPORT). Includes 48 - 54.
    Temperature sensor (SPORT). Includes 48 - 54.
  • 515175820 Temperature sensor (SE). Grand Touring 600. Grand Touring 700.
    Temperature sensor (SE). Grand Touring 600. Grand Touring 700.
  • 49
    515175670 Female terminal housing (2 circuits)
    Female terminal housing (2 circuits)
  • 50
    278000632 Female terminal
    Female terminal
  • 51
    515175675 Female lock (2 circuits)
    Female lock (2 circuits)
  • 52
    515175671 Female terminal housing (3 circuits)
    Female terminal housing (3 circuits)
  • 53
    515175676 Female lock (3 circuits)
    Female lock (3 circuits)
  • 54
    293000052 Plug
    Plug
  • 55
    293800018 Loctite 592, pipe sealant, 50 g
    Loctite 592, pipe sealant, 50 g
  • 56
    515175254 Cable support
    Cable support
  • 57
    293730018 Mount dart
    Mount dart
  • 58
    515175826 Console Harness. Includes 58 - 65.
    Console Harness. Includes 58 - 65.
  • 59
    409010100 Female terminal
    Female terminal
  • 60
    409010400 Female terminal housing (1 circuit)
    Female terminal housing (1 circuit)
  • 61
    515175232 Male terminal
    Male terminal
  • 62
    515175231 Female terminal
    Female terminal
  • 63
    515175314 Low Temp Housing 5/8''
    Low Temp Housing 5/8''
  • 64
    515175658 Female terminal housing (2 circuits)
    Female terminal housing (2 circuits)
  • 65
    515175662 Male terminal Housing (6 Circuits)
    Male terminal Housing (6 Circuits)
  • 66
    515175827 Hood harness. Includes 66 - 84.
    Hood harness. Includes 66 - 84.
  • 67
    409010100 Female terminal
    Female terminal
  • 68
    409010400 Female terminal housing (1 circuit)
    Female terminal housing (1 circuit)
  • 69
    515175232 Male terminal
    Male terminal
  • 70
    515175273 Male terminal
    Male terminal
  • 71
    515175282 Female terminal
    Female terminal
  • 72
    561503100 Female terminal
    Female terminal
  • 73
    409204300 Female terminal housing (3 circuit)
    Female terminal housing (3 circuit)
  • 74
    515175321 Female terminal
    Female terminal
  • 75
    409202700 Female terminal housing (3 circuits)
    Female terminal housing (3 circuits)
  • 76
    515175509 Male terminal housing (1 circuit)
    Male terminal housing (1 circuit)
  • 77
    515175662 Male terminal housing (6 circuits)
    Male terminal housing (6 circuits)
  • 78
    515175720 Male terminal housing (11 circuits)
    Male terminal housing (11 circuits)
  • 79
    515175812 Plug
    Plug
  • 80
    515175801 Female terminal housing (24 circuits)
    Female terminal housing (24 circuits)
  • 81
    515175802 Housing support
    Housing support
  • 82
    515175803 Seal
    Seal
  • 83
    515175804 Housing
    Housing
  • 84
    515175806 Female terminal
    Female terminal
  • 85
    271000110 Protection Trim
    Protection Trim
  • 86
    515175283 Housing support
    Housing support
  • 87
    415060900 Horn
    Horn
  • 88
    414805101 Plastic nut
    Plastic nut
  • 89
    515175688 Plate
    Plate
  • 90
    390402200 Pop rivet 3/16''
    Pop rivet 3/16''
  • 91
    296000309 Sealant Silicone, Clear
    Sealant Silicone, Clear
  • 92
    517289300 R.h. support
    R.h. support
  • 517289400 L.h. support
    L.h. support
  • 93
    732601315 Headlamp screw (Autumn Red Cab)
    Headlamp screw (Autumn Red Cab)
  • 94
    413707500 Grease tube LMZ, 400 g
    Grease tube LMZ, 400 g
  • 95
    515175510 Female terminal housing (1 circuit)
    Female terminal housing (1 circuit)
  • 96
    270600000 Air sensor (DPM). Grand Touring 500. Grand Touring 700. .
    Air sensor (DPM). Grand Touring 500. Grand Touring 700. .
  • 97
    515175703 Air temperature harness (DPM). Includes 97 - 104. Grand Touring 600. Grand Touring 700.
    Air temperature harness (DPM). Includes 97 - 104. Grand Touring 600. Grand Touring 700.
  • 98
    278000998 Female terminal
    Female terminal
  • 99
    278000999 Seal
    Seal
  • 100
    278000632 Female terminal
    Female terminal
  • 101
    515175332 Low temperatue tubing 1/4''
    Low temperatue tubing 1/4''
  • 102
    515175588 Female terminal housing (2 circuits)
    Female terminal housing (2 circuits)
  • 103
    515175670 Female terminal housing (2 circuits)
    Female terminal housing (2 circuits)
  • 104
    515175706 Female lock (2 circuits)
    Female lock (2 circuits)
  • 105
    515175898 Sensor harness. Includes 105 - 111.
    Sensor harness. Includes 105 - 111.
  • 106
    278000631 Male terminal
    Male terminal
  • 107
    278000632 Female terminal
    Female terminal
  • 108
    409207500 Male lock (2 circuits)
    Male lock (2 circuits)
  • 109
    293000052 Plug
    Plug
  • 110
    517175665 Male terminal housing (2 circuits)
    Male terminal housing (2 circuits)
  • 111
    515175673 Female terminal housing (6 circuits)
    Female terminal housing (6 circuits)
  • 112
    293000052 Sealing cap (Without DPM)
    Sealing cap (Without DPM)
  • 113
    515175678 Male wedge (6 circuits)
    Male wedge (6 circuits)
  • 114
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
