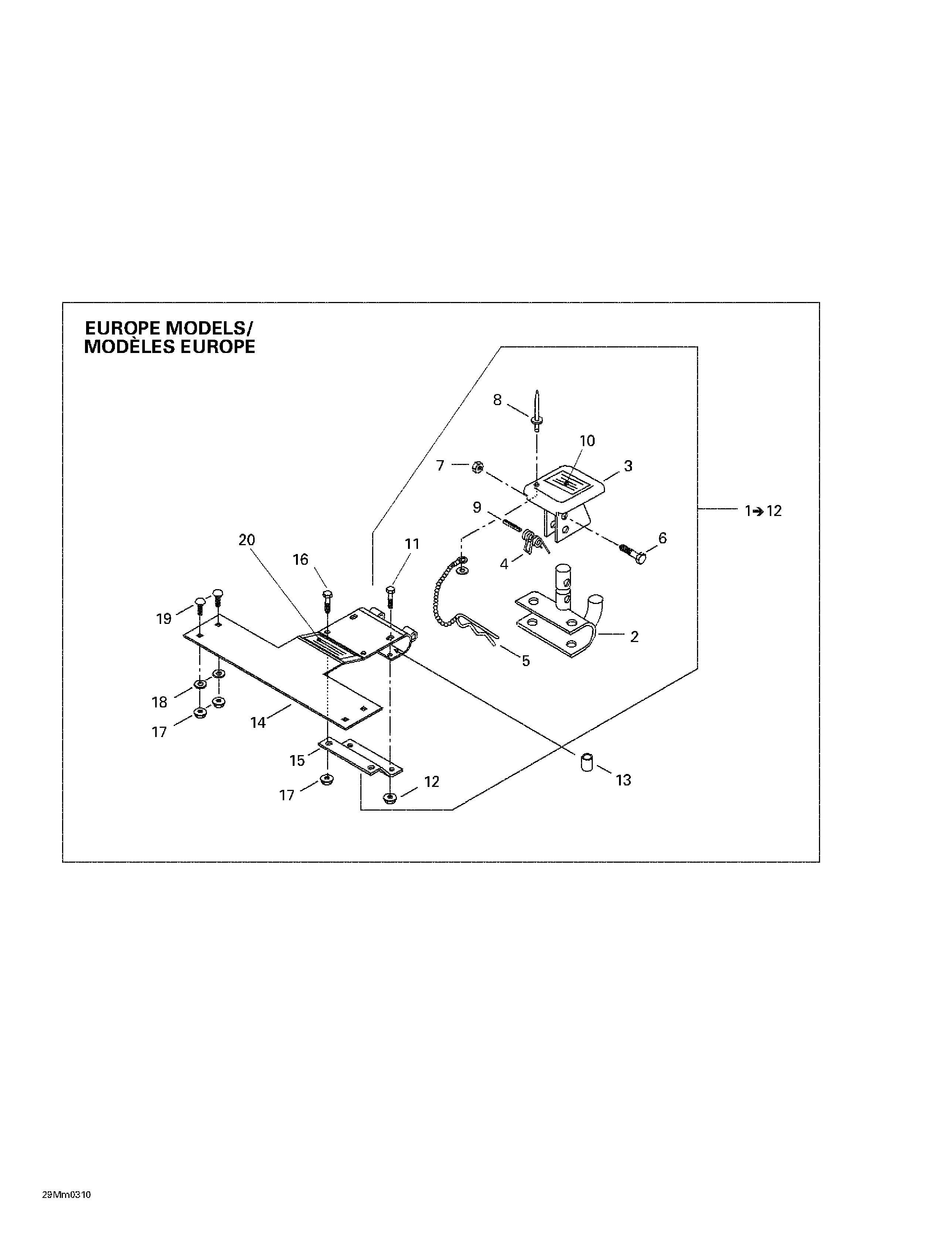

09- Hitch (Europe) для BRP Ski-Doo Grand Touring 500/600/700 - 2003
-
№АртикулНазвание
-
1861778700 Hitch ass'y Kit (EUROPE ONLY). Includes 1 - 12. Grand Touring 500. Grand Touring 600.Hitch ass'y Kit (EUROPE ONLY). Includes 1 - 12. Grand Touring 500. Grand Touring 600.
-
2517199300 Hitch. Grand Touring 500. Grand Touring 600.Hitch. Grand Touring 500. Grand Touring 600.
-
3517152700 Hitch protector. Grand Touring 500. Grand Touring 600.Hitch protector. Grand Touring 500. Grand Touring 600.
-
4517152800 Spring. Grand Touring 500. Grand Touring 600.Spring. Grand Touring 500. Grand Touring 600.
-
5114045200 Hair pin. Grand Touring 500. Grand Touring 600.Hair pin. Grand Touring 500. Grand Touring 600.
-
6207063044 Hex screw M6 x 30. Grand Touring 500. Grand Touring 600.Hex screw M6 x 30. Grand Touring 500. Grand Touring 600.
-
7232561414 Hex elastic nut M6. Grand Touring 500. Grand Touring 600.Hex elastic nut M6. Grand Touring 500. Grand Touring 600.
-
8390409400 Pop rivet 5/32''. Grand Touring 500. Grand Touring 600.Pop rivet 5/32''. Grand Touring 500. Grand Touring 600.
-
9732804000 Spring pin M3 x 24. Grand Touring 500. Grand Touring 600.Spring pin M3 x 24. Grand Touring 500. Grand Touring 600.
-
10516001243 Hitch security label. Grand Touring 500. Grand Touring 600.Hitch security label. Grand Touring 500. Grand Touring 600.
-
11207065044 Hex screw M6 x 50. Grand Touring 500. Grand Touring 600.Hex screw M6 x 50. Grand Touring 500. Grand Touring 600.
-
12233261414 Hex flanged elastic nut M6. Grand Touring 500. Grand Touring 600.Hex flanged elastic nut M6. Grand Touring 500. Grand Touring 600.
-
13517191700 Spacer. Grand Touring 500. Grand Touring 600.Spacer. Grand Touring 500. Grand Touring 600.
-
14511000217 Fixation. Grand Touring 500. Grand Touring 600.Fixation. Grand Touring 500. Grand Touring 600.
-
15517223500 Reinforcement. Grand Touring 500. Grand Touring 600.Reinforcement. Grand Touring 500. Grand Touring 600.
-
16207162044 Hex screw M6 x 20. Grand Touring 500. Grand Touring 600.Hex screw M6 x 20. Grand Touring 500. Grand Touring 600.
-
17233261414 Hex flanged elastic nut M6. Grand Touring 500. Grand Touring 600.Hex flanged elastic nut M6. Grand Touring 500. Grand Touring 600.
-
18224061201 Flat washer. Grand Touring 500. Grand Touring 600.Flat washer. Grand Touring 500. Grand Touring 600.
-
19207762044 Carriage bolt M6 x 20. Grand Touring 500. Grand Touring 600.Carriage bolt M6 x 20. Grand Touring 500. Grand Touring 600.
-
20516001709 Hitch security label (Europe). Grand Touring 500. Grand Touring 600.Hitch security label (Europe). Grand Touring 500. Grand Touring 600.
