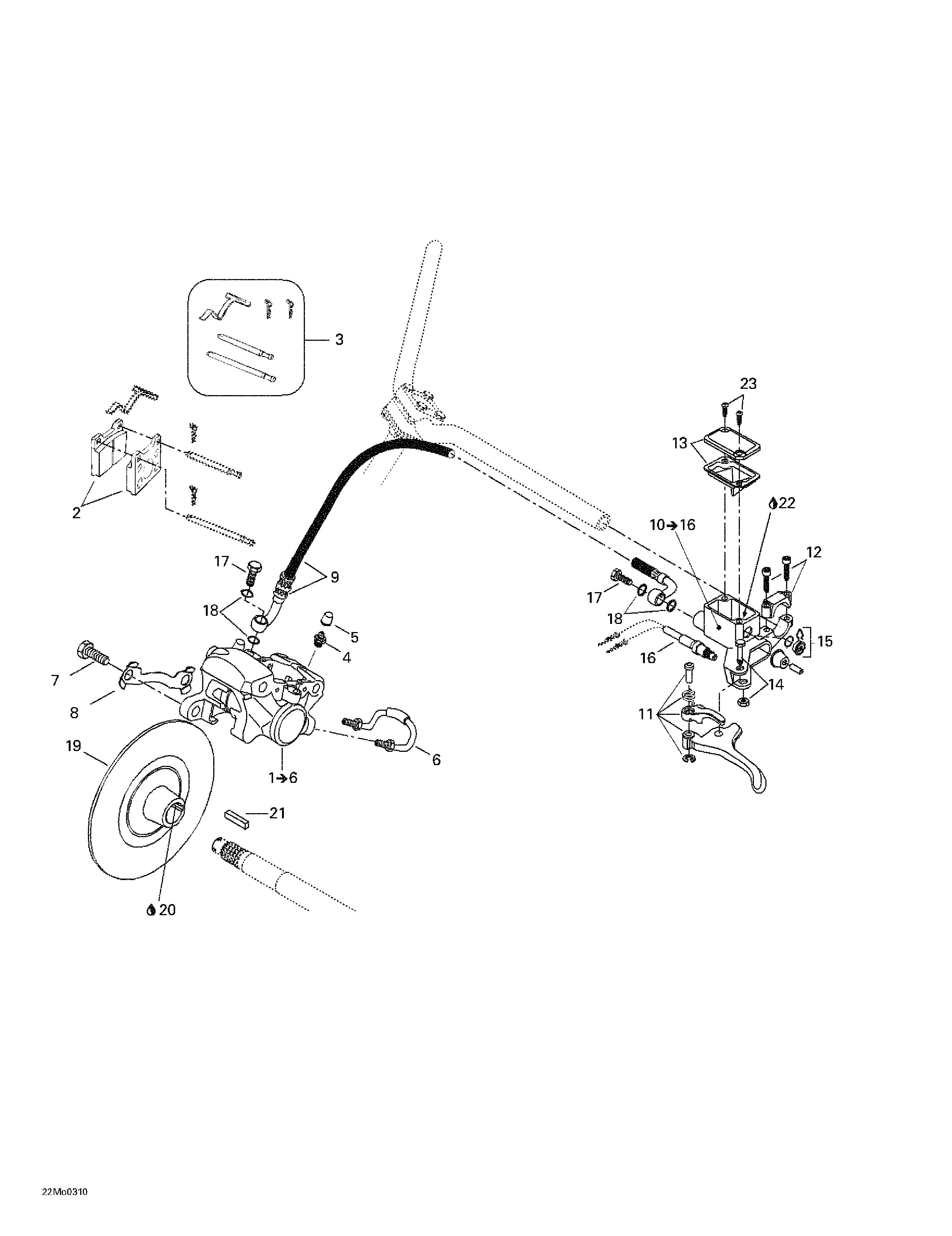

06- Hydraulic Brake для BRP Ski-Doo Grand Touring 500/600/700 - 2003

-
№АртикулНазвание
-
1507032349 Caliper. Includes 1 - 6.Caliper. Includes 1 - 6.
-
2415053600 Brake pad kitBrake pad kit
-
3414990700 Kit (pins, retainers, spring)Kit (pins, retainers, spring)
-
4414989800 Bleeder screwBleeder screw
-
5414989700 CapCap
-
6414989900 Rigid tubeRigid tube
-
7207103544 Hex screw M10 x 35Hex screw M10 x 35
-
8507032316 Tab lockTab lock
-
9507032237 Hose (SPORT)Hose (SPORT)
-
507032359 Hose (SE). Grand Touring 600. Grand Touring 700.Hose (SE). Grand Touring 600. Grand Touring 700.
-
10507032362 Master cylinder. Includes 10 - 16.Master cylinder. Includes 10 - 16.
-
11507032268 Brake Short Lever Ass'yBrake Short Lever Ass'y
-
12415029800 Clamp ass'yClamp ass'y
-
13415029900 CapCap
-
14415030000 Lever pinLever pin
-
15414990600 WindowWindow
-
16507032366 MicroswitchMicroswitch
-
17414920500 Banjo boltBanjo bolt
-
18414920600 Rondelle pour connectionRondelle pour connection
-
19507032203 Brake disk. Grand Touring 500.Brake disk. Grand Touring 500.
-
507031300 Brake disk. Grand Touring 600. Grand Touring 700.Brake disk. Grand Touring 600. Grand Touring 700.
-
20293800070 Loctite 767, antiseize lubricant, 8 ozLoctite 767, antiseize lubricant, 8 oz
-
21507021300 KeyKey
-
22293600063 Brake fluid, SRF (DOT 4)Brake fluid, SRF (DOT 4)
-
293600062 Brake fluid, GTLMA (DOT 4) 12 x 354 mlBrake fluid, GTLMA (DOT 4) 12 x 354 ml
-
23216141260 ScrewScrew
