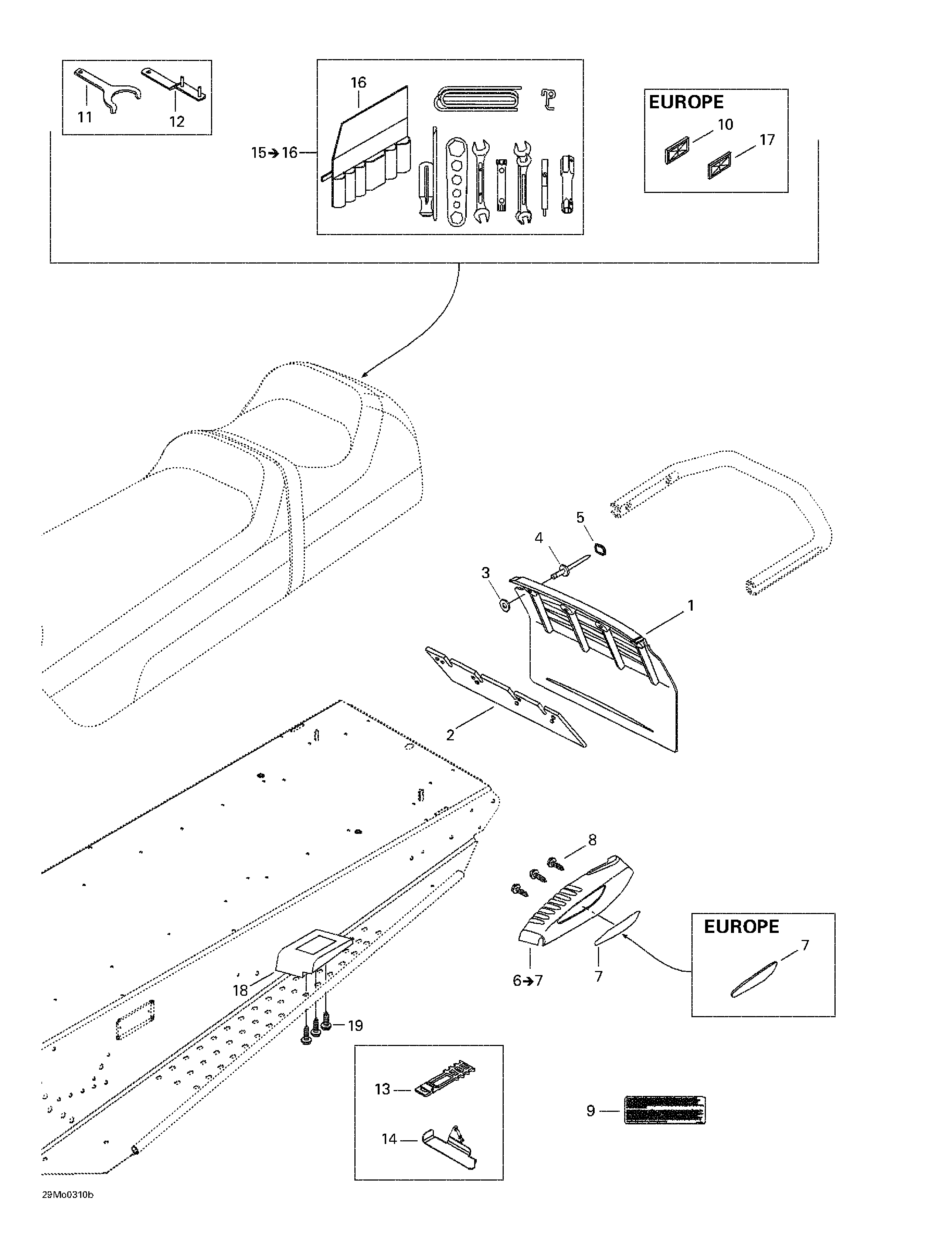

09- Frame And Accessories для BRP Ski-Doo Grand Touring 500/600/700 - 2003
-
№АртикулНазвание
-
1520000229 Snow guard (CANADA/US)Snow guard (CANADA/US)
-
520000228 Snow guard (EUROPE). Grand Touring 500. Grand Touring 600.Snow guard (EUROPE). Grand Touring 500. Grand Touring 600.
-
2572108200 ReinforcementReinforcement
-
3517225900 Flat washerFlat washer
-
4293150087 Pop rivet 3/16''Pop rivet 3/16''
-
5415073300 CapCap
-
6861780100 R.h. moulding Kit. Includes 6 - 7.R.h. moulding Kit. Includes 6 - 7.
-
861780200 L.h. moulding KitL.h. moulding Kit
-
7516000237 R.H. reflector Red (CANADA/US)R.H. reflector Red (CANADA/US)
-
516000241 R.H. reflector Yellow (EUROPE). Grand Touring 500. Grand Touring 600.R.H. reflector Yellow (EUROPE). Grand Touring 500. Grand Touring 600.
-
516000238 LH reflector Red (CANADA/US)LH reflector Red (CANADA/US)
-
516000242 L.H. reflector Yellow (EUROPE). Grand Touring 500. Grand Touring 600.L.H. reflector Yellow (EUROPE). Grand Touring 500. Grand Touring 600.
-
8243141640 flanged plastite screw M4.8 x 16flanged plastite screw M4.8 x 16
-
9516001681 Pending labelPending label
-
10520000271 Reflector amber (EUROPE)Reflector amber (EUROPE)
-
11529032900 Adjustment wrenchAdjustment wrench
-
12520000126 Adjustment wrenchAdjustment wrench
-
13570069700 LatchLatch
-
14518321999 Tool kit supportTool kit support
-
15529035596 Tool kit. Includes 15 - 16.Tool kit. Includes 15 - 16.
-
16520000047 Tool bagTool bag
-
17415037900 Reflector white (EUROPE)Reflector white (EUROPE)
-
18572088700 R.H. Footrest (SPORT, SE)R.H. Footrest (SPORT, SE)
-
520000261 R.H. Footrest (SE-AIR). Grand Touring 600. Grand Touring 700.R.H. Footrest (SE-AIR). Grand Touring 600. Grand Touring 700.
-
572088800 L.H. FootrestL.H. Footrest
-
19243141640 flanged plastite screw M4.8 x 16flanged plastite screw M4.8 x 16
