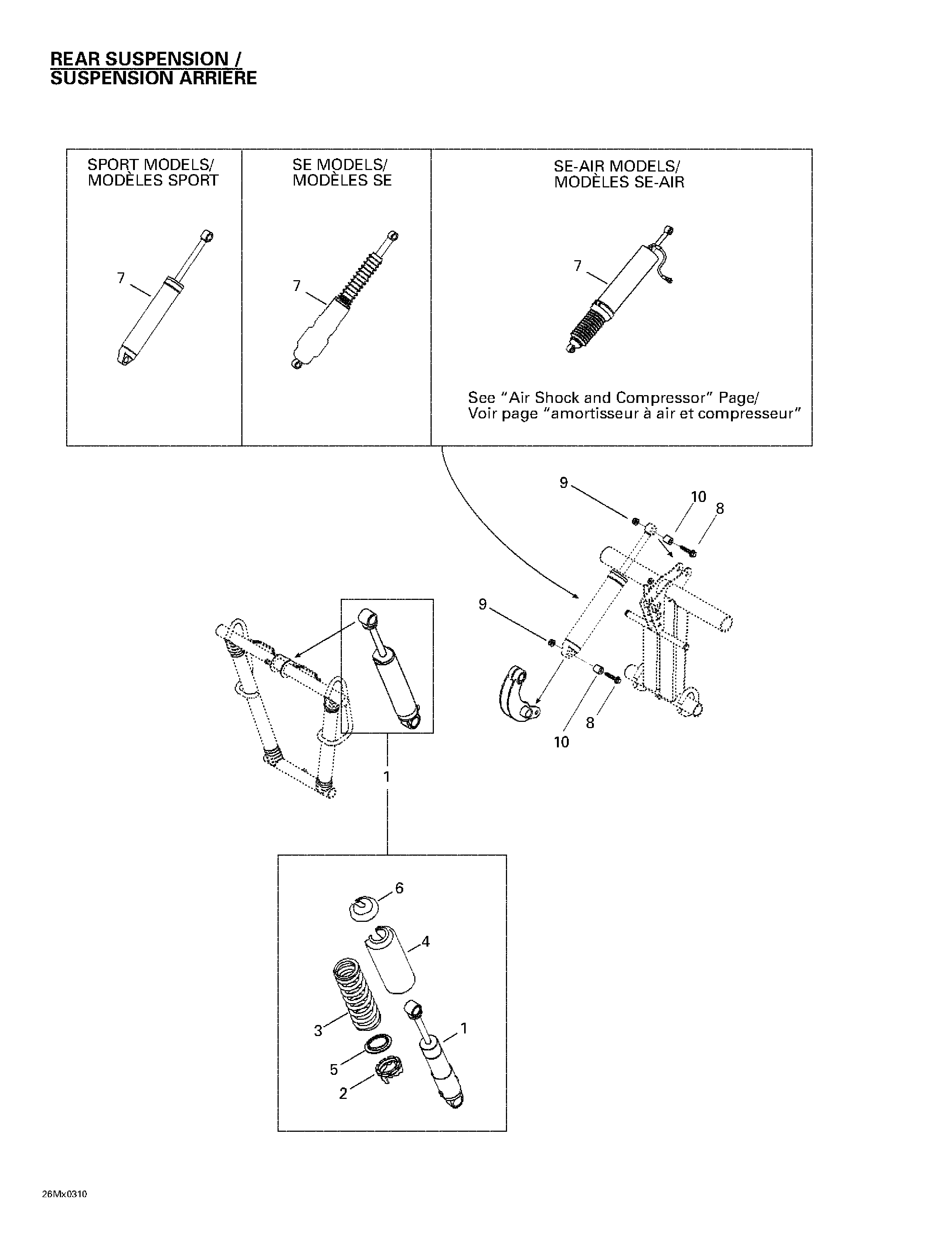

08- Rear Shocks для BRP Ski-Doo Grand Touring 500/600/700 - 2003
-
№АртикулНазвание
-
1503190026 Center ShockCenter Shock
-
2505070150 Cam 45 DegCam 45 Deg
-
3503189659 SpringSpring
-
4503188930 ProtectorProtector
-
5517184300 Spring GuideSpring Guide
-
6503140600 Spring StopperSpring Stopper
-
7503190005 Rear Shock (SE). Grand Touring 600. Grand Touring 700.Rear Shock (SE). Grand Touring 600. Grand Touring 700.
-
415128448 Rear Air Shock (SE-AIR SHOCK). Grand Touring 600. Grand Touring 700.Rear Air Shock (SE-AIR SHOCK). Grand Touring 600. Grand Touring 700.
-
503190259 Rear Shock (SPORT)Rear Shock (SPORT)
-
503190204 Rear Shock (500 SPORT EUROPE). Grand Touring 500.Rear Shock (500 SPORT EUROPE). Grand Touring 500.
-
8207684044 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
9233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
10414936000 CushionCushion
