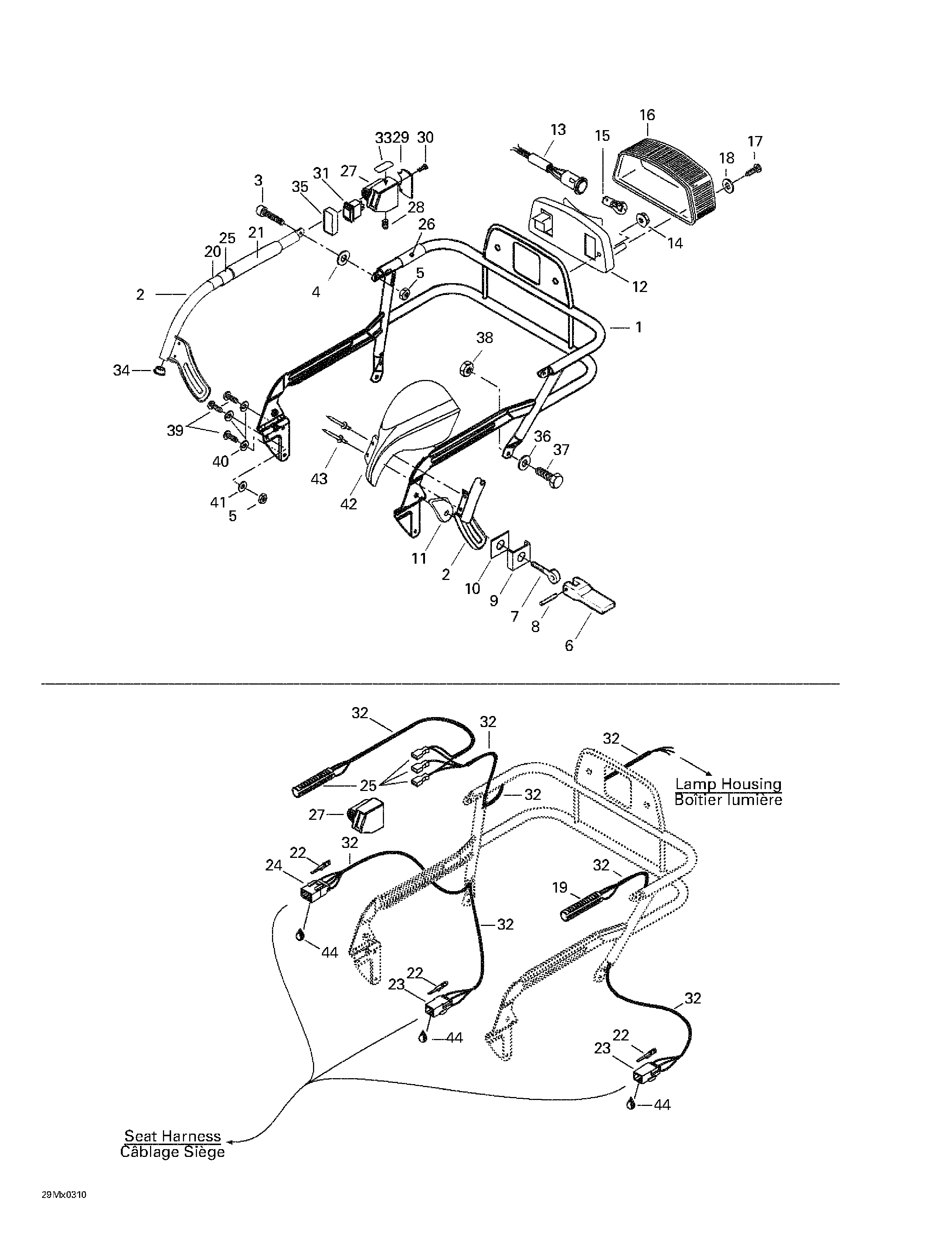

09- Luggage Rack для BRP Ski-Doo Grand Touring 500/600/700 - 2003
-
№АртикулНазвание
-
1511000124 Rack Ass'yRack Ass'y
-
2511000012 R.H. Arm (Rack)R.H. Arm (Rack)
-
517300900 L.H. Arm (Rack)L.H. Arm (Rack)
-
3205061644 Socket Head Screw M6 x 16Socket Head Screw M6 x 16
-
4234062100 Flat Washer 6 mmFlat Washer 6 mm
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6572038200 Lock LeverLock Lever
-
7517250100 Eye BoltEye Bolt
-
8414821400 PinPin
-
9511000226 GuideGuide
-
10570063800 Outer SpacerOuter Spacer
-
11572088900 Spacer BlockSpacer Block
-
12515175397 Lamp HousingLamp Housing
-
13511000224 SocketSocket
-
14233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
15410504100 BulbBulb
-
16414513700 LensLens
-
17209632540 Phillips ScrewPhillips Screw
-
18414516400 WasherWasher
-
19515175710 HeaterHeater
-
20414988700 Reflective SheetReflective Sheet
-
21415050200 L.H. Grip (370 mm)L.H. Grip (370 mm)
-
415050300 R.H. Grip (250 mm)R.H. Grip (250 mm)
-
22515175232 Male TerminalMale Terminal
-
23515175494 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
24515175846 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
25515175882 Heater with TerminalsHeater with Terminals
-
26415050400 Grip (Short) (60 mm)Grip (Short) (60 mm)
-
27572089200 Switch HousingSwitch Housing
-
28206580890 Screw Set M8 x 8Screw Set M8 x 8
-
29572089300 PlatePlate
-
30732601255 ScrewScrew
-
31511000001 Rocker SwitchRocker Switch
-
32515175332 Low Temp Tubing (Vinyl)Low Temp Tubing (Vinyl)
-
33418001800 Heat Grip DecalHeat Grip Decal
-
34572110800 CapCap
-
35511000002 Switch ProtectorSwitch Protector
-
36234081410 Flat Washer 8 mmFlat Washer 8 mm
-
37207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
38233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
39210261680 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
40234161601 Lock Washer 6 mmLock Washer 6 mm
-
41391302100 Flat WasherFlat Washer
-
42572089400 R.H. ProtectorR.H. Protector
-
572089500 L.H. ProtectorL.H. Protector
-
43293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
44293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
