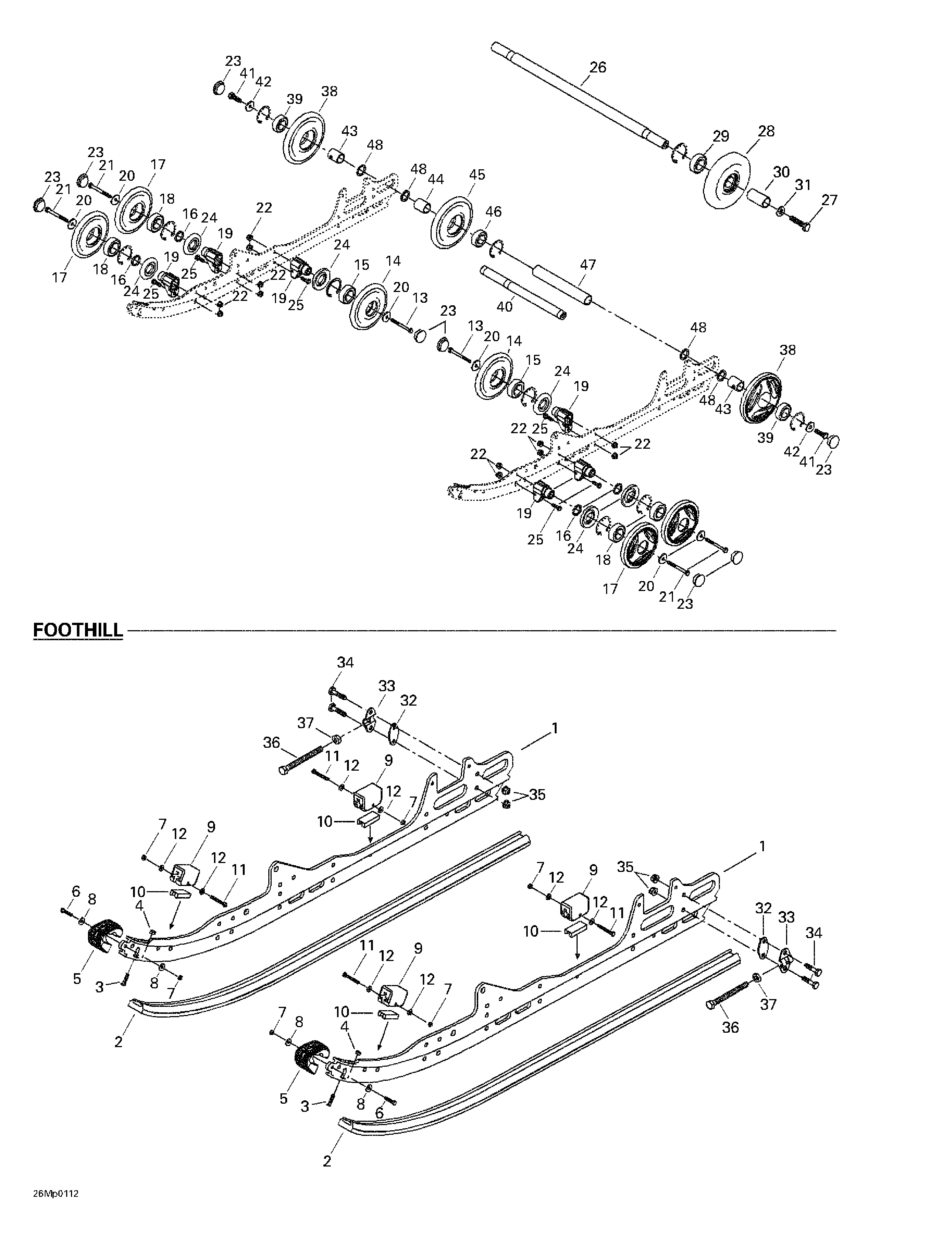

08- Rear Suspension (foothill) для BRP Ski-Doo Summit 600/700/800 - 2001
-
№АртикулНазвание
-
1503189415 Runner. Summit 800.Runner. Summit 800.
-
2503189639 Runner Shoe. Summit 800.Runner Shoe. Summit 800.
-
3208562560 Countersunk Head Screw M6 x 25. Summit 800.Countersunk Head Screw M6 x 25. Summit 800.
-
4232561414 Elastic Stop Nut M6. Summit 800.Elastic Stop Nut M6. Summit 800.
-
5572075400 Runner Protector. Summit 800.Runner Protector. Summit 800.
-
6207152544 Hex. Screw M5 x 25. Summit 800.Hex. Screw M5 x 25. Summit 800.
-
7232551414 Elastic Stop Nut M5. Summit 800.Elastic Stop Nut M5. Summit 800.
-
8391301600 Flat Washer. Summit 800.Flat Washer. Summit 800.
-
9570063000 Rubber Stopper. Summit 800.Rubber Stopper. Summit 800.
-
10572084800 Stopper Reinforcement. Summit 800.Stopper Reinforcement. Summit 800.
-
11207054044 Hex. Screw M5 x 40. Summit 800.Hex. Screw M5 x 40. Summit 800.
-
12391301700 Flat Washer. Summit 800.Flat Washer. Summit 800.
-
13207088044 Hex. Screw M8 x 80. Summit 800.Hex. Screw M8 x 80. Summit 800.
-
14503188997 Wheel 135 Ass'y. Includes 14 - 15. Summit 800.Wheel 135 Ass'y. Includes 14 - 15. Summit 800.
-
15405404500 Ball Bearing 6205. Summit 800.Ball Bearing 6205. Summit 800.
-
16503173700 Washer. Summit 800.Washer. Summit 800.
-
17572097612 Wheel 135 (Yellow 2000) B190. Includes 17 - 18. Summit 800.Wheel 135 (Yellow 2000) B190. Includes 17 - 18. Summit 800.
-
18405404500 Ball Bearing 6205. Summit 800.Ball Bearing 6205. Summit 800.
-
19503174600 Support. Summit 800.Support. Summit 800.
-
20503183100 Washer. Summit 800.Washer. Summit 800.
-
21207088544 Hex. Screw M8 x 85. Summit 800.Hex. Screw M8 x 85. Summit 800.
-
22233281414 Elastic Flanged Stop Nut M8. Summit 800.Elastic Flanged Stop Nut M8. Summit 800.
-
23570063600 Wheel Cap. Summit 800.Wheel Cap. Summit 800.
-
24572089000 Labyrinth Seal. Summit 800.Labyrinth Seal. Summit 800.
-
25207182544 Hex. Screw M8 x 25. Summit 800.Hex. Screw M8 x 25. Summit 800.
-
26503153600 Idler Wheel Axle. Summit 800.Idler Wheel Axle. Summit 800.
-
27207383044 Hex. Screw M8 x 30 (Scotch Grip). Summit 800.Hex. Screw M8 x 30 (Scotch Grip). Summit 800.
-
28572043500 Idler Wheel. Includes 28 - 29. Summit 800.Idler Wheel. Includes 28 - 29. Summit 800.
-
29405404600 Ball Bearing 6205. Summit 800.Ball Bearing 6205. Summit 800.
-
30572048300 Spacer. Summit 800.Spacer. Summit 800.
-
31503189157 Washer. Summit 800.Washer. Summit 800.
-
32503189160 Tensioner Spacer. Summit 800.Tensioner Spacer. Summit 800.
-
33503155300 Tensioner. Summit 800.Tensioner. Summit 800.
-
34207063044 Hex. Screw M6 x 30. Summit 800.Hex. Screw M6 x 30. Summit 800.
-
35233261414 Elastic Flanged Stop Nut M6. Summit 800.Elastic Flanged Stop Nut M6. Summit 800.
-
36230100044 Hex. Screw M10 x 100. Summit 800.Hex. Screw M10 x 100. Summit 800.
-
37233601416 Elastic Locking Nut M10. Summit 800.Elastic Locking Nut M10. Summit 800.
-
38503189566 Wheel 165 (Yellow 2000) B190. Includes 38 - 39. Summit 800.Wheel 165 (Yellow 2000) B190. Includes 38 - 39. Summit 800.
-
39405404500 Ball Bearing 6205. Summit 800.Ball Bearing 6205. Summit 800.
-
40503160700 Rear Axle. Summit 800.Rear Axle. Summit 800.
-
41250000019 Hex. Screw with Nylon. Summit 800.Hex. Screw with Nylon. Summit 800.
-
42503183300 Washer. Summit 800.Washer. Summit 800.
-
43503189161 Outer Spacer. Summit 800.Outer Spacer. Summit 800.
-
44503182900 Inner Spacer (Short). Summit 800.Inner Spacer (Short). Summit 800.
-
45503189568 Wheel 165 Ass'y. Includes 45 - 46. Summit 800.Wheel 165 Ass'y. Includes 45 - 46. Summit 800.
-
46405404500 Ball Bearing 6205. Summit 800.Ball Bearing 6205. Summit 800.
-
47503183000 Long Spacer. Summit 800.Long Spacer. Summit 800.
-
48503180400 Washer. Summit 800.Washer. Summit 800.
