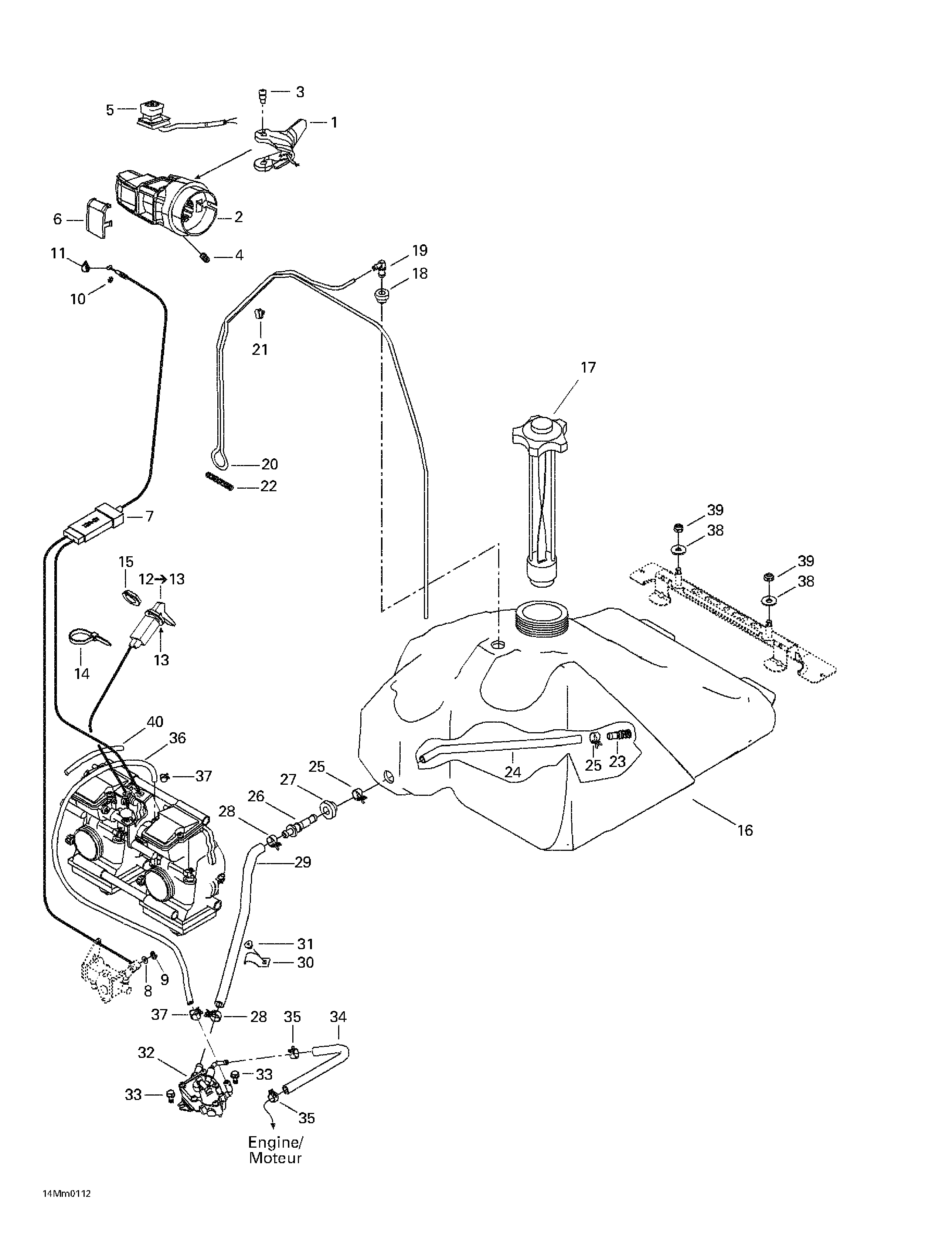

02- Fuel System для BRP Ski-Doo Summit 600/700/800 - 2001
-
№АртикулНазвание
-
1512059107 Handle Ass'y 28 mmHandle Ass'y 28 mm
-
2512059109 Throttle Handle HousingThrottle Handle Housing
-
3732601143 ScrewScrew
-
4414440800 Set Screw M8 x 10Set Screw M8 x 10
-
5515175410 Kill SwitchKill Switch
-
6572100901 Switch CoverSwitch Cover
-
7512059388 Throttle CableThrottle Cable
-
8414753300 WasherWasher
-
9414753500 CirclipCirclip
-
10414274500 CirclipCirclip
-
11293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
12512059110 Choke Cable. Includes 12 - 13.Choke Cable. Includes 12 - 13.
-
13394103300 Lock WasherLock Washer
-
14515175220 Tie Rap 94 mmTie Rap 94 mm
-
15512059094 Plastic NutPlastic Nut
-
16513032987 Fuel TankFuel Tank
-
17513032901 Fuel Tank CapFuel Tank Cap
-
18513032908 GrommetGrommet
-
19414814100 Male ConnectorMale Connector
-
20415080100 Primer LinePrimer Line
-
21513032923 Tube ClampTube Clamp
-
22414818200 SpringSpring
-
23414872100 Fuel FilterFuel Filter
-
24415005700 HoseHose
-
25513033010 Spring ClampSpring Clamp
-
26414872700 Male ConnectorMale Connector
-
27570273900 GrommetGrommet
-
28513032979 Spring ClampSpring Clamp
-
29513032903 Formed HoseFormed Hose
-
30415018200 ClipClip
-
31390406500 Pop Rivet 3/16Pop Rivet 3/16
-
32403901802 Fuel Pump. Summit 600. Summit 700.Fuel Pump. Summit 600. Summit 700.
-
403901806 Fuel Pump. Summit 800.Fuel Pump. Summit 800.
-
33210361280 Hex. Screw M6 x 12Hex. Screw M6 x 12
-
34415079800 Rubber HoseRubber Hose
-
35414415200 Spring ClampSpring Clamp
-
36513032986 Formed TubeFormed Tube
-
37414420700 Spring ClampSpring Clamp
-
38234082410 Flat Washer 8 mmFlat Washer 8 mm
-
39232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
40415079900 TubingTubing
