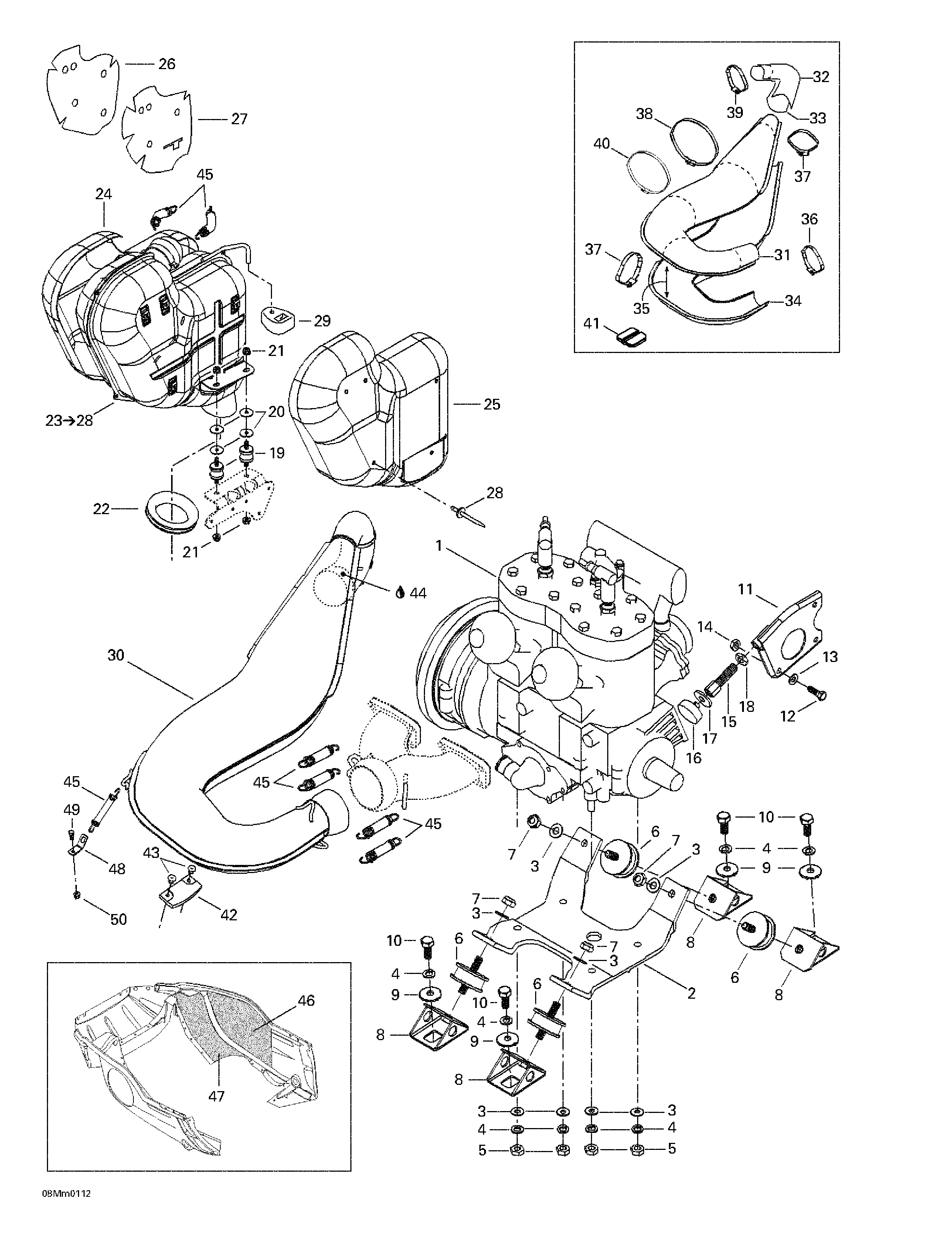

01- Engine Support And Muffler для BRP Ski-Doo Summit 600/700/800 - 2001

  • №
    Артикул
    Название
  • 1
    400509725 > Engine. Summit 600.
    > Engine. Summit 600.
  • 400604021 > Engine. Summit 700.
    > Engine. Summit 700.
  • 400702605 > Engine. Summit 800.
    > Engine. Summit 800.
  • 2
    512058000 Engine Support. Summit 600. Summit 700.
    Engine Support. Summit 600. Summit 700.
  • 512059173 Engine Support. Summit 800.
    Engine Support. Summit 800.
  • 3
    234001410 Flat Washer 10 mm
    Flat Washer 10 mm
  • 4
    234100602 Lock Washer 10mm
    Lock Washer 10mm
  • 5
    232006414 Nut M10
    Nut M10
  • 6
    570128700 Rubber Mount
    Rubber Mount
  • 7
    233601416 Elastic Locking Nut M10
    Elastic Locking Nut M10
  • 8
    512050900 Engine Support
    Engine Support
  • 9
    512056700 Lock Washer
    Lock Washer
  • 10
    207102544 Hex. Screw M10 x 25
    Hex. Screw M10 x 25
  • 11
    512058500 Support Plate
    Support Plate
  • 12
    207182044 Hex. Screw M8 x 20
    Hex. Screw M8 x 20
  • 13
    234081410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 14
    232581414 Elastic Stop Nut M8
    Elastic Stop Nut M8
  • 15
    512058800 Stopper Screw
    Stopper Screw
  • 16
    512059056 Stopper
    Stopper
  • 17
    512059057 Washer
    Washer
  • 18
    732610019 R.H. Hex. Jam Nut M12
    R.H. Hex. Jam Nut M12
  • 19
    514052994 Rubber Mount
    Rubber Mount
  • 20
    514052891 Isolating Washer
    Isolating Washer
  • 21
    233281414 Elastic Flanged Stop Nut M8
    Elastic Flanged Stop Nut M8
  • 22
    570039000 Exhaust Grommet. Summit 600.
    Exhaust Grommet. Summit 600.
  • 514053064 Exhaust Grommet. Summit 700. Summit 800.
    Exhaust Grommet. Summit 700. Summit 800.
  • 23
    514053212 Muffler Ass'y. Includes 23 - 28. Summit 600.
    Muffler Ass'y. Includes 23 - 28. Summit 600.
  • 514053161 Muffler Ass'y. Summit 700.
    Muffler Ass'y. Summit 700.
  • 514053178 Muffler Ass'y. Summit 800.
    Muffler Ass'y. Summit 800.
  • 24
    514053160 R.H. Heat Shield
    R.H. Heat Shield
  • 25
    514052733 L.H. Heat Shield
    L.H. Heat Shield
  • 26
    514052734 R.H. Insulating Wooll
    R.H. Insulating Wooll
  • 27
    514052844 L.H. Insulating Wooll
    L.H. Insulating Wooll
  • 28
    390910000 Pop Rivet 3/16
    Pop Rivet 3/16
  • 29
    514052704 Rubber Bumper
    Rubber Bumper
  • 30
    514053198 Tuned Pipe Ass'y. Includes 30 - 41. Summit 600.
    Tuned Pipe Ass'y. Includes 30 - 41. Summit 600.
  • 30
    514053171 Tuned Pipe Ass'y. Includes 30 - 41. Summit 700.
    Tuned Pipe Ass'y. Includes 30 - 41. Summit 700.
  • 30
    514053170 Tuned Pipe Ass'y. Includes 30 - 41. Summit 800.
    Tuned Pipe Ass'y. Includes 30 - 41. Summit 800.
  • 31
    514053192 Upper Enveloppe
    Upper Enveloppe
  • 32
    514053193 Rear Upper Enveloppe
    Rear Upper Enveloppe
  • 33
    514053196 Rear Lower Enveloppe
    Rear Lower Enveloppe
  • 34
    514053194 Lower Enveloppe
    Lower Enveloppe
  • 35
    514053285 Insulating Wooll. Summit 800.
    Insulating Wooll. Summit 800.
  • 514053197 Insulating Wooll. Summit 600. Summit 700.
    Insulating Wooll. Summit 600. Summit 700.
  • 36
    514053074 Norma Gear Clamp
    Norma Gear Clamp
  • 37
    514053224 Norma Gear Clamp
    Norma Gear Clamp
  • 38
    514052735 Norma Gear Clamp
    Norma Gear Clamp
  • 39
    293650090 Norma Gear Clamp
    Norma Gear Clamp
  • 40
    514052902 Norma Gear Clamp
    Norma Gear Clamp
  • 41
    514053180 Rubber Pad
    Rubber Pad
  • 42
    570044100 Rubber Pad
    Rubber Pad
  • 43
    390406500 Pop Rivet 3/16
    Pop Rivet 3/16
  • 44
    413710300 Sealant, Loctite 17914, 80 ml
    Sealant, Loctite 17914, 80 ml
  • 45
    415107100 Spring
    Spring
  • 46
    514052718 Reflective Sheet
    Reflective Sheet
  • 47
    514052719 Reflective Sheet
    Reflective Sheet
  • 48
    514053026 Spring Bracket
    Spring Bracket
  • 49
    207151244 Hex. Screw M5 x 12
    Hex. Screw M5 x 12
  • 50
    233251414 Elastic Flanged Nut M5
    Elastic Flanged Nut M5
