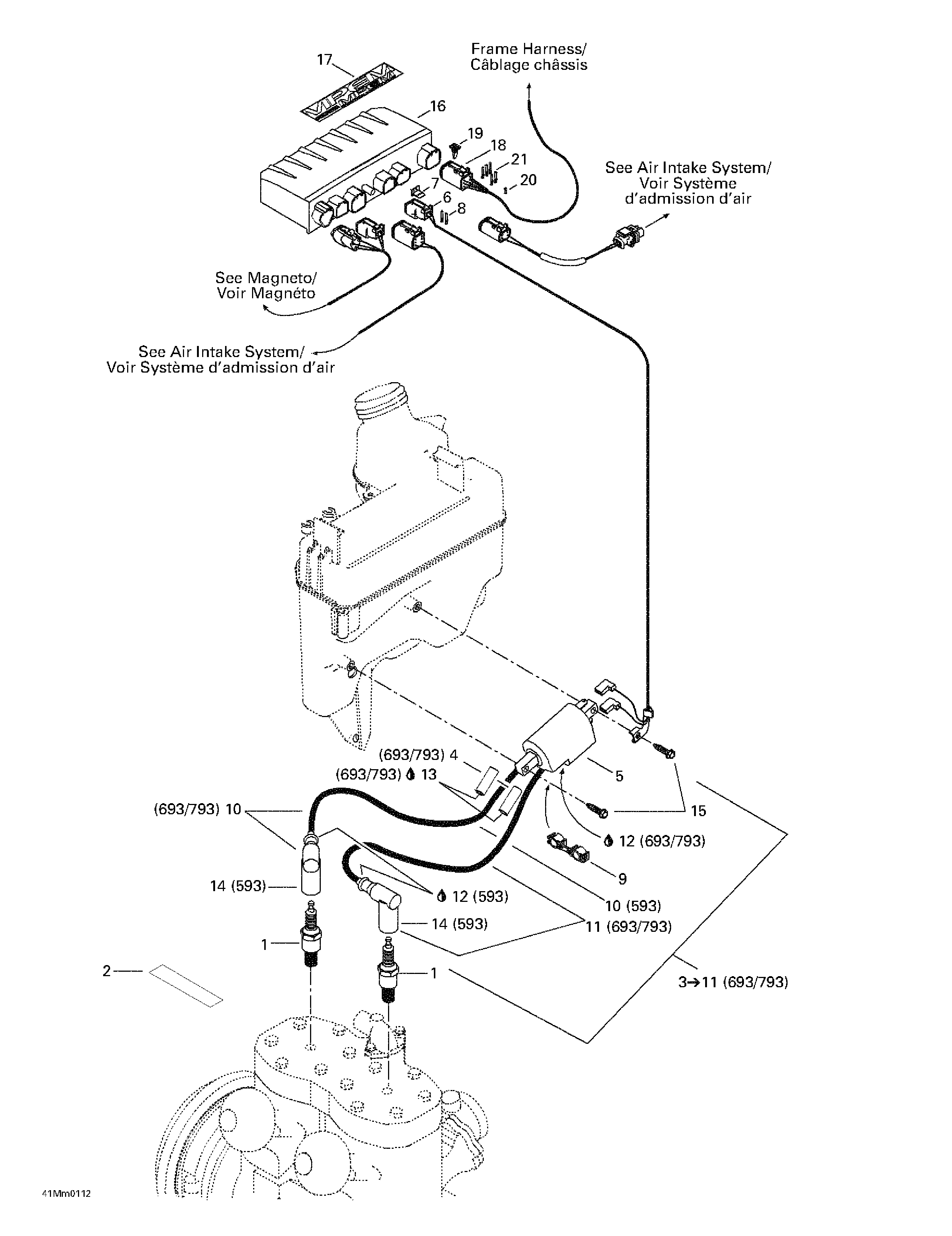

03- Ignition для BRP Ski-Doo Summit 600/700/800 - 2001

  • №
    Артикул
    Название
  • 1
    414961100 Spark Plug (NGK BR9ES)
    Spark Plug (NGK BR9ES)
  • 2
    516000986 Spark Plug Decal
    Spark Plug Decal
  • 3
    512059377 Ignition Coil Ass'y. Includes 3 - 11. Summit 700. Summit 800.
    Ignition Coil Ass'y. Includes 3 - 11. Summit 700. Summit 800.
  • 4
    512059376 Tubing 345 mm. Summit 700. Summit 800.
    Tubing 345 mm. Summit 700. Summit 800.
  • 5
    512059363 Ignition Coil. Includes 5 - 8. Summit 700. Summit 800.
    Ignition Coil. Includes 5 - 8. Summit 700. Summit 800.
  • 5
    512059039 Ignition Coil. Includes 5 - 10. Summit 600.
    Ignition Coil. Includes 5 - 10. Summit 600.
  • 6
    409207300 Female Terminal Housing (2 circuits)
    Female Terminal Housing (2 circuits)
  • 7
    409207100 Female Lock (2 circuits)
    Female Lock (2 circuits)
  • 8
    278000632 Female Terminal
    Female Terminal
  • 9
    410914600 Plastic Clip
    Plastic Clip
  • 10
    278001268 Spark Plug Wire. Summit 600.
    Spark Plug Wire. Summit 600.
  • 512059378 Cable Ass'y 380 mm. Summit 700. Summit 800.
    Cable Ass'y 380 mm. Summit 700. Summit 800.
  • 11
    512059379 Cable Ass'y 455 mm. Summit 700. Summit 800.
    Cable Ass'y 455 mm. Summit 700. Summit 800.
  • 12
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 13
    293800021 Loctite 495, 3g. Summit 700. Summit 800.
    Loctite 495, 3g. Summit 700. Summit 800.
  • 14
    278000237 Spark Plug Protector. Summit 600.
    Spark Plug Protector. Summit 600.
  • 15
    250000005 Hex. Tapping Screw
    Hex. Tapping Screw
  • 16
    512059296 Calibration Module. Summit 600.
    Calibration Module. Summit 600.
  • 512059380 Calibration Module. Summit 700.
    Calibration Module. Summit 700.
  • 512059360 Calibration Module. Summit 800.
    Calibration Module. Summit 800.
  • 17
    516000245 Electrical Box Decal
    Electrical Box Decal
  • 18
    278000736 Female Terminal Housing (6 circuits)
    Female Terminal Housing (6 circuits)
  • 19
    278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)
    (Female) Secondary Lock (6 Circuits) (Deutsch)
  • 20
    293000052 Plug
    Plug
  • 21
    278000632 Female Terminal
    Female Terminal
