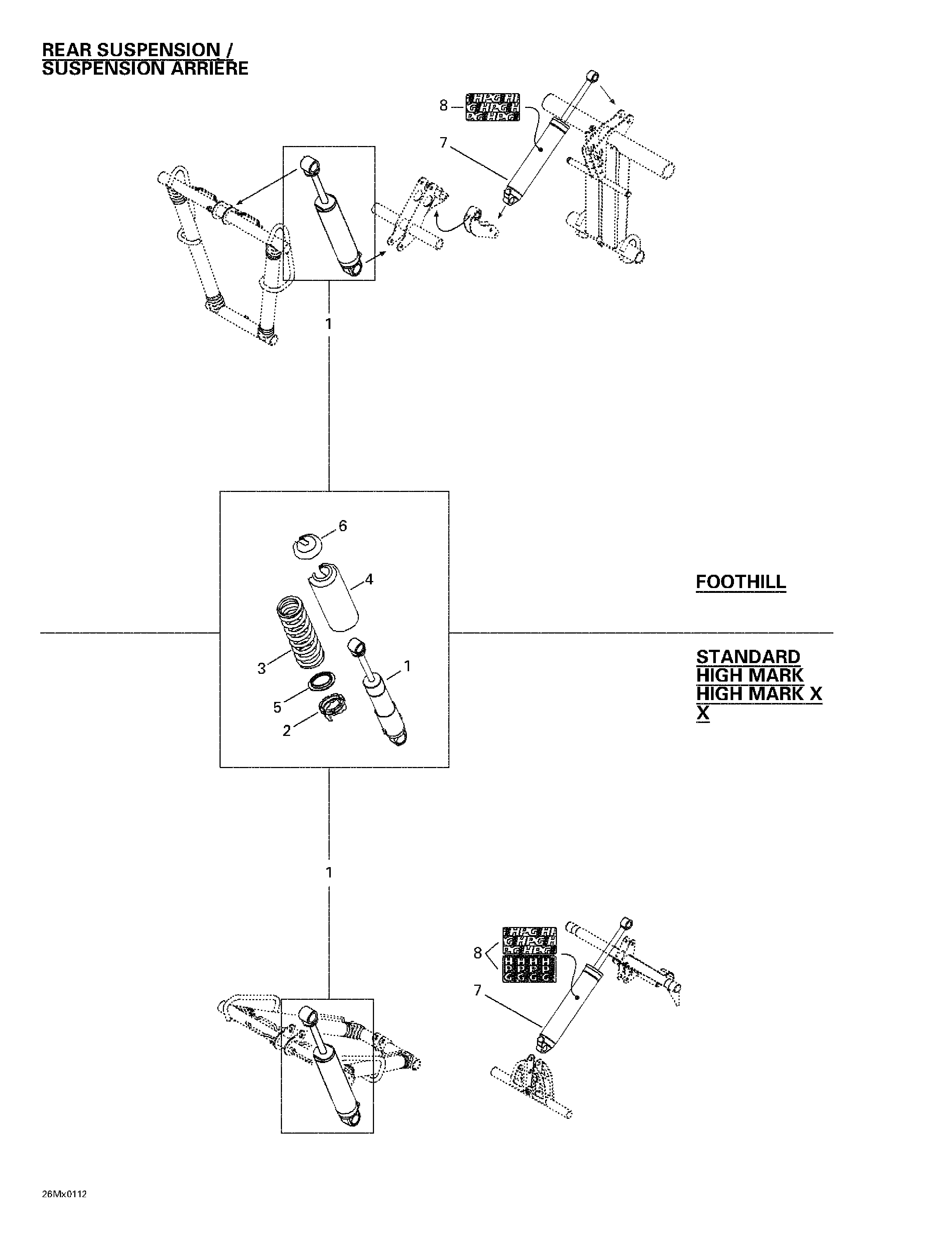

08- Rear Shocks 2 для BRP Ski-Doo Summit 600/700/800 - 2001
-
№АртикулНазвание
-
1503189394 Center Shock (STD / H.M.)Center Shock (STD / H.M.)
-
503189528 Center Shock (H.M. X / X). Summit 700. Summit 800.Center Shock (H.M. X / X). Summit 700. Summit 800.
-
503189765 Center Shock (Foothill). Summit 800.Center Shock (Foothill). Summit 800.
-
503189178 Center Shock (Europe). Summit 700.Center Shock (Europe). Summit 700.
-
503189076 Center Shock (Europe X). Summit 800.Center Shock (Europe X). Summit 800.
-
2503183700 Cam (STD / H.M. / Europe)Cam (STD / H.M. / Europe)
-
505070150 Cam 45 Deg. (Foothill / Europe X / H.M. X / X). Summit 700. Summit 800.Cam 45 Deg. (Foothill / Europe X / H.M. X / X). Summit 700. Summit 800.
-
3503189325 SpringSpring
-
4503188930 ProtectorProtector
-
5503187500 Spring Guide (STD / H.M. / Europe)Spring Guide (STD / H.M. / Europe)
-
517184300 SpringGuide(Foothill/EuropeX/H.M.X/X). Summit 700. Summit 800.SpringGuide(Foothill/EuropeX/H.M.X/X). Summit 700. Summit 800.
-
6503140600 Spring StopperSpring Stopper
-
7503189395 Rear Shock (STD / H.M.)Rear Shock (STD / H.M.)
-
503189527 Rear Shock (H.M. X / X). Summit 700. Summit 800.Rear Shock (H.M. X / X). Summit 700. Summit 800.
-
503189766 Rear Shock (Foothill). Summit 800.Rear Shock (Foothill). Summit 800.
-
503189669 Rear Shock (Europe). Summit 700.Rear Shock (Europe). Summit 700.
-
503189492 Rear Shock (Europe X). Summit 800.Rear Shock (Europe X). Summit 800.
-
8516000182 Shock Decal >. (STD / H.M. / Foothill)Shock Decal >. (STD / H.M. / Foothill)
-
516000183 Shock Decal >. (Europe X / X / H.M. X) Summit 700. Summit 800.Shock Decal >. (Europe X / X / H.M. X) Summit 700. Summit 800.
