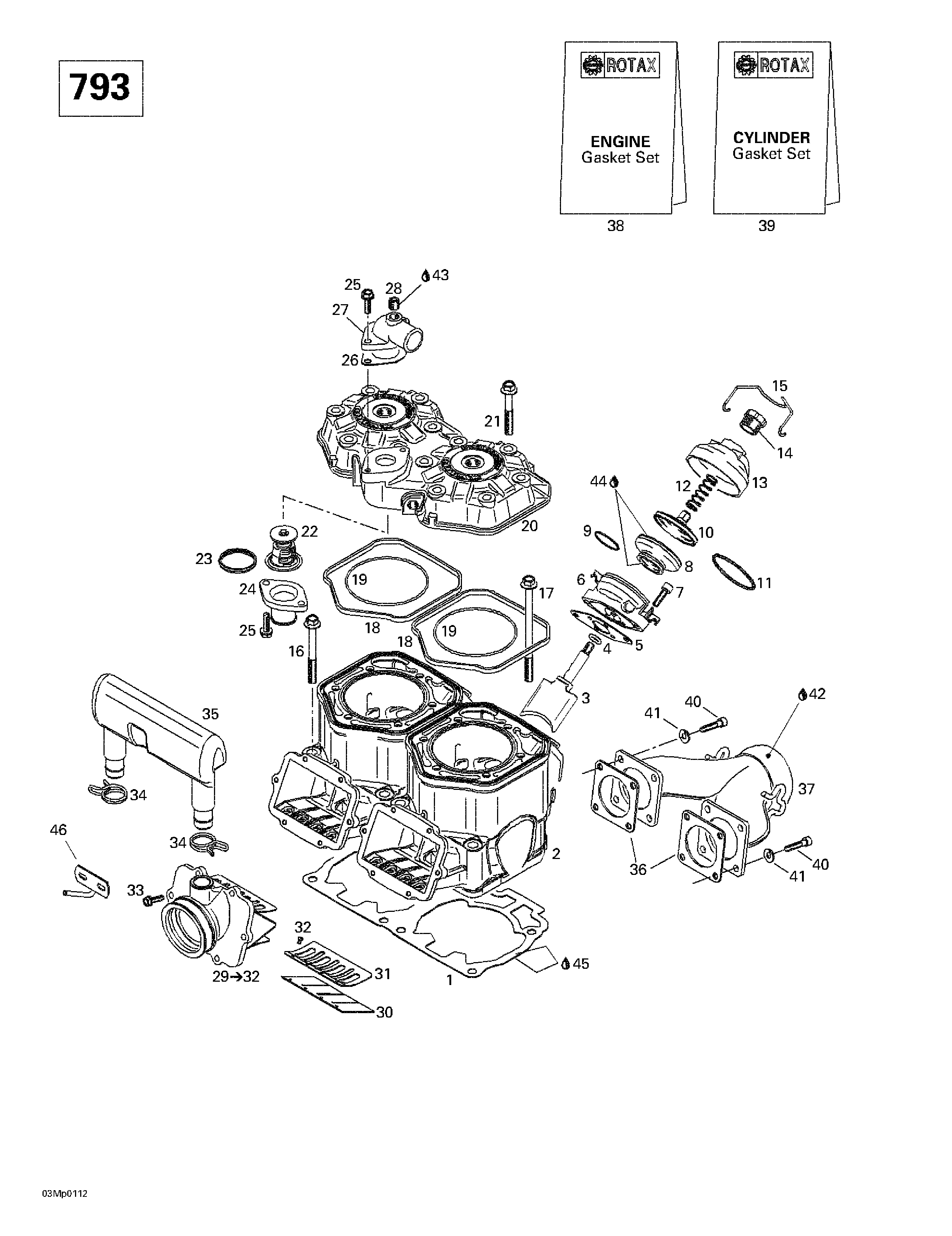

01- Cylinder, Exhaust Manifold, Reed Valve (793) для BRP Ski-Doo Summit 600/700/800 - 2001
-
№АртикулНазвание
-
1420931839 Double Gasket 0.8 mm. Summit 800.Double Gasket 0.8 mm. Summit 800.
-
420931964 Double Gasket 0.7 mm. Summit 800.Double Gasket 0.7 mm. Summit 800.
-
420931837 Double Gasket 0.6 mm. Summit 800.Double Gasket 0.6 mm. Summit 800.
-
420931838 Double Gasket 0.5 mm. Summit 800.Double Gasket 0.5 mm. Summit 800.
-
2420923811 Nicasil Cylinder. Summit 800.Nicasil Cylinder. Summit 800.
-
3420854465 Exhaust Valve. Summit 800.Exhaust Valve. Summit 800.
-
4420430110 O-Ring. Summit 800.O-Ring. Summit 800.
-
5420931542 Gasket. Summit 800.Gasket. Summit 800.
-
6420854450 Valve Housing. Summit 800.Valve Housing. Summit 800.
-
7205062544 Socket Head Screw M6 x 25. Summit 800.Socket Head Screw M6 x 25. Summit 800.
-
8420260729 Bellows. Summit 800.Bellows. Summit 800.
-
9420838253 Spring Clamp. Summit 800.Spring Clamp. Summit 800.
-
10420854449 Exhaust Valve. Summit 800.Exhaust Valve. Summit 800.
-
11290239048 Hose Spring. Summit 800.Hose Spring. Summit 800.
-
12420239942 Spring. Summit 800.Spring. Summit 800.
-
13290911555 Valve Cover. Summit 800.Valve Cover. Summit 800.
-
14420241221 Adjuster Screw. Summit 800.Adjuster Screw. Summit 800.
-
15290838083 Spring Clip. Summit 800.Spring Clip. Summit 800.
-
16420640524 Hex. Collar Screw M10 x 80. Summit 800.Hex. Collar Screw M10 x 80. Summit 800.
-
17420640534 Hex. Collar Screw M10 x 120. Summit 800.Hex. Collar Screw M10 x 120. Summit 800.
-
18420931590 Rubber Ring. Summit 800.Rubber Ring. Summit 800.
-
19290931410 O-Ring. Summit 800.O-Ring. Summit 800.
-
20420923820 Cylinder Head (Silver). Summit 800.Cylinder Head (Silver). Summit 800.
-
21420941621 Hex. Collar Screw M8 x 56.5. Summit 800.Hex. Collar Screw M8 x 56.5. Summit 800.
-
22420922515 Thermostat (42 Deg.). Summit 800.Thermostat (42 Deg.). Summit 800.
-
23420931270 Sealing Ring. Summit 800.Sealing Ring. Summit 800.
-
24420922025 Outlet Socket. Summit 800.Outlet Socket. Summit 800.
-
25420941250 Screw M6 x 20. Summit 800.Screw M6 x 20. Summit 800.
-
26420850338 Gasket. Summit 800.Gasket. Summit 800.
-
27420922062 Bent Outlet Socket. Summit 800.Bent Outlet Socket. Summit 800.
-
28420240480 Plug Screw 1/8-27 NPT. Summit 800.Plug Screw 1/8-27 NPT. Summit 800.
-
29420867870 Intake Socket Ass'y. Includes 29 - 32. Summit 800.Intake Socket Ass'y. Includes 29 - 32. Summit 800.
-
30420924680 Pedal Reed. Summit 800.Pedal Reed. Summit 800.
-
31420924695 Reed Pedal Stop. Summit 800.Reed Pedal Stop. Summit 800.
-
32420941215 Screw M3 x 5. Summit 800.Screw M3 x 5. Summit 800.
-
33420941925 Screw M5 x 16. Summit 800.Screw M5 x 16. Summit 800.
-
34420851440 Clamp. Summit 800.Clamp. Summit 800.
-
35420867817 Intake Resonator. Summit 800.Intake Resonator. Summit 800.
-
36420931850 Gasket. Summit 800.Gasket. Summit 800.
-
37420973710 Exhaust Manifold. Summit 800.Exhaust Manifold. Summit 800.
-
38420888740 Engine Gasket Set. Summit 800.Engine Gasket Set. Summit 800.
-
39420888745 Cylinder Gasket Set. Summit 800.Cylinder Gasket Set. Summit 800.
-
40205062044 Socket Head Screw M6 x 20. Summit 800.Socket Head Screw M6 x 20. Summit 800.
-
41234161471 Lock Washer 6 mm. Summit 800.Lock Washer 6 mm. Summit 800.
-
42413710300 Sealant, Loctite 17914, 80 ml. Summit 800.Sealant, Loctite 17914, 80 ml. Summit 800.
-
43293800060 Loctite 243, 10 ml. Summit 800.Loctite 243, 10 ml. Summit 800.
-
44413707000 Molykote 111. Summit 800.Molykote 111. Summit 800.
-
45293800038 Loctite 518, 50 ml. Summit 800.Loctite 518, 50 ml. Summit 800.
-
46512059369 Carburetor Bracket. Summit 800.Carburetor Bracket. Summit 800.
