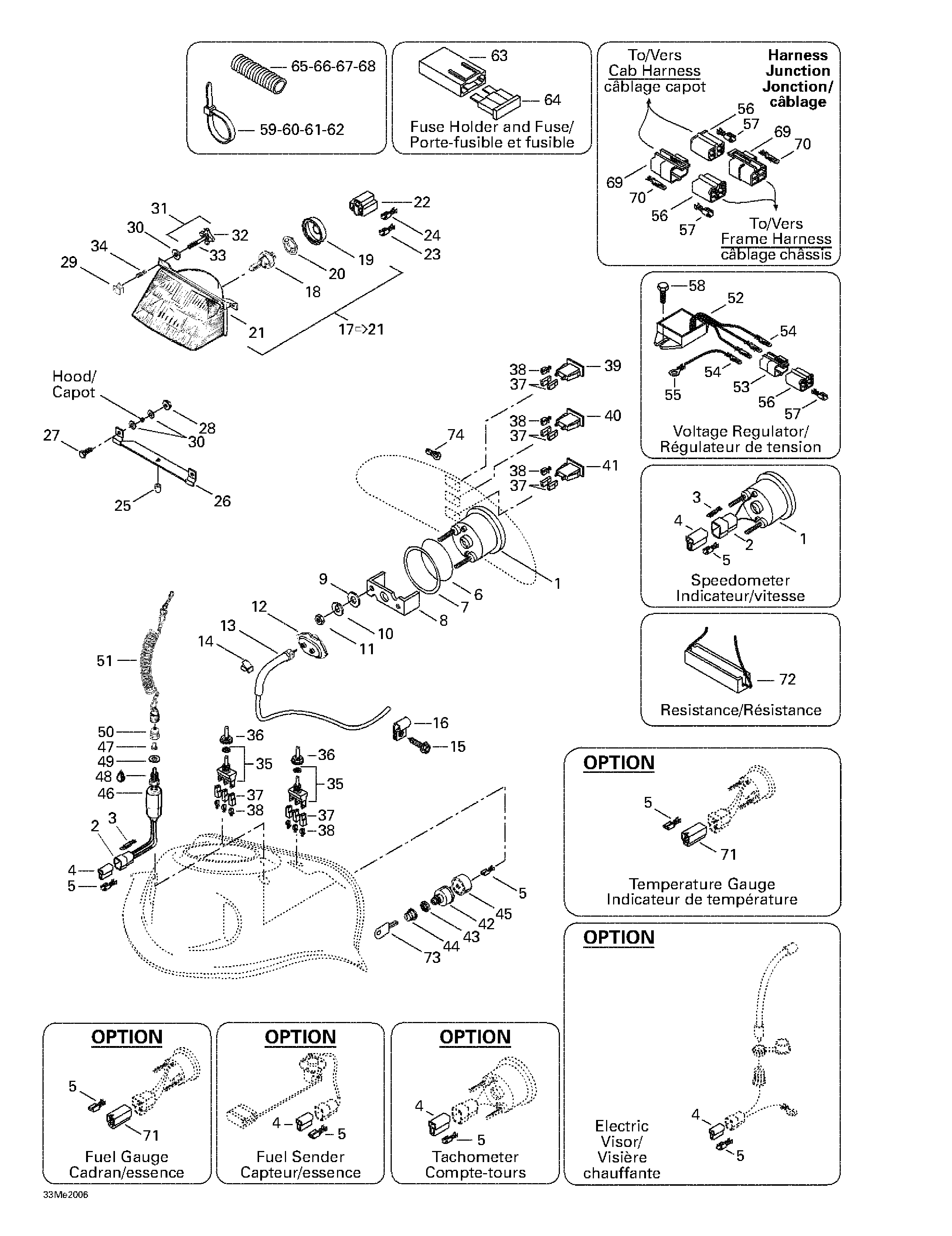

10- Electrical System для BRP Ski-Doo Touring 500 LC - 2000

№

Артикул

Название
1

515175335 Speedmeter (KMH)

Speedmeter (KMH)
515175336 Speedmeter (MPH)

Speedmeter (MPH)
2

409204500 Male Connector Housing (2 circuits)

Male Connector Housing (2 circuits)
3

409210000 Male Terminal

Male Terminal
4

409204600 Female Connector Housing (2 circuits)

Female Connector Housing (2 circuits)
5

561503100 Female Terminal

Female Terminal
6

414807100 Packing

Packing
7

517258500 Washer

Washer
8

414806500 Case Holder

Case Holder
9

414806800 Flat Washer

Flat Washer
10

414806700 Lock Washer

Lock Washer
11

414806900 Nut

Nut
12

515175400 Angle Drive

Angle Drive
13

414761400 Speedometer Cable

Speedometer Cable
14

414227300 Clip

Clip
15

365901100 Hex. Tapping Screw

Hex. Tapping Screw
16

414176000 Clip (Cable)

Clip (Cable)
17

410609100 Headlamp Ass'y. Includes 17 - 21.

Headlamp Ass'y. Includes 17 - 21.
18

410503700 Halogen Bulb

Halogen Bulb
19

410607100 Cover

Cover
20

410608300 Bulb Holder

Bulb Holder
21

410609300 Headlamp

Headlamp
22

409202700 Female Connector Housing (3 circuits)

Female Connector Housing (3 circuits)
23

515175320 Female Terminal

Female Terminal
24

409011500 Female Terminal

Female Terminal
25

410608200 Rubber Bumper

Rubber Bumper
26

517218500 Lamp Support

Lamp Support
27

207151644 Hex. Screw M5 x 16

Hex. Screw M5 x 16
28

233251414 Elastic Flanged Nut M5

Elastic Flanged Nut M5
29

572078600 Lamp Nut

Lamp Nut
30

391302100 Flat Washer

Flat Washer
31

415100700 Adjuster Screw Ass'y. Includes 31 - 33.

Adjuster Screw Ass'y. Includes 31 - 33.
32

572106600 Handle

Handle
33

243044040 Hex. Screw M4 x 40

Hex. Screw M4 x 40
34

517168600 Spring

Spring
35

410107300 Switch (Heating Grip)

Switch (Heating Grip)
36

515175281 Switch Cover

Switch Cover
37

409010400 Female Connector Housing (1 circuits)

Female Connector Housing (1 circuits)
38

409010100 Female Terminal

Female Terminal
39

410109500 Pilot Lamp (Oil Level)

Pilot Lamp (Oil Level)
40

410109600 Pilot Lamp (Headlamp)

Pilot Lamp (Headlamp)
41

410109700 Pilot Lamp (Temperature Gauge)

Pilot Lamp (Temperature Gauge)
42

410111300 Ignition Switch

Ignition Switch
43

410112100 Face Nut

Face Nut
44

570013700 Switch Boot

Switch Boot
45

572150700 Ignition Switch Block

Ignition Switch Block
46

515175369 Brake Switch

Brake Switch
47

570151100 Plunger Cap

Plunger Cap
48

293550004 Dielectric Grease, 150 g

Dielectric Grease, 150 g
50

515145900 Switch Nut

Switch Nut
51

515151500 Cap Ass'y

Cap Ass'y
52

515163900 Voltage Regulator. Includes 52 - 55.

Voltage Regulator. Includes 52 - 55.
53

409209300 Male Connector Housing (4 circuits)

Male Connector Housing (4 circuits)
55

409003200 Open Barrel

Open Barrel
56

409204900 Female Connector Housing (4 circuits)

Female Connector Housing (4 circuits)
57

561503200 Female Terminal

Female Terminal
58

210261680 Hex. Forming Screw M6 x 16

Hex. Forming Screw M6 x 16
59

293750001 Tie Rap (94 mm)

Tie Rap (94 mm)
60

293750008 Tie Rap (350 mm)

Tie Rap (350 mm)
61

414115200 Tie Rap

Tie Rap
62

515175220 Tie Rap

Tie Rap
63

409004000 Fuse Holder

Fuse Holder
64

410917200 Fuse (30 A)

Fuse (30 A)
65

409902100 Tubing (6 mm)

Tubing (6 mm)
66

409901700 Tubing (9 mm)

Tubing (9 mm)
67

409901800 Tubing (13 mm)

Tubing (13 mm)
68

415079900 Tubing (10 mm)

Tubing (10 mm)
69

409209300 Male Connector Housing (4 circuits)

Male Connector Housing (4 circuits)
70

409206100 Male Terminal

Male Terminal
71

409204300 Female Connector Housing (3 circuits)

Female Connector Housing (3 circuits)
72

410911000 Resistance 30 ohms

Resistance 30 ohms
73

414991700 Blank Key (Plastic)

Blank Key (Plastic)
74

410504200 Instrumentation Bulb

Instrumentation Bulb
