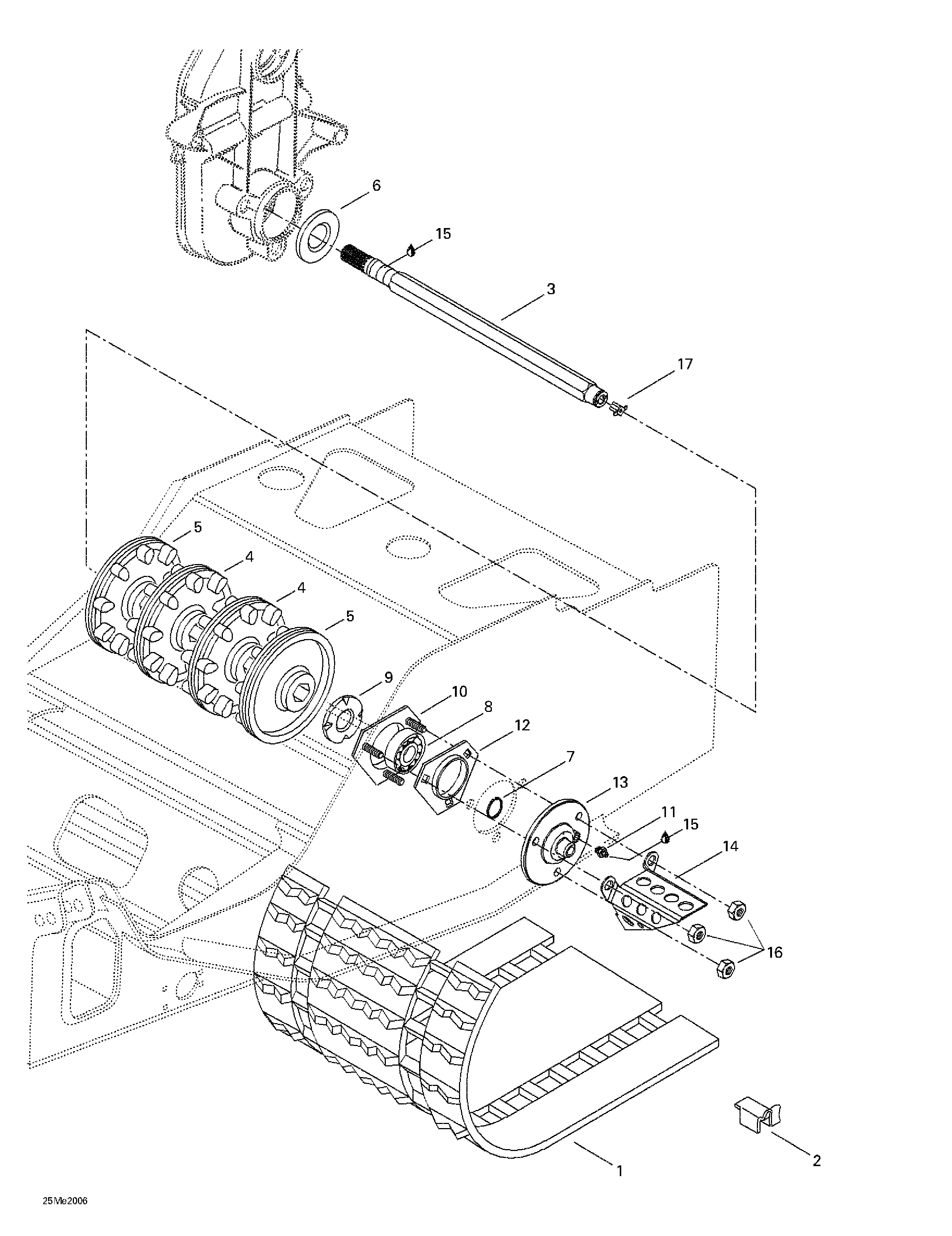

05- Drive Axle And Track для BRP Ski-Doo Touring 500 LC - 2000
-
№АртикулНазвание
-
1504151739 Track 136. Includes 1 - 2.Track 136. Includes 1 - 2.
-
570212500 Track (Europe)Track (Europe)
-
2500003400 Guide CleatGuide Cleat
-
3501026500 Drive AxleDrive Axle
-
4414663900 9-Tooth Sprocket9-Tooth Sprocket
-
5414990800 9-Tooth Half Sprocket9-Tooth Half Sprocket
-
6504151925 Oil SealOil Seal
-
7371910200 CirclipCirclip
-
8405408600 Ball BearingBall Bearing
-
9501017400 Ball Bearing ProtectorBall Bearing Protector
-
10504151860 Ball Bearing HousingBall Bearing Housing
-
11408200700 Grease FittingGrease Fitting
-
12501025000 FlangeFlange
-
13504151836 Flange (Speedo Drive Insert)Flange (Speedo Drive Insert)
-
14517290100 Cable ProtectorCable Protector
-
15219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
16232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
17572010100 Speedometer Drive InsertSpeedometer Drive Insert
