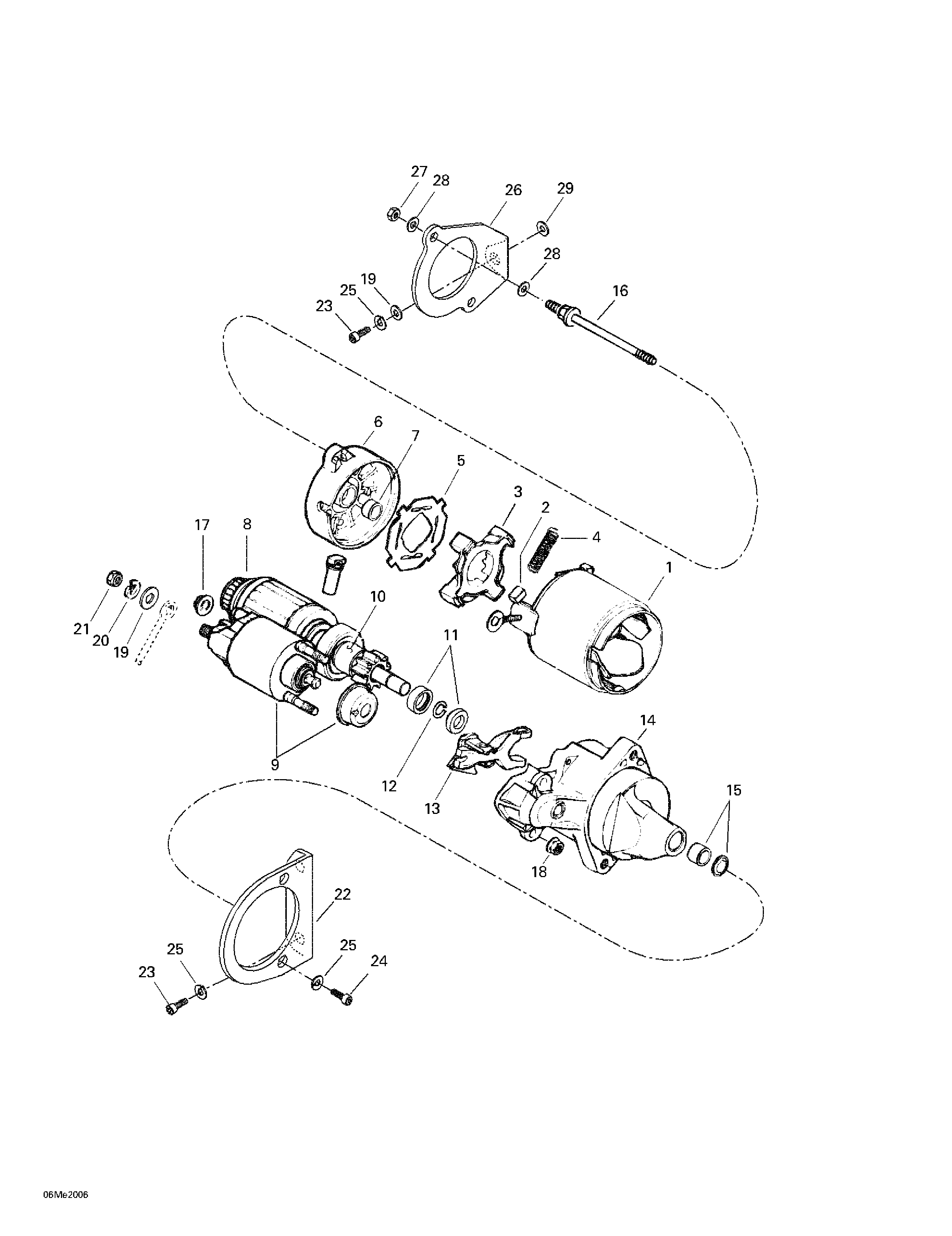

04- Electric Starter для BRP Ski-Doo Touring 500 LC - 2000
-
№АртикулНазвание
-
1410212400 Starter. Includes 1 - 18.Starter. Includes 1 - 18.
-
1410209500 Starter HousingStarter Housing
-
2410209600 Brush KitBrush Kit
-
3410209700 Brush HolderBrush Holder
-
4410209800 Brush SpringBrush Spring
-
5410209900 InsulatorInsulator
-
7410210100 Bushing BrassBushing Brass
-
8410210200 Armature Ass'yArmature Ass'y
-
9410210300 Switch Ass'ySwitch Ass'y
-
10410210400 Starter ClutchStarter Clutch
-
11410212500 NutNut
-
12410212600 CirclipCirclip
-
13410210700 LeverLever
-
14410210800 HousingHousing
-
15410210900 Bushing BrassBushing Brass
-
16410212000 BoltBolt
-
17410211100 NutNut
-
18410211200 NutNut
-
19234081410 Flat WasherFlat Washer
-
20420945752 Lock Washer 8 mmLock Washer 8 mm
-
21232081414 Hex. Nut M8Hex. Nut M8
-
22420853730 Starter Bracket (PTO)Starter Bracket (PTO)
-
23205082044 Socket Head Screw M8 x 20Socket Head Screw M8 x 20
-
24205082544 Socket Head Screw M8 x 25Socket Head Screw M8 x 25
-
25234181401 Lock Washer 8 mmLock Washer 8 mm
-
26420953011 Starter Support (MAG)Starter Support (MAG)
-
27232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
28391301700 Flat WasherFlat Washer
-
29503007900 Hard WasherHard Washer
