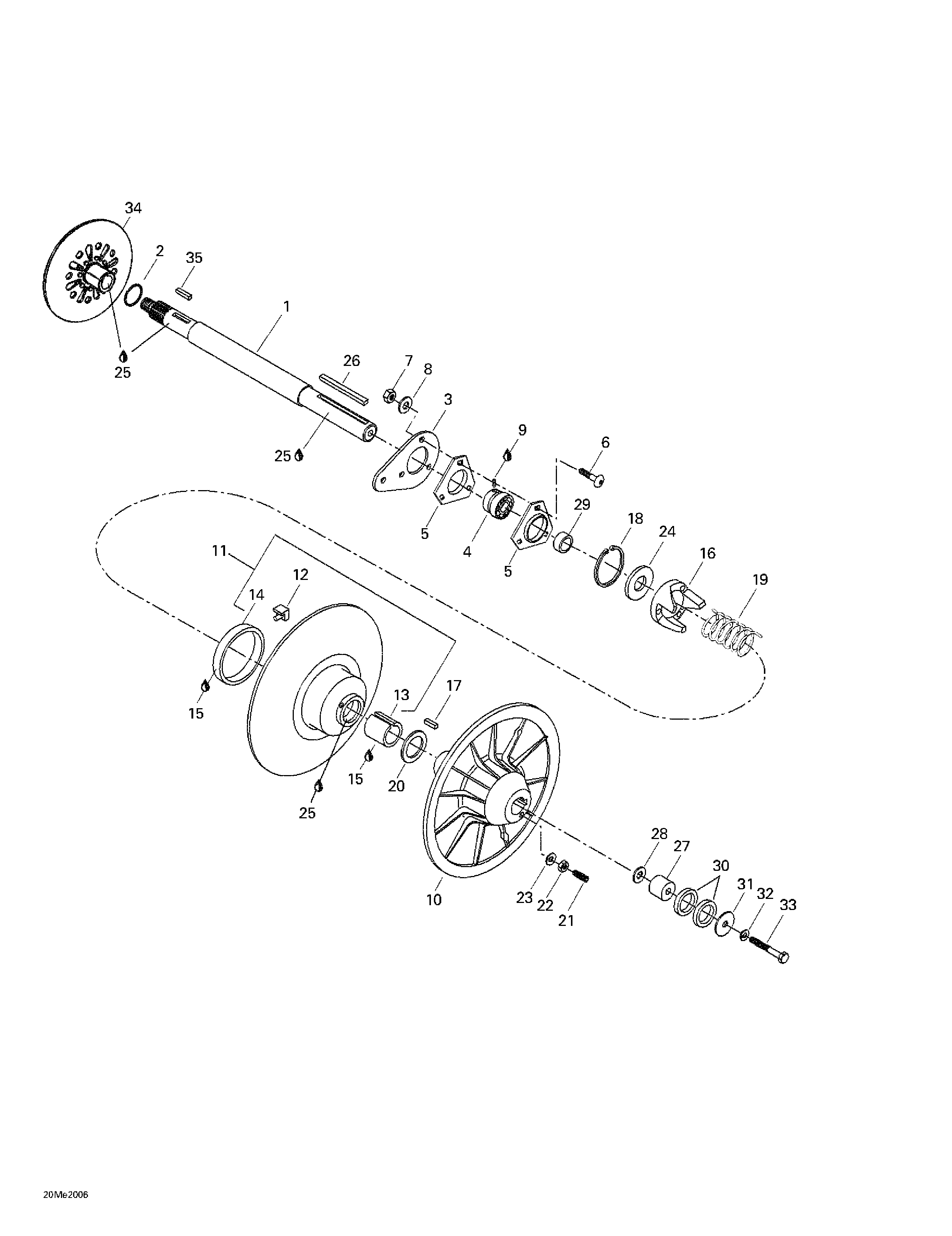

05- Driven Pulley для BRP Ski-Doo Touring 500 LC - 2000
-
№АртикулНазвание
-
1504149300 CountershaftCountershaft
-
2371910000 CirclipCirclip
-
3501022300 SpacerSpacer
-
4405408300 Ball Bearing with CollarBall Bearing with Collar
-
5501025000 FlangeFlange
-
6205482546 Socket Head Screw M8 x 25Socket Head Screw M8 x 25
-
7232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
8234081410 Flat Washer 8 mmFlat Washer 8 mm
-
9293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
10504141600 Flange FixeFlange Fixe
-
11504143400 Sliding Flange Ass'y. Includes 11 - 14.Sliding Flange Ass'y. Includes 11 - 14.
-
12414918000 Cam Slider ShoeCam Slider Shoe
-
13415011200 Bushing GarlockBushing Garlock
-
14414876600 Bushing GarlockBushing Garlock
-
15413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
16417126333 Cam (44 Deg.)Cam (44 Deg.)
-
17414820800 KeyKey
-
18371903100 CirclipCirclip
-
19414558900 Release Spring (Beige)Release Spring (Beige)
-
20504141900 Thrust WasherThrust Washer
-
21206263044 Socket Set Screw M6 x 30Socket Set Screw M6 x 30
-
22232061414 Hex. Nut M6Hex. Nut M6
-
23420245370 WasherWasher
-
24504141800 WasherWasher
-
25293800023 Loctite 767, Antiseize Lubricant, 454 gLoctite 767, Antiseize Lubricant, 454 g
-
26414581300 KeyKey
-
27504091600 Countershaft ExtensionCountershaft Extension
-
28224081201 Flat WasherFlat Washer
-
29504128300 ShimShim
-
30504108200 ShimShim
-
31517078700 WasherWasher
-
32234181401 Lock Washer M8Lock Washer M8
-
33207086544 Hex. Screw M8 x 65Hex. Screw M8 x 65
-
34507032203 Brake DiskBrake Disk
-
35507021300 KeyKey
