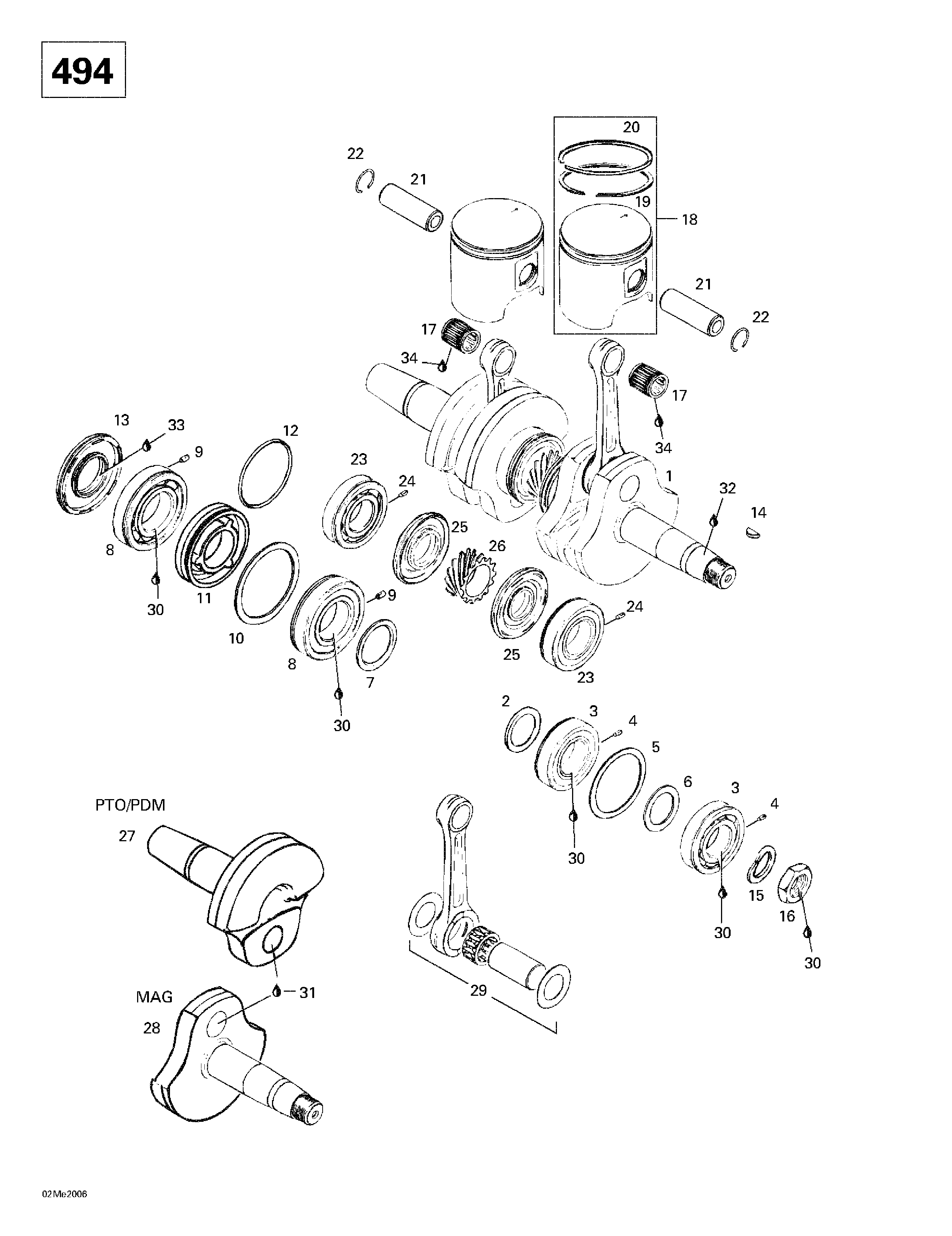

01- Crankshaft And Pistons для BRP Ski-Doo Touring 500 LC - 2000

  • №
    Артикул
    Название
  • 1
    420886933 Crankshaft Ass'y. Includes 1 - 14.
    Crankshaft Ass'y. Includes 1 - 14.
  • 2
    420827445 Distance Ring
    Distance Ring
  • 3
    420832538 Ball Bearing 6206. Includes 3 - 4.
    Ball Bearing 6206. Includes 3 - 4.
  • 4
    420929972 Dowel Pin
    Dowel Pin
  • 5
    420827050 Retaining Disk
    Retaining Disk
  • 6
    420427684 Adjusting Washer
    Adjusting Washer
  • 7
    420827760 Distance Ring
    Distance Ring
  • 8
    420832574 Ball Bearing 6207 Ass'y. Includes 8 - 9.
    Ball Bearing 6207 Ass'y. Includes 8 - 9.
  • 9
    420929972 Dowel Pin
    Dowel Pin
  • 10
    420927710 Retaining Disk
    Retaining Disk
  • 11
    420830294 Labyrinth Bushing
    Labyrinth Bushing
  • 12
    420830370 O-Ring
    O-Ring
  • 13
    420831950 Oil Seal
    Oil Seal
  • 14
    420246015 Woodruff Key
    Woodruff Key
  • 15
    420945759 Lock Washer 22 mm
    Lock Washer 22 mm
  • 16
    420842230 Hex. Nut M22
    Hex. Nut M22
  • 17
    420832438 Needle Bearing
    Needle Bearing
  • 18
    420887553 Piston Ass'y (2 rings 69.39 mm). Includes 18 - 20.
    Piston Ass'y (2 rings 69.39 mm). Includes 18 - 20.
  • 420887554 Oversize Pist. Ass'y (2 rings 69.64
    Oversize Pist. Ass'y (2 rings 69.64
  • 19
    420915985 Rectangular Ring 69.5 mm
    Rectangular Ring 69.5 mm
  • 420915986 Oversize Rectangular Ring 69.75 mm
    Oversize Rectangular Ring 69.75 mm
  • 20
    420815045 Semi-trapez ring 69.5 mm
    Semi-trapez ring 69.5 mm
  • 420815046 Oversize Semi-trapez ring 69.75 mm
    Oversize Semi-trapez ring 69.75 mm
  • 21
    420916186 Piston Pin
    Piston Pin
  • 22
    420945735 Piston Circlip
    Piston Circlip
  • 23
    420832538 Ball Bearing 6206. Includes 23 - 24.
    Ball Bearing 6206. Includes 23 - 24.
  • 24
    420929972 Dowel Pin
    Dowel Pin
  • 25
    420831990 Oil Seal
    Oil Seal
  • 26
    420935748 Central Gear 14 Teeth
    Central Gear 14 Teeth
  • 27
    420818660 Crankshaft (PTO side)
    Crankshaft (PTO side)
  • 28
    420818690 Crankshaft (MAG side)
    Crankshaft (MAG side)
  • 29
    420886955 Crankshaft Repair Kit (PTO side)
    Crankshaft Repair Kit (PTO side)
  • 420886956 Crankshaft Repair Kit (MAG side)
    Crankshaft Repair Kit (MAG side)
  • 30
    293800023 Loctite 767, Antiseize Lubricant, 454 g
    Loctite 767, Antiseize Lubricant, 454 g
  • 31
    413711400 Loctite 648, 10 ml
    Loctite 648, 10 ml
  • 32
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 33
    413707000 Molykote 111
    Molykote 111
  • 34
    413802900 Injection Oil (12 x 1 Liter)
    Injection Oil (12 x 1 Liter)
