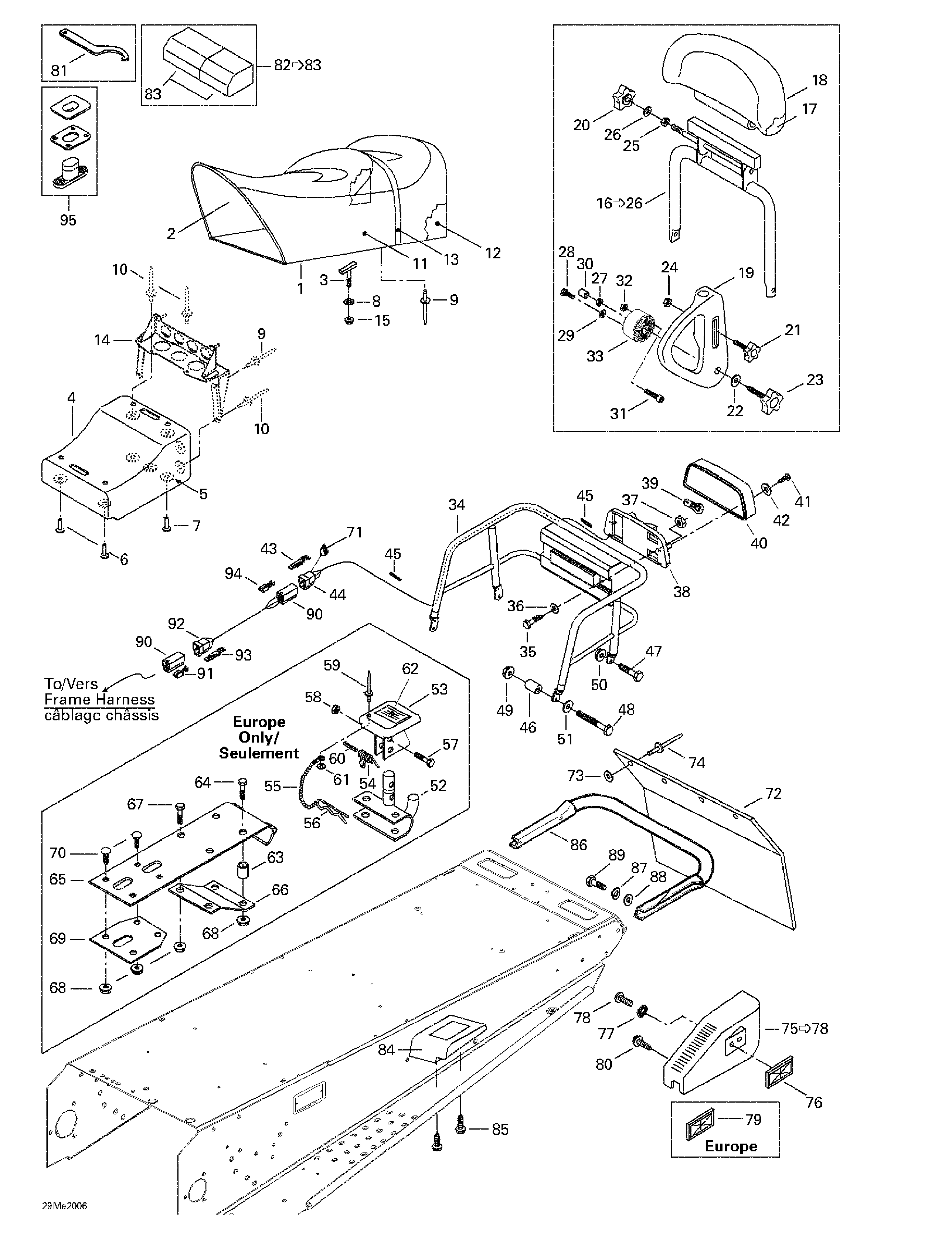

09- Seat And Accessories для BRP Ski-Doo Touring 500 LC - 2000
-
№АртикулНазвание
-
2510003597 Seat SubSeat Sub
-
3732601221 > Bolt> Bolt
-
4572051200 Rear TrunkRear Trunk
-
5234051410 Flat Washer 5 mmFlat Washer 5 mm
-
8732610072 Push NutPush Nut
-
11510003705 Seat CoverSeat Cover
-
12415038202 Seat FoamSeat Foam
-
13415064800 Seat BeltSeat Belt
-
15233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
16510003717 Seat Backrest Ass'y. Includes 16 - 26.Seat Backrest Ass'y. Includes 16 - 26.
-
17510003779 FoamFoam
-
18510003780 CoverCover
-
19510003542 R.H. ArmR.H. Arm
-
510003607 L.H. ArmL.H. Arm
-
20510003532 Female HandleFemale Handle
-
21510003533 Male Handle M8 x 35Male Handle M8 x 35
-
22732900050 WasherWasher
-
23510003534 Male Handle M12 x 50Male Handle M12 x 50
-
24510003576 Hex. Nut M8Hex. Nut M8
-
25510003578 Hex. Nut M8Hex. Nut M8
-
26510003584 Lock Washer 8 mmLock Washer 8 mm
-
28207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
29234181601 Lock Washer 8 mmLock Washer 8 mm
-
30510003628 HoseHose
-
31205085044 Socket Head Screw M8 x 50Socket Head Screw M8 x 50
-
32232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
33510003707 PivotPivot
-
34517273100 RackRack
-
35207053044 Hex. Screw M5 x 30Hex. Screw M5 x 30
-
36517297900 Flat WasherFlat Washer
-
37233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
38515175404 Tail Lamp HousingTail Lamp Housing
-
39410504000 BulbBulb
-
40414513700 LensLens
-
41209632540 Self Tapping ScrewSelf Tapping Screw
-
42414516400 WasherWasher
-
43409210000 Male TerminalMale Terminal
-
44409204200 Male Connector Housing (3 circuits)Male Connector Housing (3 circuits)
-
45515175332 TubingTubing
-
46517185600 SpacerSpacer
-
47207161844 Hex. Screw M6 x 18Hex. Screw M6 x 18
-
48207064044 Hex. Screw M6 x 40Hex. Screw M6 x 40
-
49233261414 Elastic Flanged Nut M6 (Europe)Elastic Flanged Nut M6 (Europe)
-
50233061414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
51234061410 Flat Washer 6 mmFlat Washer 6 mm
-
52517199300 Hitch (Europe)Hitch (Europe)
-
53517152700 Hitch Protector (Europe)Hitch Protector (Europe)
-
54517152800 Spring (Europe)Spring (Europe)
-
56114045200 Hair Pin (Europe)Hair Pin (Europe)
-
57207063044 Hex. Screw M6 x 30 (Europe)Hex. Screw M6 x 30 (Europe)
-
58232561414 Elastic Stop Nut M6 (Europe)Elastic Stop Nut M6 (Europe)
-
59390409400 Pop Rivet 5/32 (Europe)Pop Rivet 5/32 (Europe)
-
60732804000 Spring Pin (Europe)Spring Pin (Europe)
-
62414998500 Instruction Label (Europe)Instruction Label (Europe)
-
63517191700 Spacer (Europe)Spacer (Europe)
-
64207065044 Hex. Screw M6 x 50 (Europe)Hex. Screw M6 x 50 (Europe)
-
65511000019 Support (Europe)Support (Europe)
-
66511000022 Reinforcement (Europe)Reinforcement (Europe)
-
67207161844 Hex. Screw M6 x 18 (Europe)Hex. Screw M6 x 18 (Europe)
-
68233261414 Elastic Flanged Nut M6 (Europe)Elastic Flanged Nut M6 (Europe)
-
69517256100 Inner Plate (Europe)Inner Plate (Europe)
-
70207762044 Carriage Bolt M6 x 20 (Europe)Carriage Bolt M6 x 20 (Europe)
-
71293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
72572059700 Snow Guard (Black)Snow Guard (Black)
-
73517225900 Flat WasherFlat Washer
-
74390908000 Pop Rivet 3/16 (Black)Pop Rivet 3/16 (Black)
-
75580642800 R.H. Moulding Ass'y. Includes 75 - 78.R.H. Moulding Ass'y. Includes 75 - 78.
-
580642900 L.H. Moulding Ass'yL.H. Moulding Ass'y
-
76414510100 Red ReflectorRed Reflector
-
77234451418 Serrated Lock Washer 5 mmSerrated Lock Washer 5 mm
-
78208651041 Phillips Screw M5 x 10Phillips Screw M5 x 10
-
79414510200 Amber Reflector (Europe)Amber Reflector (Europe)
-
80365901100 Self Tapping Screw M12 x 3/4Self Tapping Screw M12 x 3/4
-
81529032900 Wrench AdjusterWrench Adjuster
-
82529035500 Tool Box Kit. Includes 82 - 83.Tool Box Kit. Includes 82 - 83.
-
529019200 Screw Driver (Not Shown)Screw Driver (Not Shown)
-
529014900 Wrench Socket (10/13 mm) (Not Shown)Wrench Socket (10/13 mm) (Not Shown)
-
529014800 Wrench Socket (21/26 mm) (Not Shown)Wrench Socket (21/26 mm) (Not Shown)
-
529017300 Wrench Fork (10/13 mm) (Not Shown)Wrench Fork (10/13 mm) (Not Shown)
-
529014700 Multi-Wrench (Not Shown)Multi-Wrench (Not Shown)
-
412500100 Rope-Starter (Not Shown)Rope-Starter (Not Shown)
-
529019400 Starter Grip (Not Shown)Starter Grip (Not Shown)
-
529035501 Tool-Spacing (Not Shown)Tool-Spacing (Not Shown)
-
529019300 Wrench Fork (15/17 mm) (Not Shown)Wrench Fork (15/17 mm) (Not Shown)
-
83572036310 Tool Box Ass'yTool Box Ass'y
-
84572088700 R.H. Rear FootrestR.H. Rear Footrest
-
572088800 L.H. Rear FootrestL.H. Rear Footrest
-
85243141640 Hex. Screw M4.8 x 16Hex. Screw M4.8 x 16
-
86517243800 Rear BumperRear Bumper
-
87234181401 Lock Washer 8 mmLock Washer 8 mm
-
88234081410 Flat Washer 8 mmFlat Washer 8 mm
-
89207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
90409204300 Female Connector Housing (3 circuits)Female Connector Housing (3 circuits)
-
91561503100 Female TerminalFemale Terminal
-
92409204200 Male Connector Housing (3 circuits)Male Connector Housing (3 circuits)
-
93409206100 Male TerminalMale Terminal
-
94561503100 Female TerminalFemale Terminal
-
95414728000 Buckle-SeatBuckle-Seat
