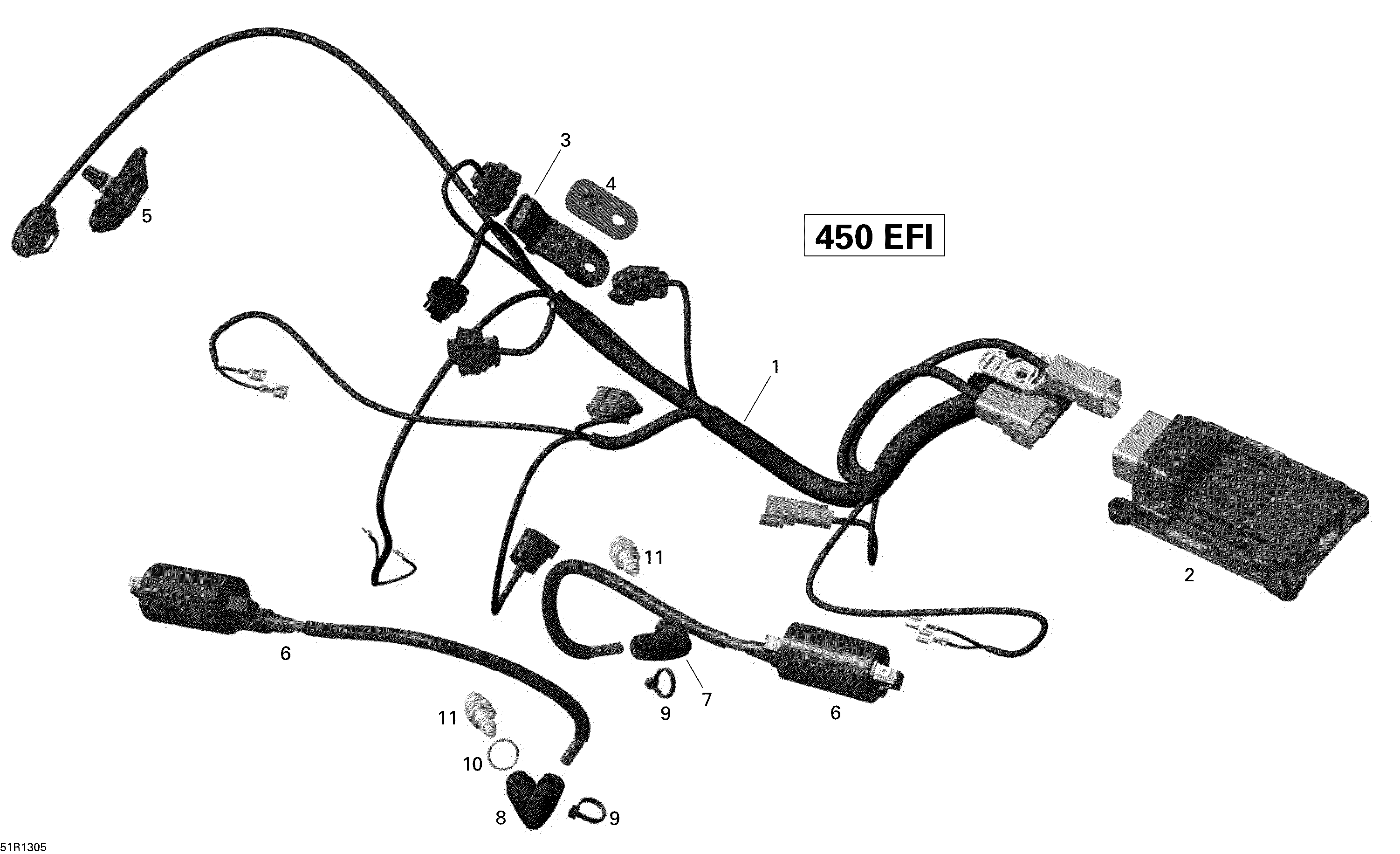

10- Engine Harness And Electronic Module для BRP DS 450EFI Xmx - 2013
‹-+›
-
№АртикулНазвание
-
1420665590 Engine Wiring Harness Ass'yEngine Wiring Harness Ass'y
-
2420266696 ECM, Engine Control ModuleECM, Engine Control Module
-
3420274055 MAPS, Manifold Air Pressure SensorMAPS, Manifold Air Pressure Sensor
-
4420460700 AdaptorAdaptor
-
5707000564 Pressure And Temperature SensorPressure And Temperature Sensor
-
6420265414 Ignition CoilIgnition Coil
-
7420265244 Spark Plug Connector, ShortSpark Plug Connector, Short
-
8420265246 Spark Plug Connector, LongSpark Plug Connector, Long
-
9420866710 Tie RapTie Rap
-
10420230890 O-RingO-Ring
-
11278002297 Spark Plug NGK DCPR9ESpark Plug NGK DCPR9E
