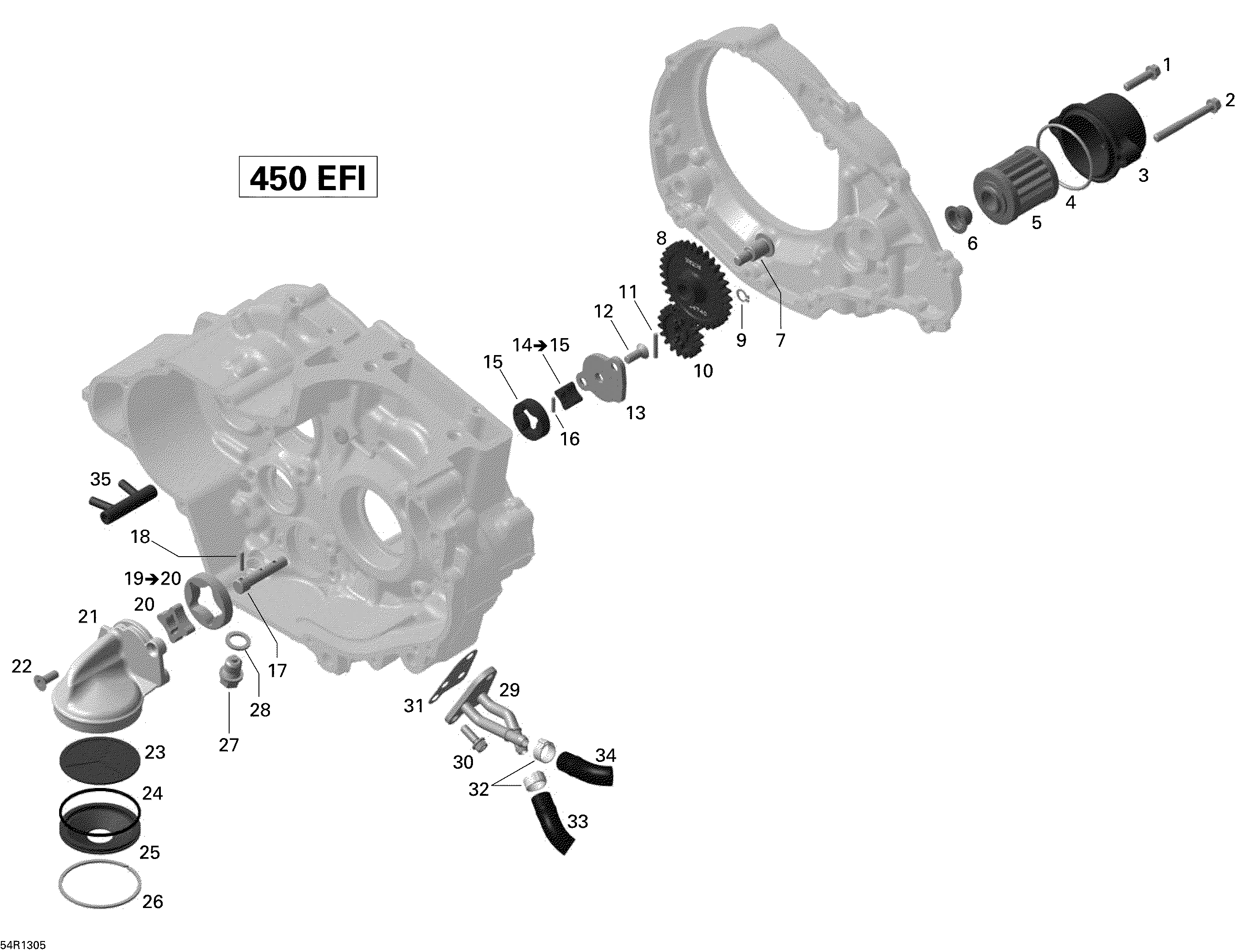

01- Engine Lubrication для BRP DS 450EFI Xmx - 2013
-
№АртикулНазвание
-
1420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
2420440702 Flanged Torx Screw M6 X 55Flanged Torx Screw M6 X 55
-
3420211509 Oil Filter CoverOil Filter Cover
-
4420430920 O-RingO-Ring
-
5420256455 Oil FilterOil Filter
-
6420647100 SleeveSleeve
-
7420241150 Bearing Bolt M8Bearing Bolt M8
-
8420434740 Idle Gear, 31 TeethIdle Gear, 31 Teeth
-
9420245570 Retaining RingRetaining Ring
-
10420434730 Oil Pump Gear, 18 TeethOil Pump Gear, 18 Teeth
-
11420932840 Needle PinNeedle Pin
-
12420440906 Countersunk Screw M6 X 16Countersunk Screw M6 X 16
-
13420611791 Oil Pump CoverOil Pump Cover
-
14420256477 Inner And Outer Rotor Ass'y. Includes 14 to 15Inner And Outer Rotor Ass'y. Includes 14 to 15
-
16420832560 Needle PinNeedle Pin
-
17420620810 Oil Pump ShaftOil Pump Shaft
-
18420232980 Needle PinNeedle Pin
-
19420256117 Inner And Outer Rotor Ass'y. Includes 19 to 20Inner And Outer Rotor Ass'y. Includes 19 to 20
-
21420610740 Oil Sieve CoverOil Sieve Cover
-
22420941436 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
23420256570 Oil SieveOil Sieve
-
24420650695 O-RingO-Ring
-
25420256650 Oil CollectorOil Collector
-
26420845590 Snap RingSnap Ring
-
27420241786 Magnetic Drain PlugMagnetic Drain Plug
-
28420250640 Copper WasherCopper Washer
-
29420656460 Connection CoverConnection Cover
-
30420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
31420431120 GasketGasket
-
32420851458 ClampClamp
-
33420460791 Oil HoseOil Hose
-
34420460794 Oil HoseOil Hose
-
35420656300 Oil TubeOil Tube
