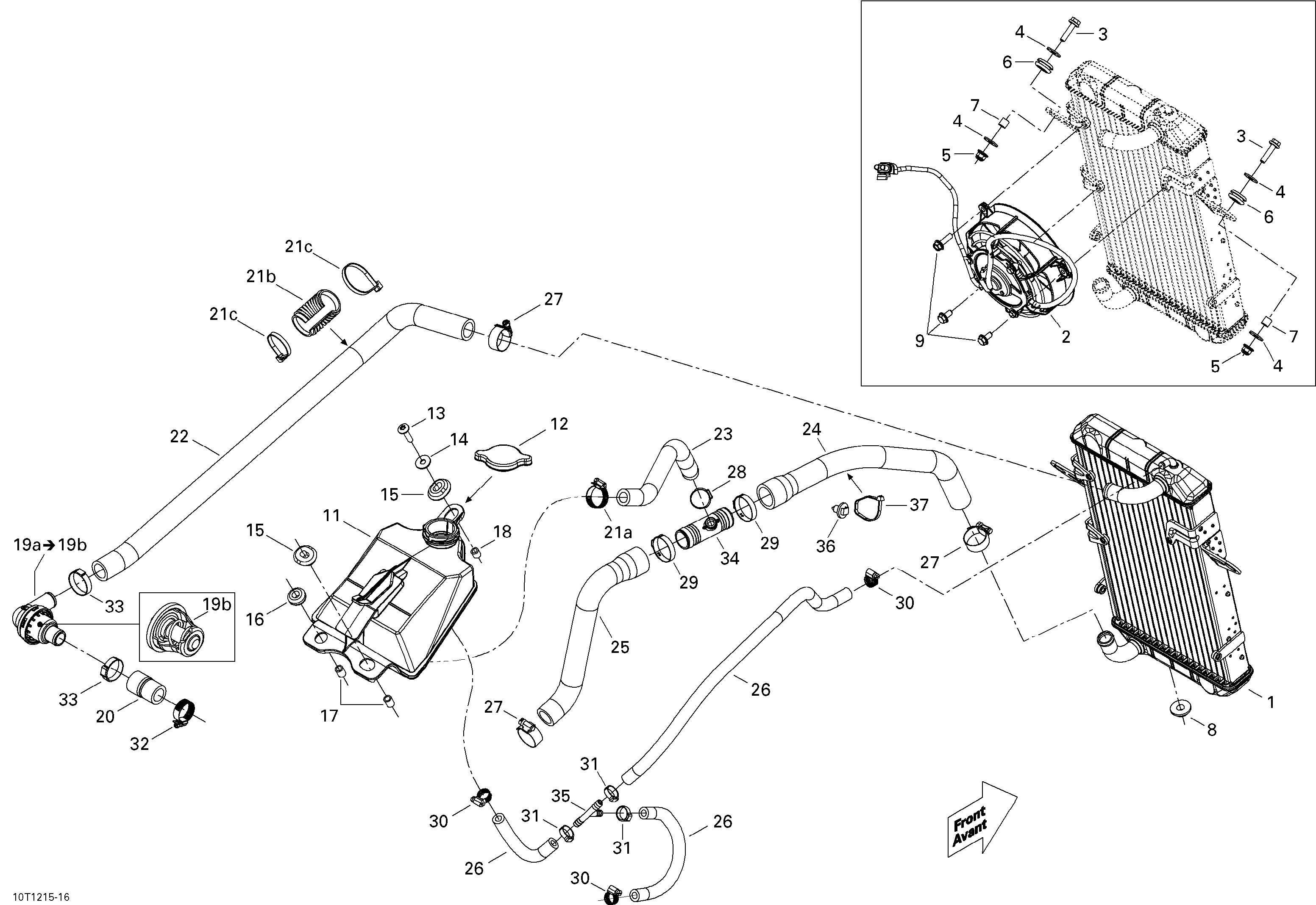

01- Cooling System для BRP DS 450EFI Xmx - 2013
‹-+›
-
№АртикулНазвание
-
1709200152 RadiatorRadiator
-
2709200230 FanFan
-
3207662534 Hex. Flanged ScrewHex. Flanged Screw
-
4250200099 Flat WasherFlat Washer
-
5233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
6293720053 GrommetGrommet
-
7293900105 BushingBushing
-
8705003932 GrommetGrommet
-
9207561234 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
11709200164 TankTank
-
12709200207 Pressure CapPressure Cap
-
13207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
14250200082 Flat WasherFlat Washer
-
15705000321 Oval WasherOval Washer
-
16293720053 GrommetGrommet
-
17293900019 BushingBushing
-
18293900105 BushingBushing
-
19a709200172 Thermostat Ass'y. Includes 19a to 19bThermostat Ass'y. Includes 19a to 19b
-
19b420222495 ThermostatThermostat
-
20709200200 HoseHose
-
21a293650173 Tridon Gear ClampTridon Gear Clamp
-
21b409902200 Tubing 25 mmTubing 25 mm
-
21c414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
22709200236 Radiator In HoseRadiator In Hose
-
23276000151 Hose 12.5 mmHose 12.5 mm
-
24709200237 Radiator Out HoseRadiator Out Hose
-
25709200238 Hose PumpHose Pump
-
26509000407 Hose 8 mmHose 8 mm
-
27293650051 Tridon Gear ClampTridon Gear Clamp
-
28293650012 Oetiker ClampOetiker Clamp
-
29509000045 Oetiker Gear ClampOetiker Gear Clamp
-
30293650084 Norma ClampNorma Clamp
-
31293650125 Oetiker ClampOetiker Clamp
-
32293650173 Tridon Gear ClampTridon Gear Clamp
-
33293650099 Oetiker Gear ClampOetiker Gear Clamp
-
34509000390 Y-FittingY-Fitting
-
35293710024 T-FittingT-Fitting
-
36293730018 Mount DartMount Dart
-
37414115200 Tie-Rap 180 mmTie-Rap 180 mm
