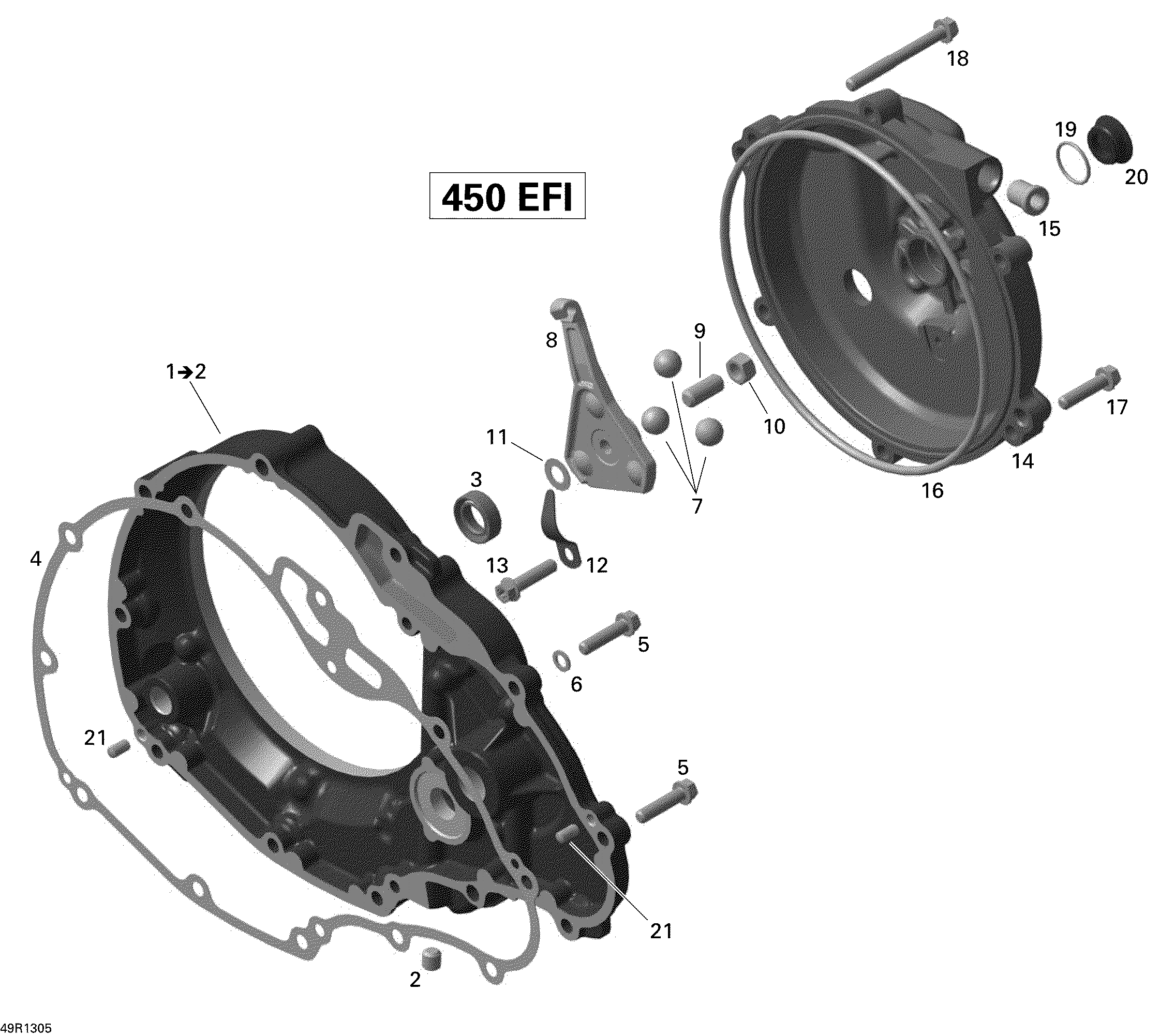

01- Clutch Cover для BRP DS 450EFI Xmx - 2013
-
№АртикулНазвание
-
1420611666 Clutch Cover. Includes 1 to 2Clutch Cover. Includes 1 to 2
-
2420941611 Plug ScrewPlug Screw
-
3420250455 Oil SealOil Seal
-
4420430995 GasketGasket
-
5420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
6420230415 Seal WasherSeal Washer
-
7420232150 Ball 12 mmBall 12 mm
-
8420259325 Clutch Release CamClutch Release Cam
-
9420240310 Adjustment Screw M8 X 19.5Adjustment Screw M8 X 19.5
-
10420942674 Hex. Nut M8Hex. Nut M8
-
11420227945 WasherWasher
-
12420239907 SpringSpring
-
13210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
14420210966 Clutch Release CoverClutch Release Cover
-
15420629010 Thread Sleeve M8Thread Sleeve M8
-
16420431432 GasketGasket
-
17420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
18420440702 Flanged Torx Screw M6 X 55Flanged Torx Screw M6 X 55
-
19420250890 O-RingO-Ring
-
20420241800 Plug Screw M18Plug Screw M18
-
21420929650 Drive Pin 5 X 10Drive Pin 5 X 10
