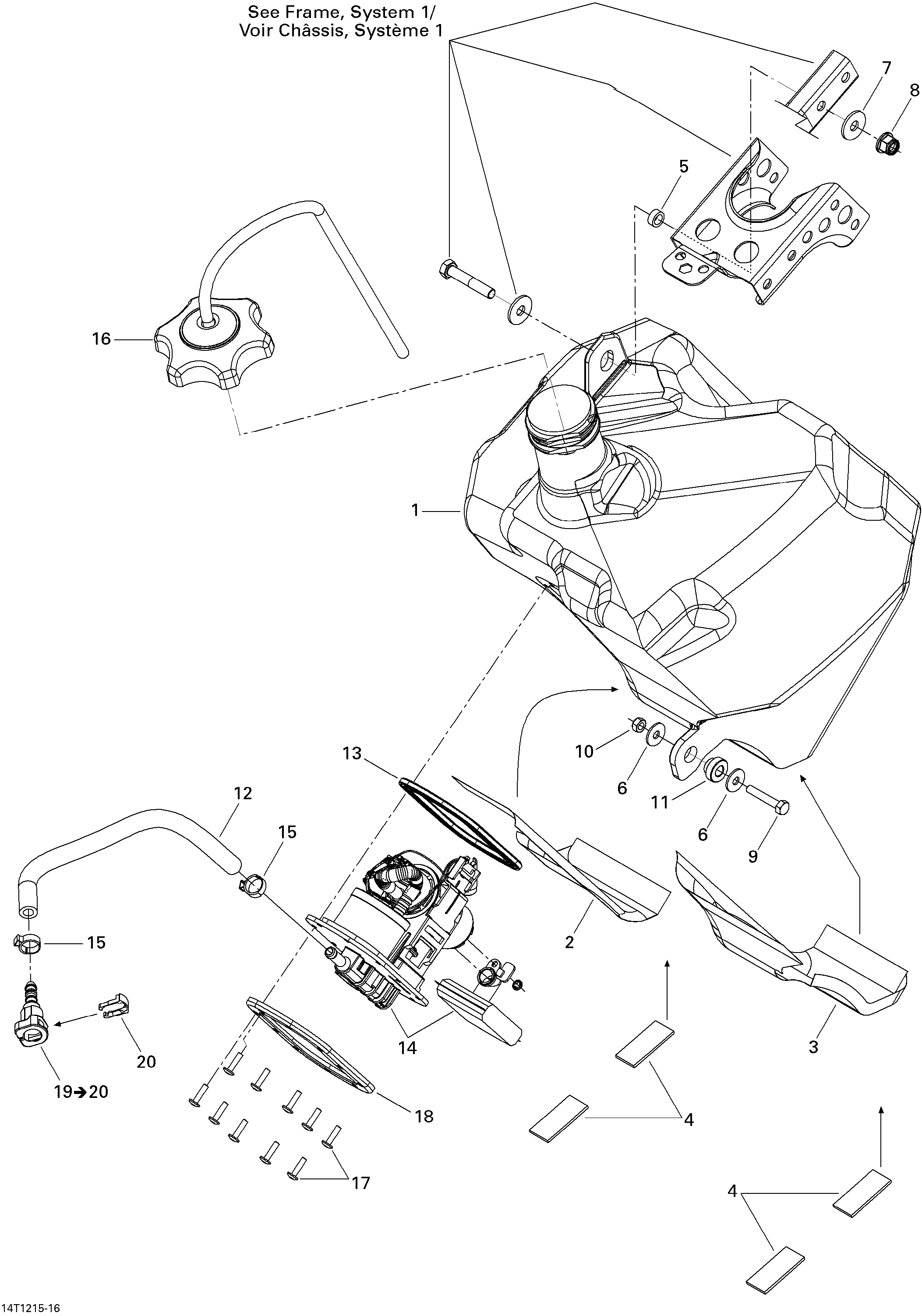

02- Fuel System для BRP DS 450EFI Xmx - 2013
-
№АртикулНазвание
-
1709000237 Fuel TankFuel Tank
-
2709000242 Reflective SheetReflective Sheet
-
3709000243 Reflective SheetReflective Sheet
-
4709000401 Rubber PadRubber Pad
-
5293900067 BushingBushing
-
6250200082 Flat WasherFlat Washer
-
7234082430 Flat Washer M8Flat Washer M8
-
8233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
9207063544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
10232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
11293900088 BushingBushing
-
12709000163 Fuel LineFuel Line
-
13709000109 GasketGasket
-
14709000386 Fuel PumpFuel Pump
-
15293650047 Crimp ClampCrimp Clamp
-
16709000117 Fuel CapFuel Cap
-
17250000242 Truss Torx Screw M4 X 16Truss Torx Screw M4 X 16
-
18709000170 Pump RingPump Ring
-
19709000125 Female Quick Fitting Ass'y. Includes 19 to 20Female Quick Fitting Ass'y. Includes 19 to 20
-
20513033135 Locking ClipLocking Clip
