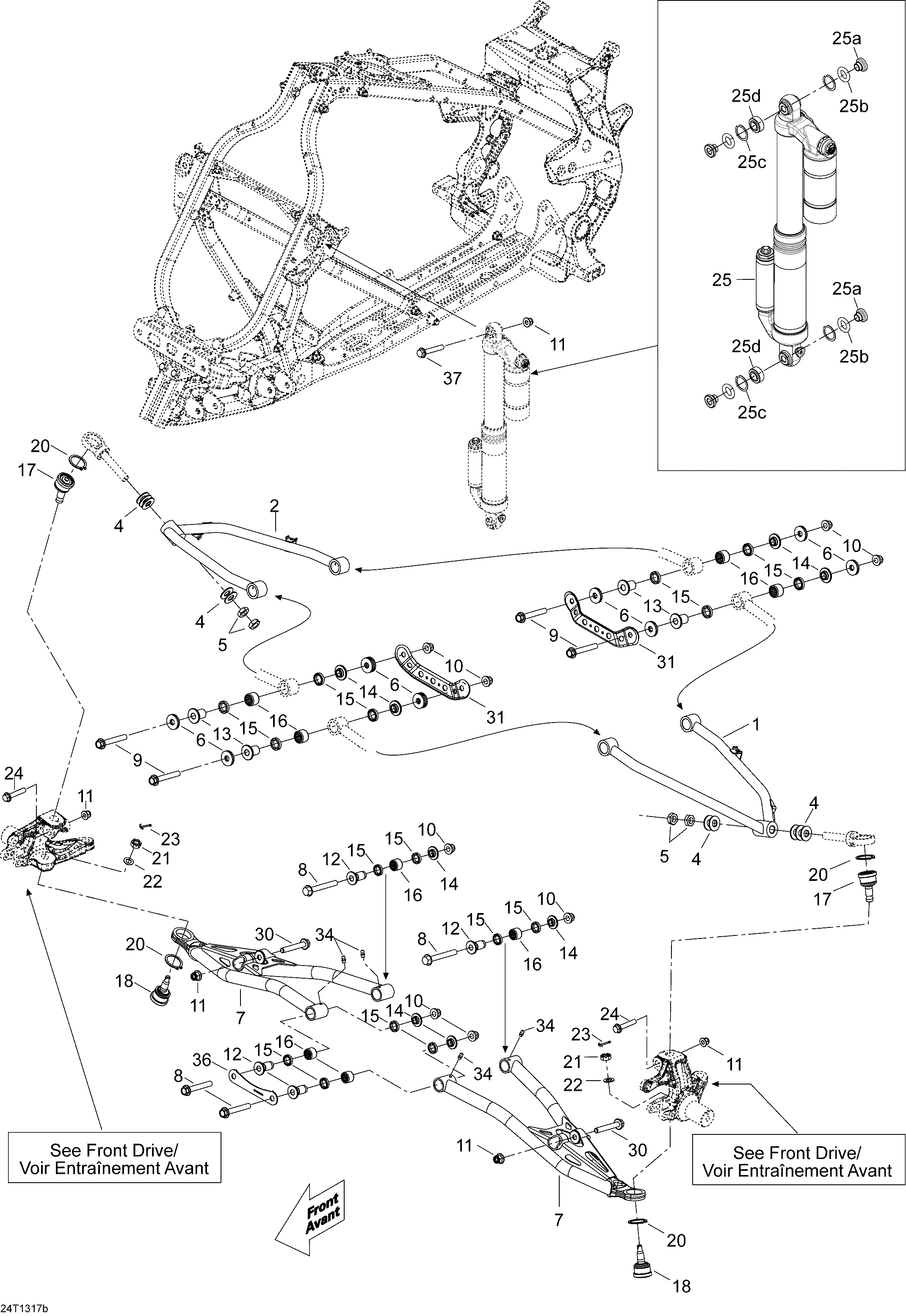

07- Front Suspension Xmx для BRP DS 450EFI Xmx - 2013
-
№АртикулНазвание
-
1706201128 LH Upper ArmLH Upper Arm
-
2706201134 RH Upper ArmRH Upper Arm
-
4250200079 Flat WasherFlat Washer
-
5232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
6250200014 Flat WasherFlat Washer
-
7706201398 Lower ArmLower Arm
-
8207607036 Hex. Flanged ScrewHex. Flanged Screw
-
9207607546 Hex. Flanged Screw M10 X 75Hex. Flanged Screw M10 X 75
-
10233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
11233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
12706200890 Inner BushingInner Bushing
-
13706200888 Inner BushingInner Bushing
-
14706200889 Inner BushingInner Bushing
-
15293200120 SealSeal
-
16293350064 Needle BearingNeedle Bearing
-
17706200462 Upper Ball JointUpper Ball Joint
-
18706200461 Lower Ball JointLower Ball Joint
-
20293370009 Circlip 32 mmCirclip 32 mm
-
21250100094 Castle NutCastle Nut
-
22234001410 Flat Washer 10 mmFlat Washer 10 mm
-
23250400035 Cotter PinCotter Pin
-
24207605534 Hex. Flanged ScrewHex. Flanged Screw
-
25706201591 RH Front Shock. Includes 25 to 25dRH Front Shock. Includes 25 to 25d
-
25706201592 LH Front Shock. Includes 25 to 25dLH Front Shock. Includes 25 to 25d
-
25a715900211 Inner BushingInner Bushing
-
25b715900209 O-Ring BushingO-Ring Bushing
-
25c715900252 Retaining RingRetaining Ring
-
25d715900251 Spherical BearingSpherical Bearing
-
30207605534 Hex. Flanged ScrewHex. Flanged Screw
-
31706200532 Front Suspension Upper PlateFront Suspension Upper Plate
-
34250000315 Grease FittingGrease Fitting
-
36706200722 Front Suspension Lower PlateFront Suspension Lower Plate
-
37207606534 Hex. Flanged Screw M10 X 65Hex. Flanged Screw M10 X 65
