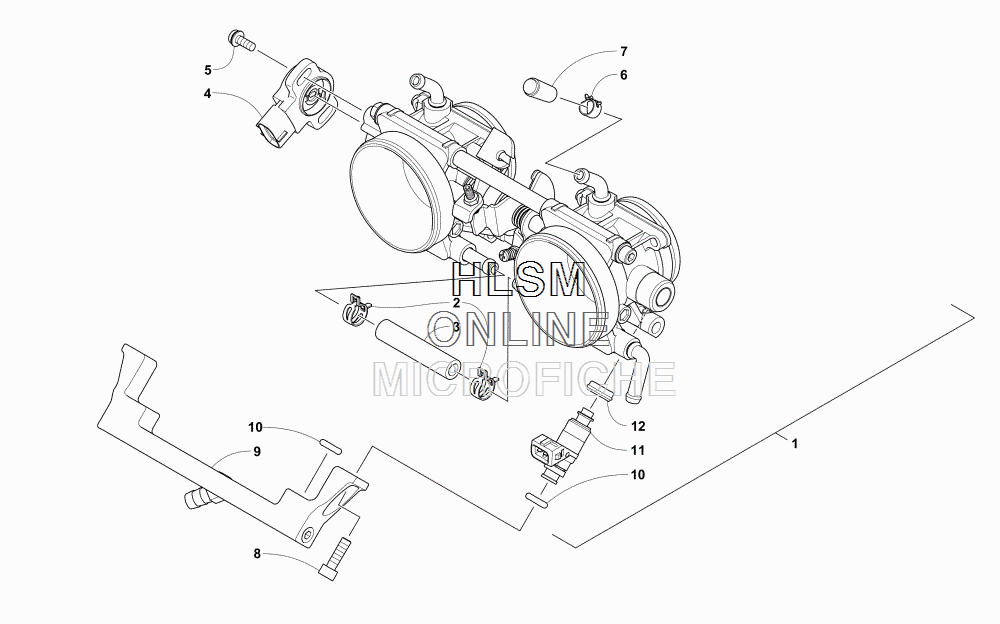

THROTTLE BODY ASSEMBLY для Arctic Cat ZR 6000 R SX GREEN - 2017 года выпуска
-
№АртикулНазвание
-
12900-077 BODY, THROTTLE - ASSEMBLY (INC. 2-5 AND 11-12)BODY, THROTTLE - ASSEMBLY (INC. 2-5 AND 11-12)
-
26506-424 ...HOSE...HOSE
-
36506-338 ...CLAMP, HOSE...CLAMP, HOSE
-
46506-425 ...SENSOR, THROTTLE - ASSEMBLY...SENSOR, THROTTLE - ASSEMBLY
-
56506-075 ...SCREW, MACHINE...SCREW, MACHINE
-
61623-234 CLAMPCLAMP
-
70670-323 PLUGPLUG
-
81623-582 SCREW, CAPSCREW, CAP
-
92900-075 RAIL, FUEL (INC. TWO NO. 10)RAIL, FUEL (INC. TWO NO. 10)
-
100930-036 ...O-RING...O-RING
-
110910-009 INJECTOR (INC. TWO NO. 10)INJECTOR (INC. TWO NO. 10)
-
120930-032 SEAL, INJECTORSEAL, INJECTOR
