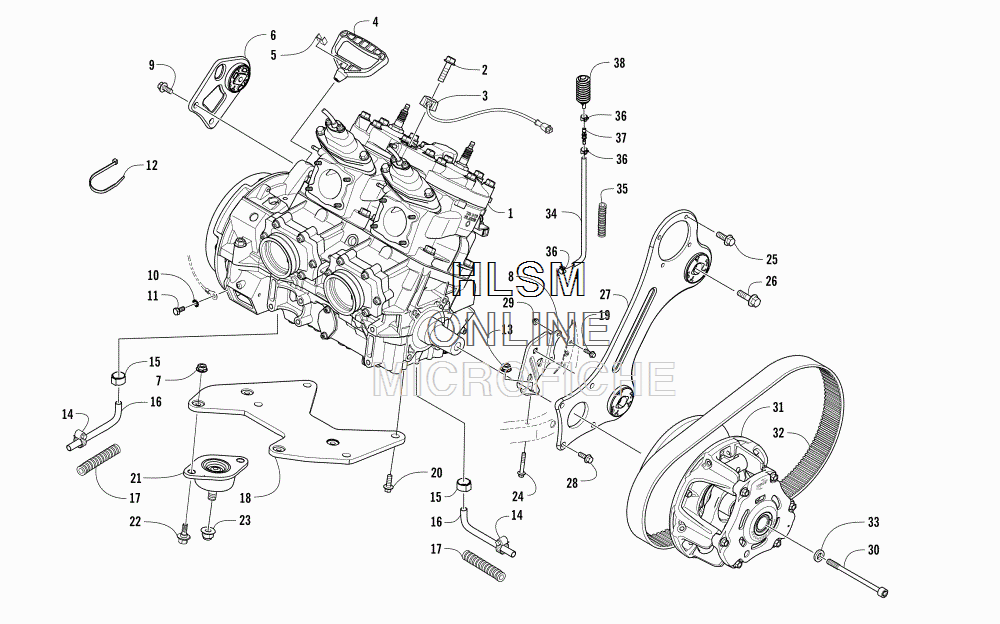

ENGINE AND RELATED PARTS для Arctic Cat ZR 6000 R SX GREEN - 2017 года выпуска
-
№АртикулНазвание
-
10962-049 ENGINE, LONG BLOCKENGINE, LONG BLOCK
-
10962-051 ENGINE, SHORT BLOCKENGINE, SHORT BLOCK
-
20923-049 SCREW, CAPSCREW, CAP
-
30902-024 SENSOR, KNOCKSENSOR, KNOCK
-
40636-363 HANDLE, RECOILHANDLE, RECOIL
-
50606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
60708-672 BRACKET, ENGINE MOUNTING - MAGBRACKET, ENGINE MOUNTING - MAG
-
78424-602 NUTNUT
-
80608-788 BRACKET, SUPPORTBRACKET, SUPPORT
-
98409-026 SCREW, CAPSCREW, CAP
-
108053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
110923-030 SCREW, CAPSCREW, CAP
-
120123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
120123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
138427-602 NUT, LOCKNUT, LOCK
-
140623-373 CLAMP, HOSECLAMP, HOSE
-
150610-563 CLAMP, HOSECLAMP, HOSE
-
160610-779 HOSE, COOLANT - THROTTLE BODYHOSE, COOLANT - THROTTLE BODY
-
170619-776 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
180608-790 PLATE, ENGINE MOUNTING - LOWERPLATE, ENGINE MOUNTING - LOWER
-
198476-516 SCREW, MACHINESCREW, MACHINE
-
208409-026 SCREW, CAPSCREW, CAP
-
210708-658 MOUNT, ENGINE - LOWERMOUNT, ENGINE - LOWER
-
221623-944 SCREW, SHOULDERSCREW, SHOULDER
-
238427-002 NUT, LOCKNUT, LOCK
-
248408-616 SCREW, CAPSCREW, CAP
-
258408-621 SCREW, CAPSCREW, CAP
-
268408-826 SCREW, CAPSCREW, CAP
-
270708-673 PLATE, ENGINE MOUNTING - PTOPLATE, ENGINE MOUNTING - PTO
-
288409-821 SCREW, CAPSCREW, CAP
-
298427-502 NUT, LOCKNUT, LOCK
-
301623-792 BOLT, CLUTCHBOLT, CLUTCH
-
310746-449 CLUTCH, DRIVE - UNCALIBRATEDCLUTCH, DRIVE - UNCALIBRATED
-
320627-086 BELT, DRIVEBELT, DRIVE
-
331623-649 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
340610-968 HOSE - CLEAR - 25 FTHOSE - CLEAR - 25 FT
-
351619-359 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
361623-351 CLAMP, HOSECLAMP, HOSE
-
372670-603 FITTINGFITTING
-
381402-620 BLADDERBLADDER
