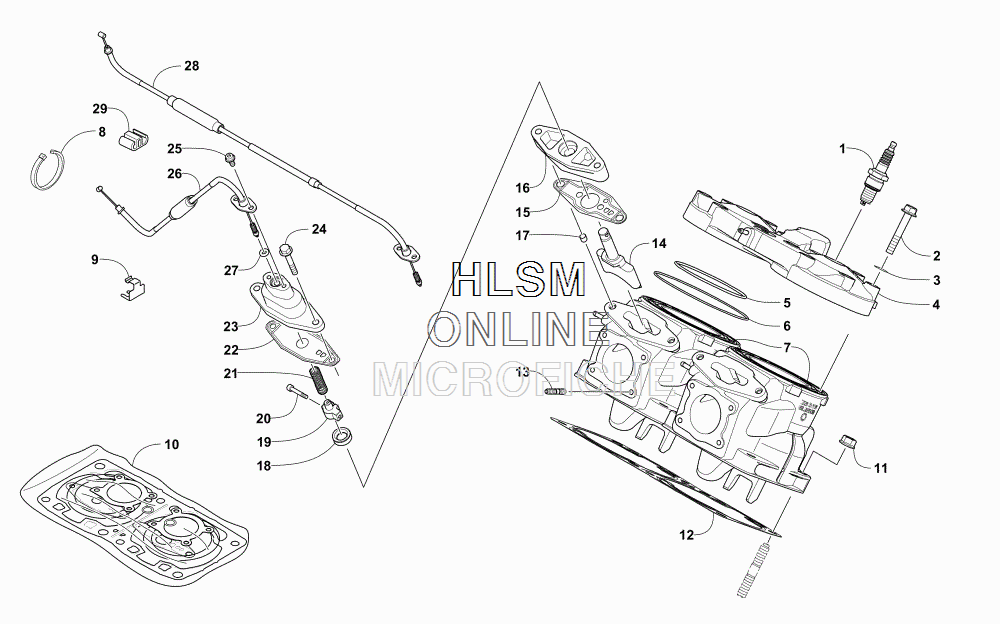

CYLINDER AND HEAD ASSEMBLY для Arctic Cat ZR 6000 R SX GREEN - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    0217-762 PLUG, SPARK
    PLUG, SPARK
  • 2
    0923-012 SCREW, CAP
    SCREW, CAP
  • 3
    0930-019 O-RING
    O-RING
  • 4
    1904-008 HEAD, CYLINDER
    HEAD, CYLINDER
  • 5
    0930-018 O-RING
    O-RING
  • 6
    0930-020 O-RING
    O-RING
  • 7
    1904-007 CYLINDER
    CYLINDER
  • 8
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 9
    0909-002 CLIP, RETAINING
    CLIP, RETAINING
  • 10
    6639-613 GASKET SET - TOP END
    GASKET SET - TOP END
  • 10
    6639-614 GASKET SET - COMPLETE
    GASKET SET - COMPLETE
  • 11
    0923-029 NUT
    NUT
  • 12
    0930-049 GASKET, CYLINDER
    GASKET, CYLINDER
  • 13
    0923-053 BOLT, STUD
    BOLT, STUD
  • 14
    0909-045 VALVE, EXHAUST
    VALVE, EXHAUST
  • 15
    0930-022 GASKET, EXHAUST VALVE CASE
    GASKET, EXHAUST VALVE CASE
  • 16
    1909-001 PLATE, EXHAUST VALVE (INC. 17-18)
    PLATE, EXHAUST VALVE (INC. 17-18)
  • 17
    0829-062 ...PIN, DOWEL
    ...PIN, DOWEL
  • 18
    0930-001 ...SEAL, OIL
    ...SEAL, OIL
  • 19
    0909-041 CLAMP, EXHAUST VALVE
    CLAMP, EXHAUST VALVE
  • 20
    0923-005 PIN, EXHAUST VALVE
    PIN, EXHAUST VALVE
  • 21
    0909-020 SPRING
    SPRING
  • 22
    0930-010 GASKET, EXHAUST VALVE COVER
    GASKET, EXHAUST VALVE COVER
  • 23
    0909-018 COVER, EXHAUST VALVE
    COVER, EXHAUST VALVE
  • 24
    0923-021 SCREW, CAP
    SCREW, CAP
  • 25
    0923-002 SCREW, CAP
    SCREW, CAP
  • 26
    0909-019 CABLE, EXHAUST VALVE - SHORT
    CABLE, EXHAUST VALVE - SHORT
  • 27
    0930-008 O-RING
    O-RING
  • 28
    0909-006 CABLE, EXHAUST VALVE - LONG - PTO
    CABLE, EXHAUST VALVE - LONG - PTO
  • 29
    0909-001 CLAMP, EXHAUST VALVE CABLE
    CLAMP, EXHAUST VALVE CABLE
