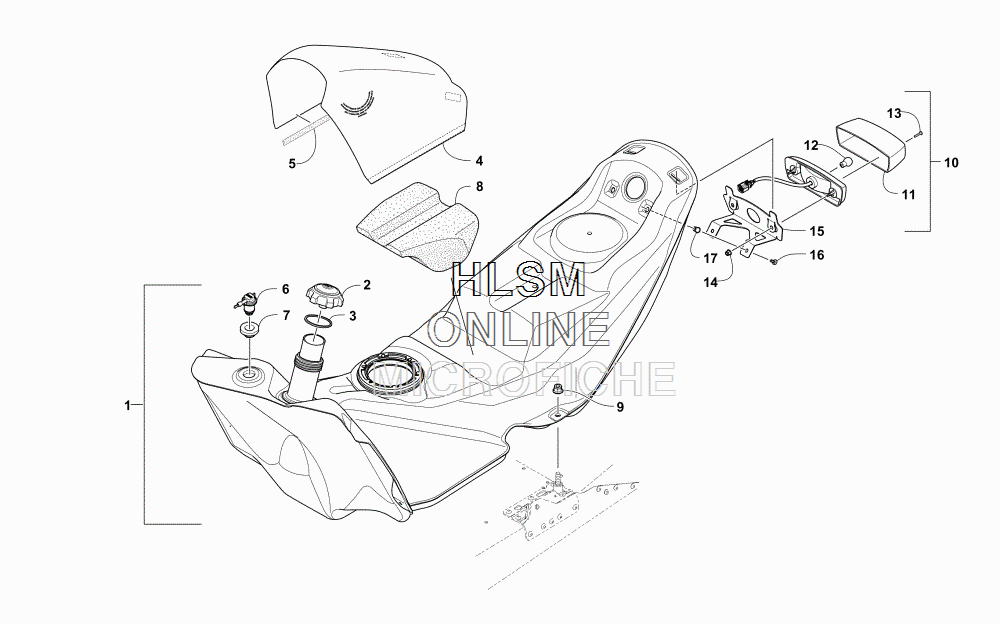

GAS TANK AND TAILLIGHT ASSEMBLY для Arctic Cat ZR 6000 R SX GREEN - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    2670-337 TANK, GAS - ASSEMBLY (INC. 6-7)
    TANK, GAS - ASSEMBLY (INC. 6-7)
  • 2
    2670-077 CAP, GAS TANK (INC. 3)
    CAP, GAS TANK (INC. 3)
  • 3
    0109-733 ...SEAL, TANK CAP
    ...SEAL, TANK CAP
  • 4
    5706-322 COVER, GAS TANK (INC. 5)
    COVER, GAS TANK (INC. 5)
  • 5
    6990-323 ...VELCRO - 3 FT
    ...VELCRO - 3 FT
  • 6
    1670-787 VALVE, CHECK
    VALVE, CHECK
  • 7
    1670-822 GROMMET
    GROMMET
  • 8
    0617-671 FOAM, SEAT - LOWER
    FOAM, SEAT - LOWER
  • 9
    8427-802 NUT
    NUT
  • 10
    3303-136 TAILLIGHT ASSEMBLY (INC. 11-13)
    TAILLIGHT ASSEMBLY (INC. 11-13)
  • 11
    3303-421 ...LENS, TAILLIGHT
    ...LENS, TAILLIGHT
  • 12
    3303-849 ...BULB, TAILLIGHT
    ...BULB, TAILLIGHT
  • 13
    3304-537 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 14
    8427-602 NUT, LOCK
    NUT, LOCK
  • 15
    0630-293 BRACKET, MOUNTING - TAILLIGHT
    BRACKET, MOUNTING - TAILLIGHT
  • 16
    0623-902 SCREW, MACHINE
    SCREW, MACHINE
  • 17
    0623-845 NUT, EXPANSION
    NUT, EXPANSION
