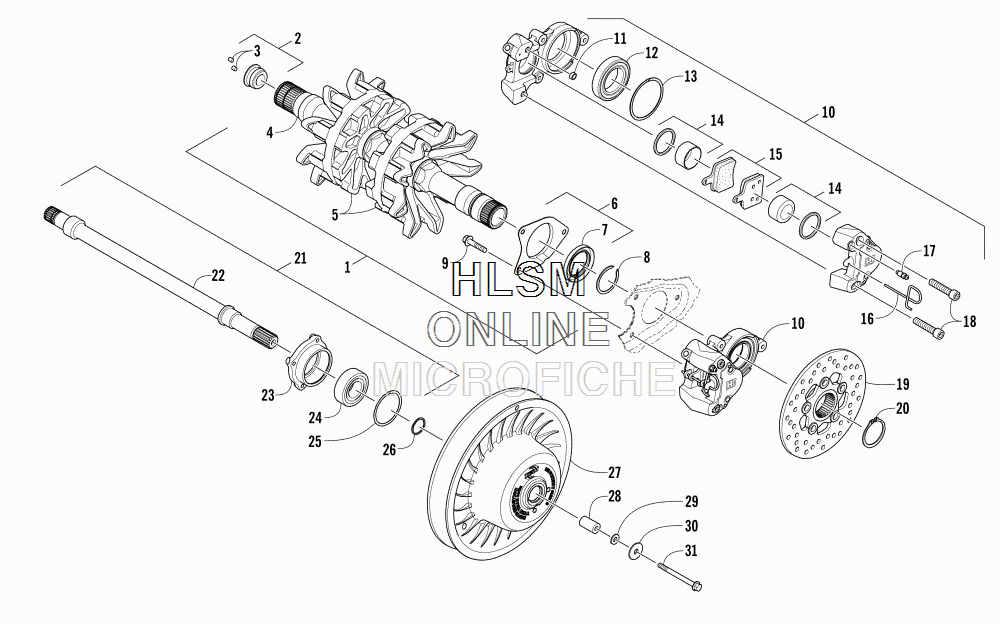

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat ZR 6000 R SX GREEN - 2017 года выпуска`
-
№АртикулНазвание
-
10728-243 TRACK, DRIVE - ASSEMBLY (INC. 2-8)TRACK, DRIVE - ASSEMBLY (INC. 2-8)
-
21702-243 ...PLUG, MAGNETIC - ASSEMBLY (INC. 3)...PLUG, MAGNETIC - ASSEMBLY (INC. 3)
-
32602-211 ......MAGNET......MAGNET
-
42602-706 ...DRIVESHAFT...DRIVESHAFT
-
52602-182 ...SPROCKET, DRIVE...SPROCKET, DRIVE
-
61702-206 ...PLATE, RETAINING - SEAL (INC. 7)...PLATE, RETAINING - SEAL (INC. 7)
-
71602-344 ......SEAL......SEAL
-
82602-233 ...RING, RETAINING...RING, RETAINING
-
98408-826 SCREW, CAPSCREW, CAP
-
103602-014 CALIPER, BRAKE - ASSEMBLY (INC. 11-18)CALIPER, BRAKE - ASSEMBLY (INC. 11-18)
-
112602-411 ...SEAL...SEAL
-
122602-198 ...BEARING...BEARING
-
132602-280 ...RING, RETAINING...RING, RETAINING
-
142602-643 ...PISTON SET...PISTON SET
-
153602-017 ...PAD, BRAKE - SET...PAD, BRAKE - SET
-
162602-409 ...PIN, RETAINING...PIN, RETAINING
-
172602-408 ...FITTING, BLEED...FITTING, BLEED
-
182602-644 ...SCREW, CAP...SCREW, CAP
-
193602-020 DISC, BRAKEDISC, BRAKE
-
202602-629 RING, RETAININGRING, RETAINING
-
211702-409 SHAFT, DRIVEN - ASSEMBLY (INC. 22-25)SHAFT, DRIVEN - ASSEMBLY (INC. 22-25)
-
222602-884 ...SHAFT, DRIVEN...SHAFT, DRIVEN
-
232602-422 ...HUB, BEARING...HUB, BEARING
-
242602-247 ...BEARING...BEARING
-
252602-236 ...RING, RETAINING...RING, RETAINING
-
260616-032 O-RINGO-RING
-
270726-405 CLUTCH, DRIVEN - ASSEMBLYCLUTCH, DRIVEN - ASSEMBLY
-
280648-819 SHAFT, STUBSHAFT, STUB
-
290123-053 WASHER, FLATWASHER, FLAT
-
300123-019 WASHER, FLATWASHER, FLAT
-
318408-881 SCREW, CAPSCREW, CAP
