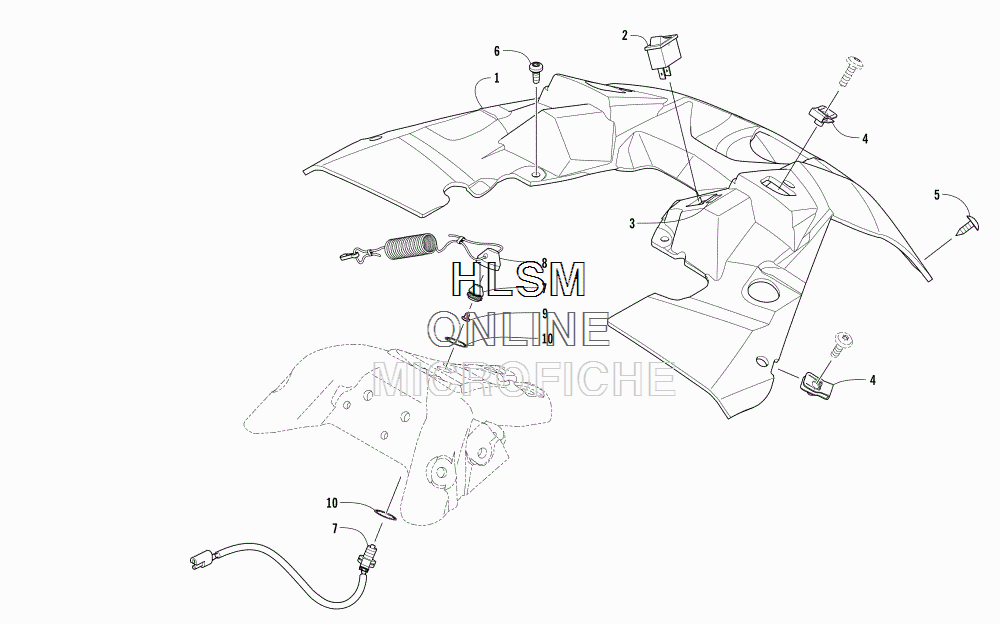

CONSOLE ASSEMBLY для Arctic Cat ZR 6000 R SX GREEN - 2017 года выпуска
-
№АртикулНазвание
-
17606-433 CONSOLE, UPPER - BLACKCONSOLE, UPPER - BLACK
-
20609-947 SWITCH, HANDWARMER/THUMBWARMERSWITCH, HANDWARMER/THUMBWARMER
-
31621-286 DECAL, SWITCH - "ON/OFF"DECAL, SWITCH - "ON/OFF"
-
40423-577 CLIP, U-NUTCLIP, U-NUT
-
52623-166 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
60423-538 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
70709-071 TETHER SWITCH (INC. 8-9)TETHER SWITCH (INC. 8-9)
-
80709-055 ...TETHER CORD W/ SCREW (INC. 9)...TETHER CORD W/ SCREW (INC. 9)
-
90623-338 ......SCREW, SELF-TAPPING......SCREW, SELF-TAPPING
-
100123-985 WASHER, INTERNAL TOOTH LOCKWASHER, INTERNAL TOOTH LOCK
