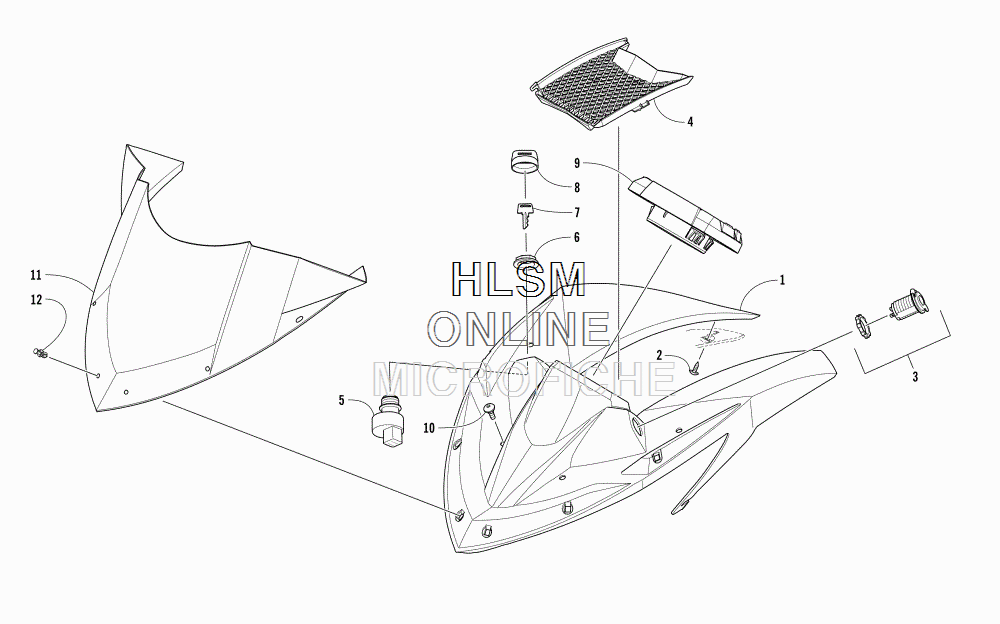

WINDSHIELD AND INSTRUMENTS ASSEMBLIES для Arctic Cat XF 9000 HIGH COUNTRY LTD 141 BLACK - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    6606-628 POD, INSTRUMENT - BLACK
    POD, INSTRUMENT - BLACK
  • 2
    2623-166 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 3
    0641-897 OUTLET, ACCESSORY (12V)
    OUTLET, ACCESSORY (12V)
  • 4
    7606-266 VENT, POD
    VENT, POD
  • 5
    0609-911 SWITCH, IGNITION (INC. 6-8)
    SWITCH, IGNITION (INC. 6-8)
  • 6
    0430-050 ...NUT, RETAINING
    ...NUT, RETAINING
  • 7
    0430-042 ...KEY, IGNITION - Y SERIES (LEFT BLANK)
    ...KEY, IGNITION - Y SERIES (LEFT BLANK)
  • 7
    0430-043 ...KEY, IGNITION - Z SERIES (RIGHT BLANK)
    ...KEY, IGNITION - Z SERIES (RIGHT BLANK)
  • 8
    0430-054 ...COVER, KEY
    ...COVER, KEY
  • 9
    0720-041 GAUGE, SPEEDOMETER
    GAUGE, SPEEDOMETER
  • 10
    2623-042 SCREW, SHOULDER
    SCREW, SHOULDER
  • 11
    6606-702 WINDSHIELD - LOW BLACK
    WINDSHIELD - LOW BLACK
  • 12
    2623-235 RIVET, PLASTIC - REINSTALLABLE
    RIVET, PLASTIC - REINSTALLABLE
