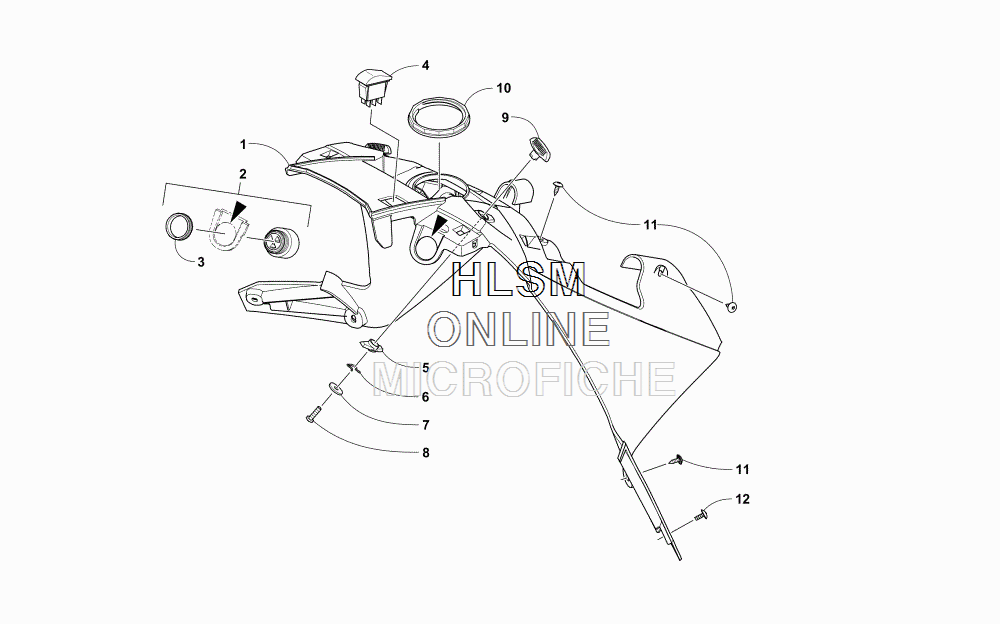

CONSOLE ASSEMBLY для Arctic Cat XF 9000 HIGH COUNTRY LTD 141 BLACK - 2017 года выпуска
-
№АртикулНазвание
-
16706-221 CONSOLE - BLACKCONSOLE - BLACK
-
20630-243 ALARM, REVERSE (INC. 3)ALARM, REVERSE (INC. 3)
-
30630-017 ...RING, RETAINING...RING, RETAINING
-
40609-836 SWITCH, HEATED SEATSWITCH, HEATED SEAT
-
57606-296 PLATE, BACKINGPLATE, BACKING
-
62623-155 CLIP, RETAININGCLIP, RETAINING
-
72623-171 WASHER, FLATWASHER, FLAT
-
81623-933 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
97606-265 KNOB, HOLDDOWNKNOB, HOLDDOWN
-
106606-390 NUT, RETAININGNUT, RETAINING
-
112623-166 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
122623-164 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
