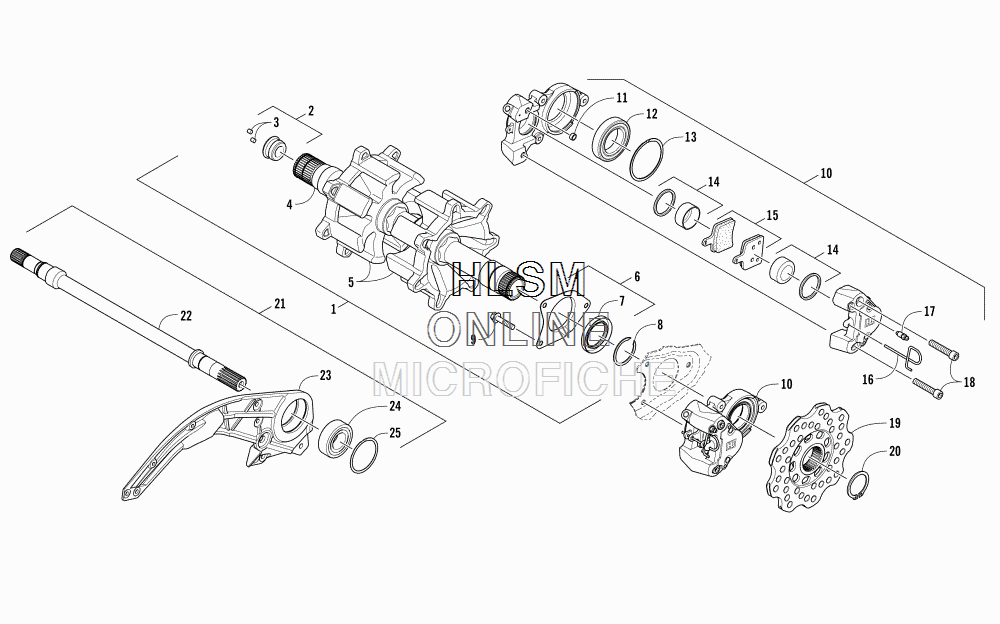

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat XF 9000 HIGH COUNTRY LTD 141 BLACK - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    0728-219 TRACK, DRIVE - ASSEMBLY (INC. 2-8)
    TRACK, DRIVE - ASSEMBLY (INC. 2-8)
  • 2
    1702-243 ...PLUG, MAGNETIC - ASSEMBLY (INC. 3)
    ...PLUG, MAGNETIC - ASSEMBLY (INC. 3)
  • 3
    2602-211 ......MAGNET
    ......MAGNET
  • 4
    2602-740 ...DRIVESHAFT
    ...DRIVESHAFT
  • 5
    2602-617 ...SPROCKET, DRIVE
    ...SPROCKET, DRIVE
  • 6
    1702-206 ...PLATE, RETAINING - SEAL (INC. 7)
    ...PLATE, RETAINING - SEAL (INC. 7)
  • 7
    1602-344 ......SEAL
    ......SEAL
  • 8
    2602-233 ...RING, RETAINING
    ...RING, RETAINING
  • 9
    8408-831 SCREW, CAP
    SCREW, CAP
  • 10
    2602-486 CALIPER, BRAKE - ASSEMBLY (INC. 11-18)
    CALIPER, BRAKE - ASSEMBLY (INC. 11-18)
  • 11
    2602-411 ...SEAL
    ...SEAL
  • 12
    2602-198 ...BEARING
    ...BEARING
  • 13
    2602-280 ...RING, RETAINING
    ...RING, RETAINING
  • 14
    2602-410 ...PISTON SET
    ...PISTON SET
  • 15
    1702-245 ...PAD, BRAKE - SET (INC. 16)
    ...PAD, BRAKE - SET (INC. 16)
  • 16
    2602-409 ......PIN, RETAINING
    ......PIN, RETAINING
  • 17
    2602-408 ...FITTING, BLEED
    ...FITTING, BLEED
  • 18
    2602-412 ...SCREW, CAP
    ...SCREW, CAP
  • 19
    2602-720 DISC, BRAKE
    DISC, BRAKE
  • 20
    2602-629 RING, RETAINING
    RING, RETAINING
  • 21
    1702-460 SHAFT, DRIVEN - ASSEMBLY (INC. 22-25)
    SHAFT, DRIVEN - ASSEMBLY (INC. 22-25)
  • 22
    2602-971 ...SHAFT, DRIVEN
    ...SHAFT, DRIVEN
  • 23
    2707-751 ...SUPPORT, CHASSIS - LEFT
    ...SUPPORT, CHASSIS - LEFT
  • 24
    2602-524 ...BEARING
    ...BEARING
  • 25
    2602-729 ...RING, RETAINING
    ...RING, RETAINING
