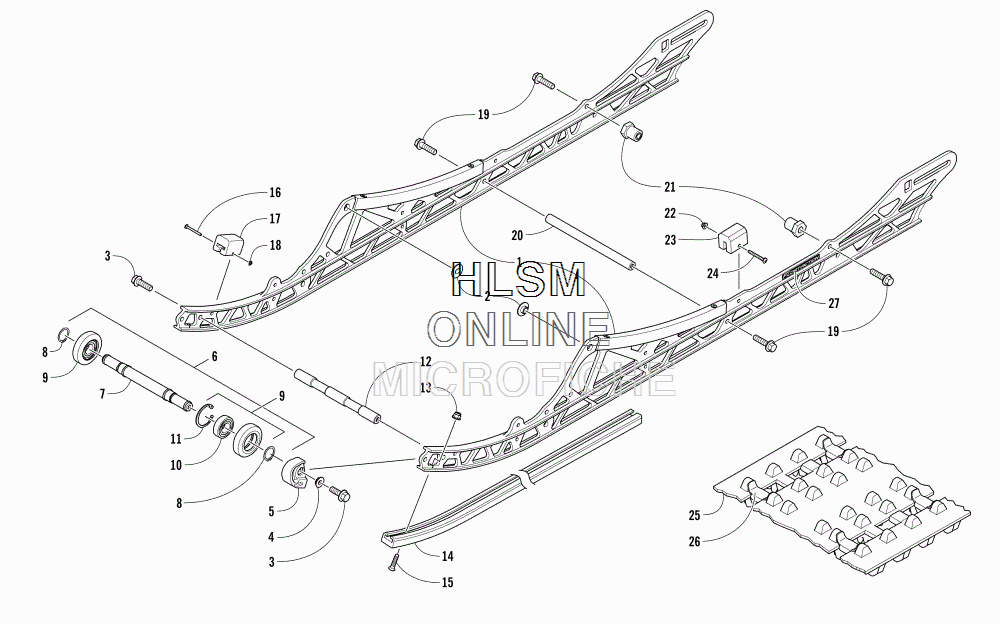

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat XF 9000 HIGH COUNTRY LTD 141 BLACK - 2017 года выпуска

  • №
    Артикул
    Название
  • -
    3704-084 COMPLETE SKID FRAME ASSEMBLY
    COMPLETE SKID FRAME ASSEMBLY
  • 1
    3704-070 RAIL, FORMED - BLACK
    RAIL, FORMED - BLACK
  • 2
    3604-266 INSERT, RAIL
    INSERT, RAIL
  • 3
    8408-831 SCREW, CAP
    SCREW, CAP
  • 4
    3604-928 SPACER
    SPACER
  • 5
    4604-214 END CAP, SLIDE RAIL
    END CAP, SLIDE RAIL
  • 6
    2704-964 AXLE, IDLER WHEEL - ASSEMBLY (INC. 7-11)
    AXLE, IDLER WHEEL - ASSEMBLY (INC. 7-11)
  • 7
    3604-921 ...AXLE
    ...AXLE
  • 8
    1423-001 ...RING, RETAINING
    ...RING, RETAINING
  • 9
    3604-844 ...WHEEL, IDLER - BLACK (INC. 10-11)
    ...WHEEL, IDLER - BLACK (INC. 10-11)
  • 10
    3604-033 ......BEARING
    ......BEARING
  • 11
    0623-946 ......RING, RETAINING
    ......RING, RETAINING
  • 12
    3604-630 AXLE
    AXLE
  • 13
    8047-366 NUT, LOCK
    NUT, LOCK
  • 14
    4604-250 WEARSTRIP, SLIDE RAIL
    WEARSTRIP, SLIDE RAIL
  • 15
    0123-859 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    0123-767 RIVET, SOLID
    RIVET, SOLID
  • 17
    0104-631 PAD, SHOCK
    PAD, SHOCK
  • 18
    0123-766 NUT, PUSH
    NUT, PUSH
  • 19
    8408-826 SCREW, CAP
    SCREW, CAP
  • 20
    4604-252 AXLE
    AXLE
  • 21
    3604-635 BUSHING, STOP
    BUSHING, STOP
  • 22
    8427-502 NUT, LOCK
    NUT, LOCK
  • 23
    1604-429 PAD, SHOCK
    PAD, SHOCK
  • 24
    8470-540 SCREW, MACHINE
    SCREW, MACHINE
  • 25
    2602-166 TRACK ASSEMBLY (INC. 26)
    TRACK ASSEMBLY (INC. 26)
  • 26
    2602-386 ...CLIP, GUIDE
    ...CLIP, GUIDE
  • 27
    3621-338 DECAL, "FLOAT ACTION"
    DECAL, "FLOAT ACTION"
