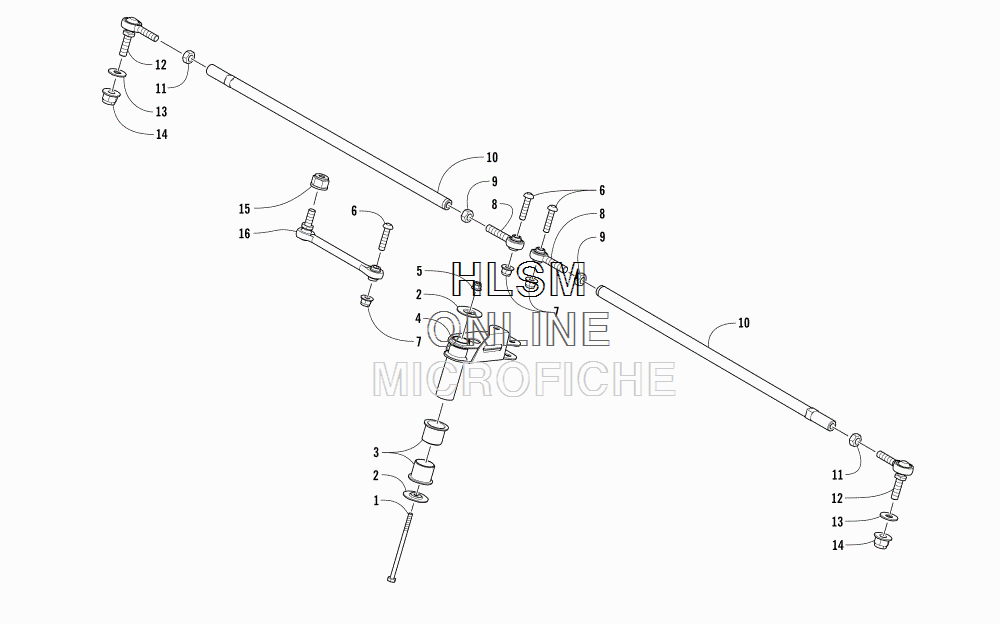

TIE ROD ASSEMBLY для Arctic Cat XF 9000 HIGH COUNTRY LTD 141 BLACK - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    8402-600 SCREW, CAP
    SCREW, CAP
  • 2
    1623-807 WASHER
    WASHER
  • 3
    1605-161 BUSHING
    BUSHING
  • 4
    1705-488 ARM, STEERING
    ARM, STEERING
  • 5
    8427-602 NUT, LOCK
    NUT, LOCK
  • 6
    2623-026 SCREW, MACHINE
    SCREW, MACHINE
  • 7
    8427-802 NUT
    NUT
  • 8
    1605-032 BALL JOINT, TIE ROD - RIGHT-HAND THREAD
    BALL JOINT, TIE ROD - RIGHT-HAND THREAD
  • 9
    8420-002 NUT - RIGHT-HAND THREAD
    NUT - RIGHT-HAND THREAD
  • 10
    1605-033 TUBE, TIE ROD - SPINDLE
    TUBE, TIE ROD - SPINDLE
  • 11
    0423-013 NUT - LEFT-HAND THREAD
    NUT - LEFT-HAND THREAD
  • 12
    1605-019 BALL JOINT, STEERING - LEFT-HAND THREAD
    BALL JOINT, STEERING - LEFT-HAND THREAD
  • 13
    1623-803 WASHER
    WASHER
  • 14
    8427-002 NUT, LOCK
    NUT, LOCK
  • 15
    8422-002 NUT, LOCK
    NUT, LOCK
  • 16
    1605-109 DRAGLINK, STEERING - 106 MM
    DRAGLINK, STEERING - 106 MM
