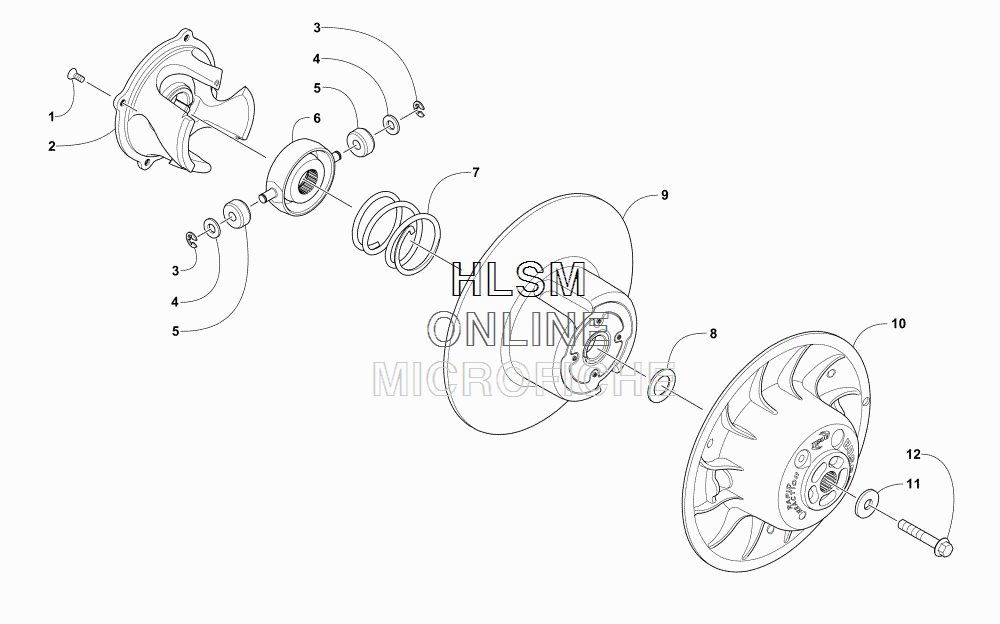

DRIVEN CLUTCH для Arctic Cat XF 9000 HIGH COUNTRY LTD 141 BLACK - 2017 года выпуска

  • №
    Артикул
    Название
  • -
    0726-396 CLUTCH, DRIVEN - ASSEMBLY
    CLUTCH, DRIVEN - ASSEMBLY
  • 1
    0648-875 SCREW, MACHINE
    SCREW, MACHINE
  • 2
    0648-901 CAM, DRIVEN
    CAM, DRIVEN
  • 3
    0648-701 RING, RETAINING
    RING, RETAINING
  • 4
    0648-700 WASHER, THRUST
    WASHER, THRUST
  • 5
    0648-842 ROLLER
    ROLLER
  • 6
    0648-841 SPIDER
    SPIDER
  • 7
    0648-860 SPRING, DRIVEN CLUTCH
    SPRING, DRIVEN CLUTCH
  • 8
    0648-850 WASHER, SHIM (.090 IN.)
    WASHER, SHIM (.090 IN.)
  • 8
    0648-849 WASHER, SHIM (.030 IN.)
    WASHER, SHIM (.030 IN.)
  • 8
    0648-852 WASHER, SHIM (.015 IN.)
    WASHER, SHIM (.015 IN.)
  • 9
    0748-776 SHEAVE, MOVEABLE
    SHEAVE, MOVEABLE
  • 10
    0748-040 SHEAVE, STATIONARY
    SHEAVE, STATIONARY
  • 11
    2623-120 WASHER
    WASHER
  • 12
    8409-060 SCREW, CAP
    SCREW, CAP
